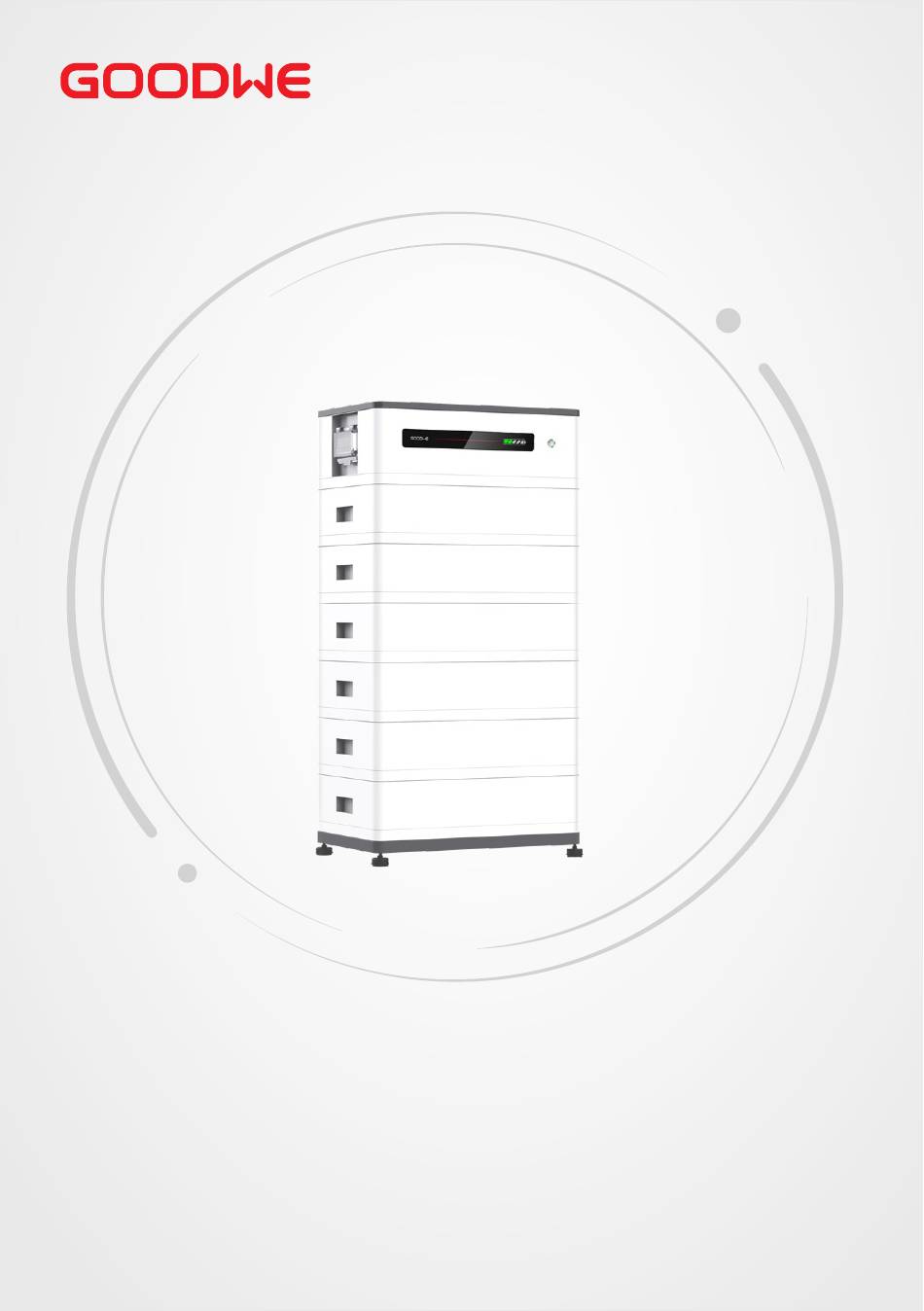

- Page 1 User Manual Rechargeable Li-ion Battery System Lynx Home FH Series US V1.0-2022-11-01...
- Page 2 Copyright©GoodWe Technologies Co.,Ltd. 2022. All rights reserved. No part of this manual can be reproduced or transmitted to the public platform in any form or by any means without the prior written authorization of GoodWe. Trademarks and other GOODWE trademarks are trademarks of GoodWe Technologies Co.,Ltd.
-
Page 3: Table Of Contents
User Manual V1.0-2022-11-01 CONTENT Content 01 About This Manual ............. 01 1.1 Applicable Model ..................01 1.2 Target Audience ....................01 1.3 Symbol Definition ..................01 1.4 Updates ......................01 2 IMPORTANT SAFETY INSTRUCTIONS ........02 2.1 General Safety ....................02 2.2 Battery Safety ....................02 2.3 Emergency Measures ...................04 03 Product Introduction ............ - Page 4 User Manual V1.0-2022-11-01 CONTENT 7.4 Indicator Status ....................26 7.4.1 Normal Status ......................26 7.4.2 Alarming Status ..................... 27 7.4.3 Faulty Status ......................27 08 Maintenance ..............29 8.1 Power OFF the Battery System ..............29 8.2 Routine Maintenance ...................29 09 Parameters ................ 30...
-
Page 5: About This Manual
All the installers and users have to be familiar with the product features, functions, and safety precautions. This manual is subject to update without notice. For more product details and latest documents, visit https://en.goodwe.com. 1.1 Applicable Model This manual applies to the listed models below: •... -
Page 6: Important Safety Instructions
• Strictly follow the installation, operation, and configuration instructions in this manual. The manufacturer shall not be liable for equipment damage or personal injury if you do not follow the instructions. For more warrant information, please visit: https://en.goodwe.com/ warranty. 2.2 Battery Safety DANGER •... - Page 7 02 Safety Precaution User Manual V1.0-2022-11-01 DANGER • The battery equipment is heavy. Please equip the corresponding personnel according to its weight, so that the equipment does not exceed the weight range of the human body can carry, and cause personnel injury. •...
-
Page 8: Emergency Measures
02 Safety Precaution User Manual V1.0-2022-11-01 2.3 Emergency Measures Battery Electrolyte Leakage If the battery module leaks electrolyte, avoid contact with the leaking liquid or gas. The electrolyte is corrosive. It will cause skin irritation or chemical burn to the operator. Anyone contact the leaked substance accidentally has to do as following: •... -
Page 9: Product Introduction
03 Product Introduction User Manual V1.0-2022-11-01 03 Product Introduction 3.1 Product Overview Intended usage The battery system, which consists of a power control unit (PCU for short) and battery modules, can store and release the electric energy according to the requirements of the solar energy storage system. -
Page 10: Application Scenarios
Battery AC circuit breaker breaker Battery Loads Battery system 1 system N Approved inverter list Scan the QR code below or visit the official website to get the Approved Inverter List matched with the Battery System. GoodWe Inverter GE Inverter... -
Page 11: Appearance
03 Product Introduction User Manual V1.0-2022-11-01 3.3 Appearance Battery system appearance NOTICE • Ensure that the PCU is installed above the battery modules. Do not install any battery modules above the PCU. • This manual will show you the installation and electrical connection of 6 battery modules. -
Page 12: Dimensions
03 Product Introduction User Manual V1.0-2022-11-01 Power control unit appearance Right View Left View Front View Parts Ventilation valve Cable hole Air switch SOC indicator Button indicator Battery serial connection interface 3.4 Dimensions... -
Page 13: Check And Storage
04 Check and Storage User Manual V1.0-2022-11-01 04 Check and Storage 4.1 Check Before Receiving Check the following items before receiving the product. 1. Check the outer packing box for damage, such as holes, cracks, deformation, and other signs of equipment damage. Do not unpack the package and contact the supplier as soon as possible if any damage is found. -
Page 14: Storage
04 Check and Storage User Manual V1.0-2022-11-01 Battery module Battery-Battery Battery x1 Spacing pin x2 4.3 Storage If the equipment is not to be installed or used immediately, please ensure that the storage environment meets the following requirements: 1. Do not unpack the outer packing box or throw the desiccant away. 2. -
Page 15: System Installation
05 System Installation User Manual V1.0-2022-11-01 5 System Installation 5.1 Installation Requirements Installation Environment Requirements 1. Do not install the equipment in a place near flammable, explosive, or corrosive materials. 2. Do not install the equipment in a place that is easy to touch, especially within children’s reach. High temperature exists when the equipment is working. -
Page 16: Installing The Battery System
05 System Installation User Manual V1.0-2022-11-01 Mounting Support Requirements • The mounting support shall be nonflammable and fireproof. • Install the equipment on a surface that is solid enough to bear the product weight. • Put the battery system near the wall and install the locking brackets to prevent the battery from falling down. - Page 17 05 System Installation User Manual V1.0-2022-11-01 NOTICE • Keep the fastening screws after opening the top cover of PCU for later usage. • If you need to open the top cover of PCU in rain or snow, please take protective measures to prevent rain or snow from entering the maintenance chamber.
- Page 18 05 System Installation User Manual V1.0-2022-11-01...
- Page 19 05 System Installation User Manual V1.0-2022-11-01...
-
Page 20: Electrical Connection
06 Electrical Connection User Manual V1.0-2022-11-01 6 Electrical Connection 6.1 Safety Precaution DANGER INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR ELECTRIC SHOCK • Perform electrical connections, including operations, cables, and component specifications in compliance with local laws and regulations ANSI/NFPA 70. •... -
Page 21: Electrical Connection
06 Electrical Connection User Manual V1.0-2022-11-01 6.2 Electrical Connection NOTICE • A max of eight battery systems can be parallel connected in one energy storage system. Ensure that the usable energy of each battery system is the same. • Install the terminal resistor to the COM3 port of Battery system 1, which is connected to the inverter directly. -
Page 22: Installing The Wiring Conduit
06 Electrical Connection User Manual V1.0-2022-11-01 PIN Definition Silk Print Recommended Cable Dimension Connecting the PE cable • The recommended specification: copper, Grounding point temperature105℃ (221°F), cross-sectional area 10AWG. Connecting the Power cable • The recommended specification: copper, Power terminal temperature105℃... -
Page 23: Connecting The Communication Cable
06 Electrical Connection User Manual V1.0-2022-11-01 Diameter for the PCU routing hole 6.2.2 Connecting the Communication Cable NOTICE • Connect the PE cable first before installing the equipment. Disconnect the PE cable before dismantling the equipment. • Prepare the PE cable by Users. The cable should meet standards for outdoor use. •... -
Page 24: Connecting The Power Cable
06 Electrical Connection User Manual V1.0-2022-11-01 6.2.3 Connecting the Power Cable WARNING • Connect the DC cables with the delivered terminals. The manufacturer shall not be liable for the damage if other terminals are used. • Power off the battery system before connecting the power cable to avoid high voltage danger. - Page 25 06 Electrical Connection User Manual V1.0-2022-11-01 RJ45 Modular Connector CAN Communication port COM1 COM2 COM3 Description COM1: connects to the BMS communication CAN3H CAN3H CAN3H port on the inverter, for communication with the inverter; or connects to the parallelized battery system for communication. CAN3L CAN3L CAN3L...
-
Page 26: Connecting The Terminal Resistor
06 Electrical Connection User Manual V1.0-2022-11-01 6.2.5 Connecting the Terminal Resistor NOTICE If the terminal resistor is not installed, the Interlock Failure will occur, and the system cannot work correctly. Step 1: Disassemble the waterproof module. Step 2: Install the terminal resistor. Tighten the waterproof module. NOTICE •... -
Page 27: System Operation
07 Equipment Commissioning User Manual V1.0-2022-11-01 07 System Operation 7.1 Check Before Power ON Check the following items before power on to avoid the battery system being damaged. Check Item The equipment is firmly installed in a clean place where is well-ventilated and easy to operate. - Page 28 07 Equipment Commissioning User Manual V1.0-2022-11-01 Parallel Connected Battery System Step 1: (Optional) Turn on the breaker between the inverter and the battery system. Step 2: Turn on the breakers between the battery systems. Step 3: Turn on the air switches of the battery systems in turn. Step 4: Power on the inverter in the system following the instructions in the user manual of the inverter.
-
Page 29: Setting The Battery Parameters
PV Wi-Fi SSID: Solar-WiFi*** Master App Password: 12345678 Set battery model via the PV Master App. Select Battery Model Select “LX F-H-US” on “Select GoodWe LX F-H-US Battery Model” window via the PV Master App. PYLON AlpahESS eSTORE DYNESS NOTICE "Battery Communication Failure"... -
Page 30: Indicator Status
07 Equipment Commissioning User Manual V1.0-2022-11-01 7.4 Indicator Status Button Indicator Indicator Button Indicator Status Green Standby or Working Alarming or Faulty 7.4.1 Normal Status Button Indicator SOC Indicator Description SOC<5% 5%≤SOC<25% Idle: green light blink 25%≤SOC<50% 2 times Standby: green light blink 1 time 50%≤SOC<75% Working: steady green... -
Page 31: Alarming Status
07 Equipment Commissioning User Manual V1.0-2022-11-01 7.4.2 Alarming Status Button SOC Indicator Alarm Solutions Indicator Battery Restart the battery. Contact the After Sale Overvoltage Service if the problem could not be solved. Long press the button for 5 seconds to start the Battery battery under charging conditions. - Page 32 08 Maintenance User Manual V1.0-2022-11-01 Power off and wait for 2 hours. Contact Low Temperature the After Sale Service if the problem could not be solved. Inconsistent Contact the After Sale Service if the Software Version problem could not be solved. Restart the battery.
-
Page 33: Maintenance
08 Maintenance User Manual V1.0-2022-11-01 08 Maintenance 8.1 Power OFF the Battery System DANGER INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR ELECTRIC SHOCK • Power off the battery system before operations and maintenance. Otherwise, the equipment may be damaged or electric shocks may occur. •... -
Page 34: Parameters
09 Parameters User Manual V1.0-2022-11-01 09 Parameters Technical Parameters LX F9.6-30 LX F12.8-30 LX F16.0-30 LX F19.2-30 Usable Energy (kWh)* 12.8 16.0 19.2 Battery Module LX F3.2-30: 64V 50Ah 3.2 kWh Number of Modules Cell Type LFP(LiFePO4) Cell Configuration 60S1P 80S1P 100S1P 120S1P... - Page 35 Official Website PV Master App GoodWe Technologies Co.,Ltd. No. 90 Zijin Rd., New District, Suzhou, 215011, China www.goodwe.com service@goodwe.com Contact Information...
