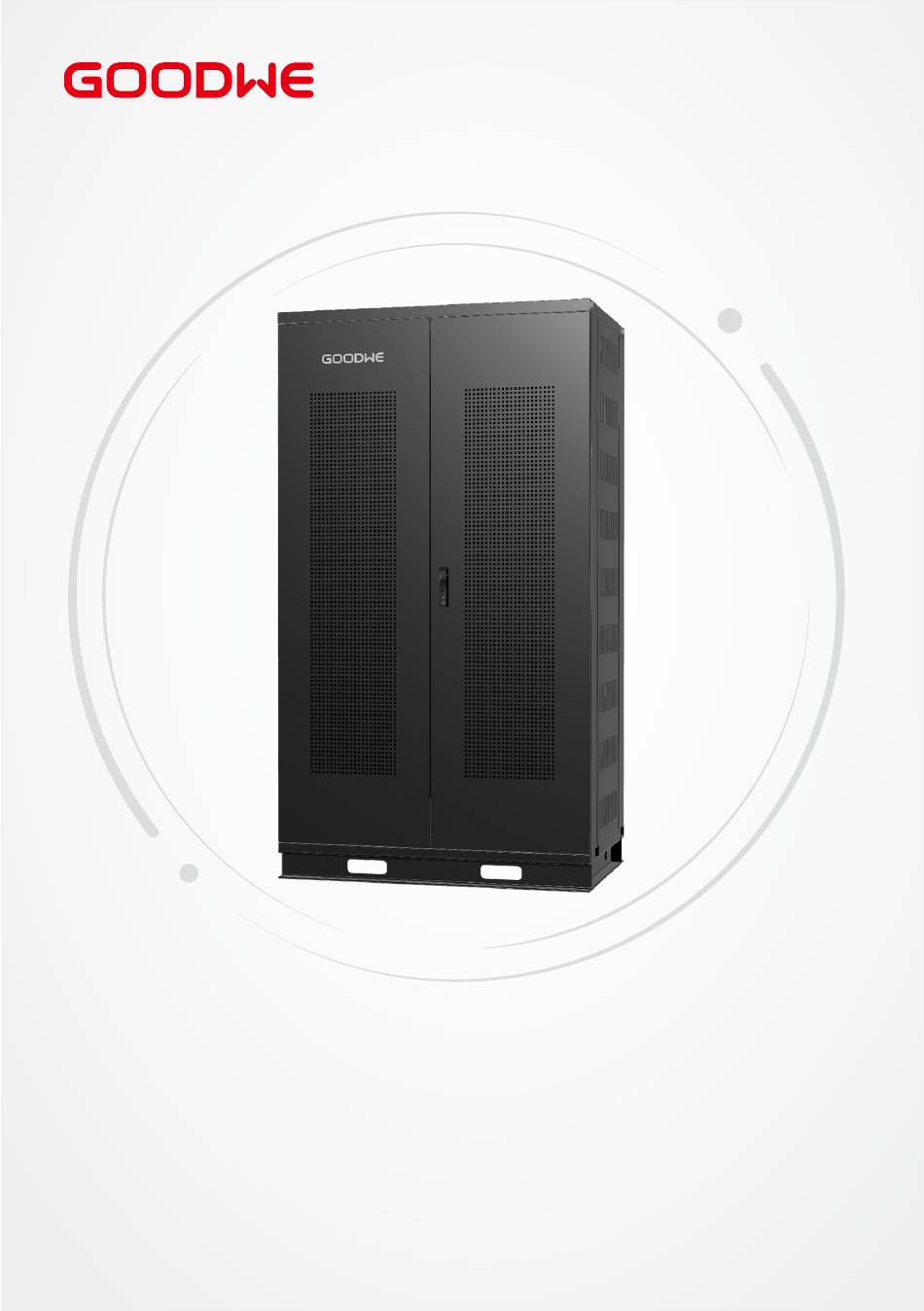

- Page 1 User Manual Rechargeable Li-ion Battery System Lynx C Series V 1.0 2022-10-15...
- Page 2 Copyright ©GoodWe Technologies Co., Ltd., 2022. All rights reserved No part of this manual can be reproduced or transmitted to the public platform in any form or by any means without the prior written authorization of GoodWe Technologies Co., Ltd. Trademarks and other GOODWE trademarks are trademarks of GoodWe Technologies Co.,Ltd.
-
Page 3: Table Of Contents
CONTENT User Manual V1.0-2022-10-15 Content About This Manual ..............IV 1.1 Applicable Model ....................IV 1.2 Target Audience ....................IV 1.3 Symbol Definition ....................IV 1.4 Updates .......................IV Safety Precaution ..............01 2.1 General Safety ....................01 2.2 Installation Precaution ..................01 2.3 Maintenance Precaution .................. 03 2.4 Battery Safety .................... - Page 4 CONTENT User Manual V1.0-2022-10-15 System Operation ..............20 7.1 Check before Power ON ..................20 7.2 Power ON ......................20 7.3 Indicator ......................21 7.4 Parameter Setting ....................21 7.5 Power OFF ......................22 Maintenance ................ 23 Parameters ................24...
-
Page 5: About This Manual
About This Manual This manual describes the product information, installation, electrical connection, commissioning, troubleshooting and maintenance of Lynx C Series Rechargeable Li-ion Battery System for Commercials and Industries (hereinafter referred to as the Lynx C BS in short). Read through this manual before installing and operating the product. -
Page 6: Safety Precaution
• Strictly follow the installation, operation, and configuration instructions in this manual. The manufacturer shall not be liable for equipment damage or personal injury if you do not follow the instructions. For more warranty details, visit:https://en.goodwe.com/warranty. 2.2 Installation Precaution WARNING •... - Page 7 Safety Precaution User Manual V1.0-2022-10-15 DANGER • All labels and warning marks should be visible after the installation. Do not scrawl, damage, or cover any label on the device. • Warning labels on the BS are as follows. Symbol Description Symbol Description Symbol...
-
Page 8: Maintenance Precaution
• Restrictions of Hazardous Substances Directive 2011/65/EU and (EU) 2015/863 (RoHS) • Waste Electrical and Electronic Equipment 2012/19/EU • Registration, Evaluation, Authorization and Restriction of Chemicals (EC) No 1907/2006 (REACH) You can download the EU Declaration of Conformity on the official website: https://en.goodwe. com. -
Page 9: Product Introduction
• This manual is mainly about product introduction, application scenarios, installation, commissioning, maintaining and technical parameters of the Lynx C BS. • The Lynx C BS is mainly composed of Lynx C series battery modules, PCU and battery cabinet. • Below are the inverters applicable in the Lynx C BS:... -
Page 10: Battery Cabinet
Product Introduction User Manual V1.0-2022-10-15 3.2 Battery Cabinet Front View Right View Left View Length Width Height Handle Slot BS Routing Hole Model Length (mm) Width (mm) Height (mm) LX C101-10 1155 1650 LX C120-10 LX C138-10 1155 2065 LX C156-10... -
Page 11: Pcu
Product Introduction User Manual V1.0-2022-10-15 3.3 PCU Silk Print Parts Description Battery positive To connect with the positive polarity of the battery terminal module. DC circuit breaker Used when the BS is self-powered. AC circuit breaker Used when the BS requires external power supply. Main circuit The main circuit breaker for the BS. -
Page 12: Indicator
Product Introduction User Manual V1.0-2022-10-15 3.4 Indicator Green Description The BS is in operation. SINGLE FLASH The BS is in idle status. DOUBLE FLASHES The BS is on standby. SINGLE FLASH Slight alarm DOUBLE FLASHES Medium alarm A fault has occurred. 3.5 Battery Module Parts Description... -
Page 13: Nameplate
Product Introduction User Manual V1.0-2022-10-15 3.6 Nameplate The nameplate is for reference only. GOODWE trademark, product type, and product model Technical parameters Safety symbols and certification marks Contact information and serial number... -
Page 14: Storage And Package
User Manual V1.0-2022-10-15 04 Storage and Package Storage and Package 4.1 Storage Environment If the equipment is not to be installed or used immediately, please ensure that the storage environment meets the following requirements: • Pack the equipment into a packing box and put some desiccant in the box before sealing. •... - Page 15 User Manual V1.0-2022-10-15 Storage and Package Battery Cabinet and Accessories Power output Battery cabinet x 1 AC connector x 1 COM connector x 1 connector x 1 Battery power Battery power Battery power Battery power connecting bar A x 1 connecting bar B x 1 connecting bar C x 1 connecting bar D x 1...
-
Page 16: System Installation
User Manual V1.0-2022-10-15 System Installation System Installation 5.1 Installation Environment • Install the BS on a flat ground with sufficient bearing capacity. Increase the bearing capacity and flatness of the ground by laying the foundation, adding bearing plates, and so on. •... -
Page 17: Angle Requirements
System Installation User Manual V1.0-2022-10-15 5.3 Angle Requirements 5.4 Moving the BS CAUTION Move the BS to the site before installation. Follow the instructions below to avoid personal injury or equipment damage. 1. Consider the weight of the equipment before moving it. Assign enough personnel to move the equipment to avoid personal injury. - Page 18 User Manual V1.0-2022-10-15 System Installation Step 1 Use the fork lift to move the battery cabinet to the installing place. Step 2 Open the battery cabinet and take out the accessory package. Step 3 Use the hook to move the battery module to the fork lift or elevating devices. Step 4 Use the fork lift or the elevating devices to install each battery module into the battery cabinet from bottom to top.
- Page 19 System Installation User Manual V1.0-2022-10-15 30-100mm 4.5-6N·m...
-
Page 20: Electrical Connection
User Manual V1.0-2022-10-15 Electrical Connection Electrical Connection WARNING • Ensure all switches of PCU and its upstream switches are disconnected before any electrical connections. • Place the cables at least 30mm away from the heating components or heat sources, otherwise the insulation layer of the cables may be aging or broken due to high temperature. -
Page 21: Connecting Battery Communication Cable
Electrical Connection User Manual V1.0-2022-10-15 6.2 Connecting Battery Communication Cable NOTICE • There are two communication ports on PCU: one is to connect the internal battery; the other is to connect the external inverter. • The communication cables and terminals are delivered with the product. •... -
Page 22: Connecting Inverter Communication Cable
User Manual V1.0-2022-10-15 Electrical Connection 6.3 Connecting Inverter Communication Cable NOTICE • The communication cables are required when the BS is used together with the inverters. • The communication terminals and cables of the BS are delivered with the product. Definition CANH CANL... -
Page 23: Connecting Inverter Power Cable
Electrical Connection User Manual V1.0-2022-10-15 10-12N·m 6.5 Connecting Inverter Power Cable NOTICE • The cross-sectional area of the power cable is 35mm (AWG 2); its outer diameter is 11- 13mm; the stripping length is 20±1mm and the crimping height is 9±0.2mm. Ensure the drawing force is more than 2500N after crimping. -
Page 24: Optional) Connecting Single Phase Ac Power Cable
User Manual V1.0-2022-10-15 Electrical Connection 20± 1mm Click Click 6.6 (Optional) Connecting Single Phase AC Power Cable NOTICE • The BS is able for DC self-powered, as well as Single Phase AC supplying externally. The single phase AC cable is used for external power supply. Choose whether to use it based on the actual demanding. -
Page 25: System Operation
System Commissioning User Manual V1.0-2022-10-15 System Operation 7.1 Check before Power ON Check the following items before power on to avoid the battery system being damaged. Check Item The equipment is firmly installed in a clean place where is well-ventilated and easy to operate. -
Page 26: Indicator
Select the battery model via PV Master after successfully connecting the BS and the inverter. APP installation and connection Set battery model via the PV Master App. Click “GOODWE(HIGEE)” and then select the proper battery model matching with the communication method on “Select Battery Model”... -
Page 27: Power Off
System Commissioning User Manual V1.0-2022-10-15 7.5 Power OFF Follow the steps to power off the BS to avoid the system being damaged. NOTICE Ensure there is no load on the DC side of the inverter and the circuit breaker between the BS and the inverter is disconnected before power off the BS. -
Page 28: Maintenance
User Manual V1.0-2022-10-15 Maintenance Maintenance DANGER Power off the Lynx C BS before operations and maintenance. Otherwise, the equipment may be damaged or electric shocks may occur. WARNING • Contact After-sales Service for help if you find any problems that may influence the BS or the hybrid inverter. -
Page 29: Parameters
Parameters User Manual V1.0-2022-10-15 Parameters Technical Data LX C 101-10 LX C120-10 Usable Energy (kWh)* 1 101.38 119.81 Battery Module LX C9.2-10: 38.4V 9.21kWh Number of Modules Cell Type LFP (LiFePO4) Cell Configuration 132S2P 156S2P Nominal Voltage (V) 422.4 499.2 Operating Voltage Range (V) 369.6~468.6 436.8~553.8... - Page 30 Parameters User Manual V1.0-2022-10-15 Technical Data LX C138-10 LX C156-10 Usable Energy (kWh)* 1 138.24 156.67 Battery Module LX C9.2-10: 38.4V 9.21kWh Number of Modules Cell Type LFP (LiFePO4) Cell Configuration 180S2P 204S2P Nominal Voltage (V) 652.8 Operating Voltage Range (V) 504.0~639.0 571.2~724.2 Nominal Dis-/Charge Current (A)
- Page 31 GoodWe Website GoodWe Technologies Co., Ltd. No. 90 Zijin Rd., New District, Suzhou, 215011, China www.goodwe.com Local Contacts service@goodwe.com...
