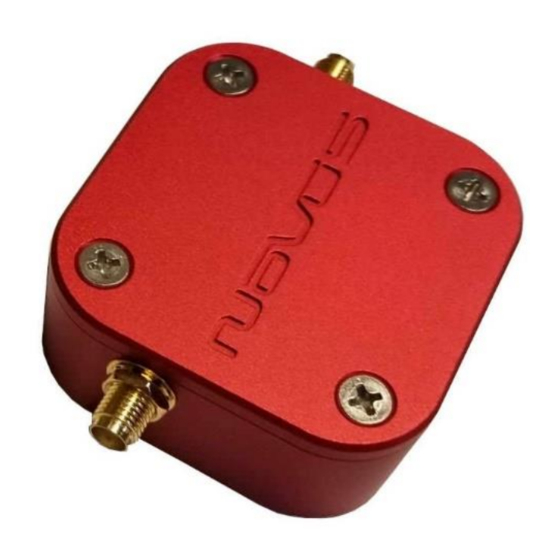

Novus PICOPOD NR7000 User Manual

10, 50,100 mhz gnss-locked ocxo reference with nmea, pps and auto-cal
Hide thumbs

Advertisement

Quick Links

Download this manual

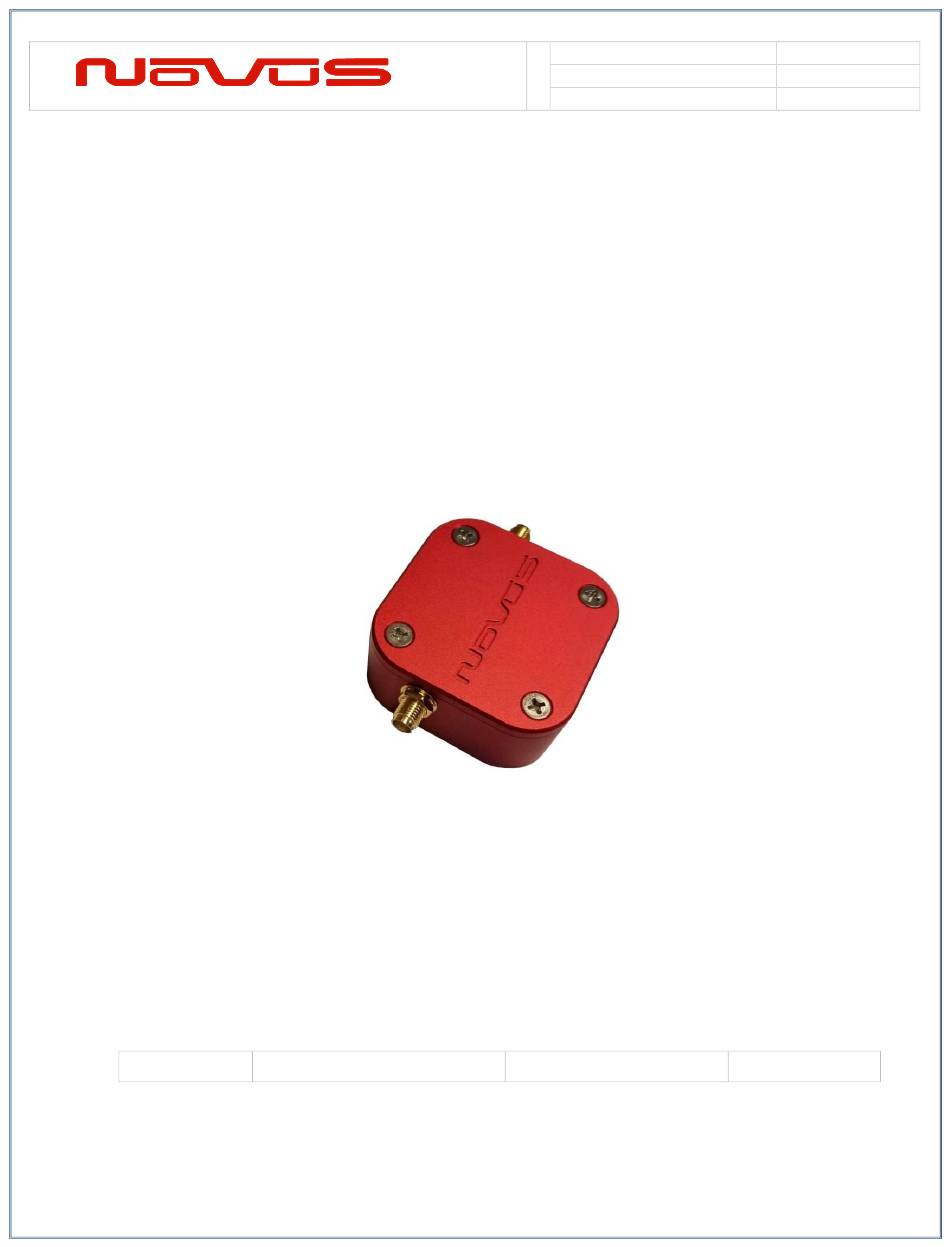

10, 50,100 MHz GNSS-Locked OCXO Reference
All information provided herein is the property of Novus Power Products
L.L.C. The information included may be reproduced without the permission
or prior approval of Novus Power Products L.L.C. for the purpose of
operating the equipment.
Page #:
1 of 24
NR7000
picoPOD
with NMEA, PPS and Auto-Cal
Users manual
Revision #:
Date:
www.novuspower.com
NR7000
B
102121

Advertisement

loading
Need help?

Need help?

Do you have a question about the PICOPOD NR7000 and is the answer not in the manual?

Questions and answers

Related Manuals for Novus PICOPOD NR7000

Summary of Contents for Novus PICOPOD NR7000

  • Page 1 NMEA, PPS and Auto-Cal All information provided herein is the property of Novus Power Products L.L.C. The information included may be reproduced without the permission or prior approval of Novus Power Products L.L.C. for the purpose of operating the equipment. Page #: 1 of 24 www.novuspower.com...
  • Page 2 Users manual NR7000 Revision #: Date: 102121 Contents 1.0 Summary ..................3 2.0 Inputs / Outputs ................7 2.1 GNSS Antenna ....................7 2.2 SAMTEC Connector (10-pin MiniMate) ............. 8 2.3 PPS (Pin) ....................... 8 2.4 10 MHz sine (SMA)..................9 3.0 Typical Phase Noise ...............
  • Page 3 Users manual NR7000 Revision #: Date: 102121 1.0 Summary The NR7000 is a GNSS-locked OCXO 10 MHz frequency reference with auto-calibration. It features a 10 MHz Sine output that is fault and transient protected. The unit is also available at 50 and 100 MHz The unit also provides a PPS and NMEA 0183 at full RS232 levels.
  • Page 4 Users manual NR7000 Revision #: Date: 102121 picoPod 10 MHz Phase Noise picoPod 100 MHz Phase Noise Page #: 4 of 24 www.novuspower.com...
  • Page 5 Users manual NR7000 Revision #: Date: 102121 OCXO Warm-up Characteristics Power required is 5.0Vdc to 5.5Vdc. This must be a low noise source. Local filtering is recommended. There is internal filtering but noise on the input power, while attenuated, can compromise phase noise.
  • Page 6 Users manual NR7000 Revision #: Date: 102121 The NR7000 continually monitors temperature and aging so that, when the unit goes into holdover or loses GNSS lock, the output frequency reverts to the last known locked frequency value. The calibration feature continually monitors the correction coefficients developed through GNSS timing information.
  • Page 7 MHz outputs on a LED on the PCB or via the RS232 link. 2.1 GNSS Antenna SMA female antenna connection. Provides internal 3.3VDC power at 45mA max. The Novus NA103 pole mount antenna or the Novus NA106 magnetic mount antenna are recommended for optimal performance.
  • Page 8 Users manual NR7000 Revision #: Date: 102121 VSWR 2.0 Max DC Input 2.8V - 6V Noise Figure <2.0dB Power Consumption 25mA (typ) 2.2 SAMTEC Connector (10-pin MiniMate) The NR7000 has a single locking 10 pin SAMTEC MiniMate 0.1” connector (part number IPL1-105-01-L-D-RA-K). 10 pin MiniMate pinout The reserved pins should not be connected.
  • Page 9 Users manual NR7000 Revision #: Date: 102121 2.4 10 MHz sine (SMA) 8 +-2 dBm into 50 Ohms. Page #: 9 of 24 www.novuspower.com...
  • Page 10 Users manual NR7000 Revision #: Date: 102121 3.0 Typical Phase Noise 10MHz Sine- Primary Output Offset Frequency (Hz) Typical (dBc / Hz) -102 -110 -140 -145 There are optional phase noise performance levels available - contact factory. Page #: 10 of 24 www.novuspower.com...
  • Page 11 Users manual NR7000 Revision #: Date: 102121 4.0 Built-in Test There are a number of power supplies in the design to meet special needs and noise reduction. Each supply is monitored and a power failure will be reported through the $GPNVS status strings.
  • Page 12 Users manual NR7000 Revision #: Date: 102121 5.0 Power The platform is designed to operate from +5Vdc to 5.5Vdc. The unit is also fused with a 5 Amp slow blow. Caution should be exercised when connecting power to the NR7000. The unit is reverse voltage protected with a TVS diode.
  • Page 13 Users manual NR7000 Revision #: Date: 102121 6.0 GNSS Function The receiver needs to be able to see at least four satellite vehicles (SVs) to obtain an accurate 3-D position fix. When travelling in a valley or built-up area, or under heavy tree cover, you will experience difficulty acquiring and maintaining a coherent satellite lock.
  • Page 14 Users manual NR7000 Revision #: Date: 102121 The receiver will now know that it lies somewhere on the circle of points produced where these two spheres intersect. When a third satellite is detected and a range determined, a third sphere intersects the area formed by the other two. This intersection occurs at just two points.
  • Page 15 Users manual NR7000 Revision #: Date: 102121 7.0 Programming Guide (STATUS Port) The NR7000-OG can accept user commands which will provide particular fault detection performance which may be customized by the user, and saved in non-volatile flash memory. If the user makes several changes which are intended to be kept between power off cycles, the command “$SAVEFLASH<CR><LF>”...
  • Page 16 Users manual NR7000 Revision #: Date: 102121 7.1 Status Commands Setting Command Response Description Query NVS<n> String. Useful for status output $STAT<n> on demand when user does not require regular <$GPNVS,1….> string output. STATUS OUTPUT $STAT1 Outputs current $GPNVS,1 string on demand. $STAT2 <$GPNVS,2….>...
  • Page 17 Users manual NR7000 Revision #: Date: 102121 7.2 Status Strings ($GPNVS) See Appendix C $GPNVS String Definitions for detailed explanation of $GPNVS status strings Page #: 17 of 24 www.novuspower.com...
  • Page 18 Users manual NR7000 Revision #: Date: 102121 8.0 Mechanical Page #: 18 of 24 www.novuspower.com...
  • Page 19 Users manual NR7000 Revision #: Date: 102121 9.0 Performance Technical Specifications 10 MHz sine 1.0 ±0.1 for 10 MHz. 0.5 ±Volts @ 100 MHz,50 Ohm - SMA Harmonics Less than -30 dBc Locked stability (AD) <~E-12 after 1000 seconds First year frequency stability ±100 ppb (long-term unlocked) Temperature stability ±100 ppb (unlocked)
  • Page 20 Tracking: -157 dBm Hot Start: -157 dBm Warm Start: -143 dBm Cold Start: -143 dBm Reacquisition: -157 dBm With Novus recommended antenna Antenna with LNA Antenna power 3.5 Vdc, < 35 ma (on center conductor) (factory configurable to 5 Vdc) Frequency...
  • Page 21 Weight <3 oz This document is copyright © October 21, 2021 Novus Power Products LLC. All rights reserved. This document is provided for information purposes only; contents are subject to change without notice. It is not warranted to be error-free, nor subject to any other warranties or conditions including implied warranties and conditions of merchantability or fitness for a particular purpose.
  • Page 22 1 (one) year to be free from defects caused by faulty materials or poor workmanship, provided: (a) NOVUS is notified in writing by Buyer of such defect prior to the expiration of the warranty period, and (b) after receiving return authorization –RMA- from NOVUS, the defective item is returned with transportation prepaid to NOVUS, Independence, Missouri, with transportation charges prepaid by Buyer …see RMA policy in Terms and conditions, and...
  • Page 23 OF SUCH CLAIMS OR DAMAGES. LIMITATION OF REMEDIES: REGARDLESS OF WHETHER ANY REMEDY SET FORTH HEREIN FAILS OF ITS ESSENTIAL PURPOSE, IN NO EVENT WILL NOVUS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INDIRECT OR SIMILAR DAMAGES, INCLUDING, WITHOUT LIMITATION, DAMAGES...
  • Page 24 Users manual NR7000 Revision #: Date: 102121 11.0 Appendix: GPS/GNSS Command Reference See Attached. Page #: 24 of 24 www.novuspower.com...
  • Page 25 GPS/GNSS Receiver Communications Specification NMEA-0183 All information provided herein is the proprietary property of Novus Power Products L.L.C. The information included may be reproduced without the permission of Novus Power Products L.L.C. without prior approval for purpose of operating the equipment.
  • Page 26 Users manual Appendix A Revision #: Date: 07-14-15 Table of Contents: COMMUNICATION SPECIFICATION ......................... 4 SERIAL DATA OUTPUT TIMING △4........................... 5 NMEA SENTENCE FORMAT ............................. 6 PROPRIETARY SENTENCE FORMAT: ........................7 STANDARD NMEA OUTPUT SENTENCES ........................8 GGA – G : ......................
  • Page 27 Users manual Appendix A Revision #: Date: 07-14-15 PROPRIETARY NMEA OUTPUT SENTENCES ......................40 ACK – O : ......................40 UTPUT THE OMMAND ECEPTION HECK ORMAT CR – ERIDE GNSS CORE LIBRARY INTERFACE ...................... 41 ) △4△5 F CRW(TPS1) – O : ..........
  • Page 28 Users manual Appendix A Revision #: Date: 07-14-15 Communication Specification Signal Lines used: TXD, RXD Flow Control: None System: Full Duplex Asynchronous Speed: Configurable, Default 38400 bps (*1) Start Bit: 1 bit Data Length: 8 bits Stop Bit: 1 bit Parity Bit: None Data Output Interval:...
  • Page 29 Users manual Appendix A Revision #: Date: 07-14-15 Serial data output timing △ The output timing of serial data is synchronous with PPS output timing. Serial data is begun to output in the 25ms to 75ms range after PPS is output. The time of serial data indicates next PPS output timing.
  • Page 30 Users manual Appendix A Revision #: Date: 07-14-15 NMEA Sentence Format 13.1 Standard Sentence Format: <address field> <data field> … *<checksum field> <CR> <LF> 5 bytes Field Description Start-of Sentence marker <address field> 5-byte fixed length. First 2 bytes represent a talker ID, and the remaining 3 bytes do a sentence formatter.
  • Page 31 Users manual Appendix A Revision #: Date: 07-14-15 Proprietary Sentence Format: $ P <maker ID> <sentence type> , <data field> … *<checksum field> <CR> <LF> 3 bytes 3 bytes Field Description Start-of-Sentence marker Proprietary sentence identifier 3-byte fixed length. <maker ID> GT-87’s maker ID is “ERD”...
  • Page 32 Users manual Appendix A Revision #: Date: 07-14-15 Standard NMEA Output Sentences The receiver supports eight standard NMEA output sentences (GGA, GLL, GNS, GSA, GSV, RMC, VTG and ZDA) per NMEA standard 0183 Version 4.10 (June, 2012). By default, the RMC, GNS, GSA, ZDA, GSV and TPS sentences will be output every second. The sentences can be independently enabled and disabled using the $PERDCFG,NMEAOUT and/or $PERDAPI,CROUT command described later in this document, as well as use differing transmission rates.
  • Page 33 Users manual Appendix A Revision #: Date: 07-14-15 – Global Positioning System Fix Data Format: $XXGGA , hhmmss.sss , ddmm.mmmm , , dddmm.mmmm , <CR> <LF> Description Range “hh”: hour 00 - 23 “mm”: minute 00 - 59 “ss.sss”: second 00.000 - 59.999 2-3.
  • Page 34 Users manual Appendix A Revision #: Date: 07-14-15 – △ Geographic Position - Latitude/Longitude Format: $XXGLL , ddmm.mmmm , a , dddmm.mmmm , , hhmmss.sss , a , a *hh <CR> <LF> Description Range 1-2. Latitude “dd”: degree 00 - 90 “mm.mmmm”: minute 00.0000 - 59.9999 “a”: North/South...
  • Page 35 Users manual Appendix A Revision #: Date: 07-14-15 – GNSS Fix Data Format: $XXGNS , hhmmss.sss , ddmm.mmmm , , dddmm.mmmm , , c--c , <CR> <LF> Description Range “hh”: hour 00 - 23 “mm”: minute 00 - 59 “ss.sss”: second 00.000 - 59.999 Latitude 2-3.
  • Page 36 Users manual Appendix A Revision #: Date: 07-14-15 △ – GNSS DOP and Active Satellites Format: $XXGSA , a , a , xx , xx , xx , … , xx , x.x , x.x , x.x , h *hh <CR> <LF> 6-13 Description Range...
  • Page 37 Users manual Appendix A Revision #: Date: 07-14-15 △ – GNSS Satellites in View Format: $XXGSV <CR> <LF> Description Range Total number of messages 1 - 4 Number of messages 1 - 4 Number of satellites in line-of-sight 00 - 14 Sat.
  • Page 38 Users manual Appendix A Revision #: Date: 07-14-15 Satellite number from 93 to 99 indicates QZSS (193 to 199) Page 14 of 58...
  • Page 39 Users manual Appendix A Revision #: Date: 07-14-15 △ – Recommended Minimum Navigation Information Format: $XXRMC , hhmmss.sss , a , ddmm.mmmm , a , dddmm.mmmm , a , x.x , , ddmmyy , <CR> <LF> # Description Range “hh”: hour 00 - 23 “mm”: minute 00 - 59...
  • Page 40 Users manual Appendix A Revision #: Date: 07-14-15 Example: $GNRMC,012344.000,A,3442.8266,N,13520.1233,E,0.00,0.00,191132,,,D,V*0B UTC: 01:23:44.000 Differential 34 deg 42.8266 min N 135 deg 20.1233 min E Speed: 0.0 kts True Course: 0.0 degrees UTC Date: Nov 19, 2032 Page 16 of 58...
  • Page 41 Users manual Appendix A Revision #: Date: 07-14-15 – Course Over Ground and Ground Speed Format: $XXVTG , *hh <CR> <LF> # Description Range 1-2. True Course (degree) “T” (meaning TRUE) 3-4. Magnetic Direction “M” (meaning Magnetic Direction) Note: A null field is output unless magnetic direction information is available. 5-6.
  • Page 42 Users manual Appendix A Revision #: Date: 07-14-15 Proprietary NMEA Input Sentences These sentences are input commands for the protocol of this receiver. Page 18 of 58...
  • Page 43 Users manual Appendix A Revision #: Date: 07-14-15 △ △ – GNSS Satellite System Configuration Format: $PERDAPI , GNSS , talkerID , , glonass , galileo , qzss sbas *hh <CR> <LF> Contents Range Default Remark GNSS Command Name AUTO: GLGSV is omitted in case of no glonass. AUTO, GPGSV is omitted in case of no GPS, SBAS and LEGACYGP...
  • Page 44 Users manual Appendix A Revision #: Date: 07-14-15 △ – FIXMASK Setting of Positioning and Satellite Mask Format: $PERDAPI , FIXMASK , mode elevmask , Reserve1 snrmask , Reserve2 [, Prohibit SVs Prohibit SVs Prohibit SVs Prohibit SVs Prohibit SVs *hh <CR>...
  • Page 45 Users manual Appendix A Revision #: Date: 07-14-15 Example: $PERDAPI,FIXMASK,USER,10,0,37,0,0x92,0x01,0x00,0x00,0x20000*50 Elevation mask: 10 degrees Signal level mask: 37 dBHz GPS mask: GPS (BIT2 = SVID 2), GPS (BIT5 = SVID 5) and GPS (BIT9 = SVID 9) GLONASS mask: GLONASS (BIT1 = SVID 65) SBAS mask: SBAS (BIT18 = SVID 50) Notes: - It is applied not only to First Fix or the time of a positioning return but to all the positioning.
  • Page 46 Users manual Appendix A Revision #: Date: 07-14-15 （ ） – △ Setting of PPS Pulse per second 4 Format: $PERDAPI , PPS , type , mode , period , pulse width , cable delay , polarity [, PPS accuracy threshold] *hh <CR <LF>...
  • Page 47 Users manual Appendix A Revision #: Date: 07-14-15 Notes: △ - LEGACY PPS setting is output legacy PPS which is not synchronized with frequency which is output from GCLK pin, but which is output immediately after first fix in case of cold start. - GCLK PPS setting is output GCLK PPS which synchronized with frequency which is output from GCLK pin, but it takes some to become GCLK PPS steady after first fix (typically, 1~2 minutes after fist fix).
  • Page 48 Users manual Appendix A Revision #: Date: 07-14-15 △ RESTART - Restart command 4 Format: $PERDAPI , RESTART , restart mode *hh <CR> <LF> Contents Range Default Remark RESTART Command Name restart WARM Restart mode mode COLD FACTORY Example: $PERDAPI,RESTART,COLD*08 Mode: cold restart Notes: △...
  • Page 49 Users manual Appendix A Revision #: Date: 07-14-15 – △ TIME Setting of time information Initial time is configured. The setting of time is effective only within the case that time is not decided by other factors. A setting of a millennium which is the times of GPS week rollover is received also after time decision.
  • Page 50 Users manual Appendix A Revision #: Date: 07-14-15 – △ TIMEZONE Local Zone Time This sentence is reflected to ZDA sentence (not only local zone field but also UTC time field). Format: $PERDAPI TIMEZONE , sign , hour , minute *hh <CR> <LF> Contents Range Default...
  • Page 51 Users manual Appendix A Revision #: Date: 07-14-15 – △ SURVEY Position Mode 1 Format: $PERDAPI , SURVEY , position mode [, sigma threshold , time threshold] latitude longitude altitude]] *hh <CR> <LF> Contents Range Default Remark SURVEY Command Name 0: Normal NAV (navigation) mode 1: Position Survey...
  • Page 52 Users manual Appendix A Revision #: Date: 07-14-15 Fixed position: 37.78700 degrees north 122.45100 degrees west Altitude: 31.5 m Page 28 of 58...
  • Page 53 Users manual Appendix A Revision #: Date: 07-14-15 Notes: - It is omissible after the 3rd field. - When the position mode is “1”, a position is re-calculated after power supply OFF/ON. Please use it, when the antenna position may change before power supply OFF. - When the position mode is “2”, after power supply OFF/ON, the estimated position that calculated before power supply OFF is kept, and the position is updated.
  • Page 54 Users manual Appendix A Revision #: Date: 07-14-15 The condition of survey is satisfied. [*] Position mode is always started by time only mode if TO Keep mode by this condition and power off. Page 30 of 58...
  • Page 55 Users manual Appendix A Revision #: Date: 07-14-15 – △ △ FREQ Setting of GCLK FREQUENCY 7 Format: $PERDAPI , FR , mode , freq [, duty offset] *hh <CR> <LF> Contents Range Default Remark FREQ Command Name 0 : stop mode 0 to 1 1 : output...
  • Page 56 Users manual Appendix A Revision #: Date: 07-14-15 – △ △ DEFLS Setting of default leap second 6 Format: $PERDAPI , DEFLS , [, mode] *hh <CR> <LF> Contents Range Default Remark DEFLS Command Name 0 to 32 Default leap second AUTO: default leap second is updated automatically AUTO or mode...
  • Page 57 Users manual Appendix A Revision #: Date: 07-14-15 TIMEALIGN – setting of time alignment △ 4 Format: $PERDAPI , TIMEALIGN , mode *hh <CR> <LF> Contents Range Default Remark TIMEALIGN Command Name 1 : GPS alignment mode 1 to 3 2 : UTC(USNO) alignment 3 : UTC(SU) alignment Example:...
  • Page 58 Users manual Appendix A Revision #: Date: 07-14-15 Restriction: Output time GLONASS only fix GPS only fix setting GPS + GLONASS setting setting accurate default GPS alignment leap second is required [*1] UTC(USNO) alignment UTC(SU) alignment GLONASS only fix GPS + GLONASS setting GPS only fix setting setting GPS alignment...
  • Page 59 Users manual Appendix A Revision #: Date: 07-14-15 – △ FLASHBACKUP Setting of backup in Flash 4 Format: $PERDAPI , FLASHBACKUP , type *hh <CR> <LF> Contents Range Default Remark FLASHBACKUP Command Name Target of backup Each bit represents one command setting 0x00 to 0x01 : FREQ command setting type...
  • Page 60 Users manual Appendix A Revision #: Date: 07-14-15 – CROUT Setting of CR Output Format: $PERDAPI , CROUT , type rate *hh <CR> <LF> Contents Range Default Remark CROUT Command Name Output CR sentence type N,M,W,X,Y,Z W,X,Y,Z [*] Alphabets of outside range are reserved.
  • Page 61 Users manual Appendix A Revision #: Date: 07-14-15 CFG – Setting of Application Software – △ NMEAOUT Standard NMEA Output Format: $PERDCFG , NMEAOUT , type , interval *hh <CR> <LF> Contents Range Default Remark NMEAOUT Command Name Standard NMEA sentence [*1] type [*1]...
  • Page 62 Users manual Appendix A Revision #: Date: 07-14-15 - In case of using low baud rate, please adjust size of output sentence by NMEAOUT command and CROUT command to output all sentence within one second. Page 38 of 58...
  • Page 63 Users manual Appendix A Revision #: Date: 07-14-15 – PVT System VERSION – Software Version Format: $PERDSYS VERSION <CR> <LF> Contents Range Default Remark VERSION Command Name Example: $PERDSYS,VERSION*2C – GPIO General Purpose Input/output Format: $PERDSYS GPIO <CR> <LF> Contents Range Default Remark...
  • Page 64 Users manual Appendix A Revision #: Date: 07-14-15 Proprietary NMEA Output Sentences This sentence is a protocol only for our company. It starts from “$PERD” which shows that it is an original sentence. – Output the Command Reception Check Format: $PERDACK , command , sequence , subcommand *hh <CR>...
  • Page 65 Users manual Appendix A Revision #: Date: 07-14-15 CR – e GNSS Core Library Interface Ride CRW(TPS1) – Output Time Transfer Info per Second (Date and leap second) △ △ 5 Format: $PERDCRW , TPS1 , Date & Time , time status , update date , present LS , future LS , pps status...
  • Page 66 Users manual Appendix A Revision #: Date: 07-14-15 Pps status: present pps is sync with UTC (USNO) Page 42 of 58...
  • Page 67 Users manual Appendix A Revision #: Date: 07-14-15 Notes: - This command is output every second. - Present LS is current leap second. This is updated in the timing of leap second update schedule. - $PERDAPI,CROUT,W,0*4F stops outputting this command. - Update data indicate zero when no update schedule.
  • Page 68 Users manual Appendix A Revision #: Date: 07-14-15 – △ CRX(TPS2) Output Time Transfer Info per Second (PPS) 4 Format: $PERDCRX , TPS2 , pps status , pps mode , pps period , pulse width , cable delay , polarity , pps type , estimated accuracy , Sawtooth , pps acc threshold *hh <CR> <LF> Contents Range Default...
  • Page 69 Users manual Appendix A Revision #: Date: 07-14-15 $PERDCRX,TPS2,1,2,0,200,+001000,0,0,0005,+0.000,1000*29 PPS status: PPS ON (1) PPS mode: during on fix (2) PPS period: 1PPS (0) PPS pulse width: 200ms PPS cable delay: +1000ns Polarity: rising edge Type: LEGACY PPS Estimated accuracy: 5ns Sawtooth: +0.000ns PPS estimated accuracy threshold: 1us Notes:...
  • Page 70 Users manual Appendix A Revision #: Date: 07-14-15 – CRY(TPS3) Output Time Transfer Info per Second (Survey & TRAIM) Format: $PERDCRY , TPS3 , pos mode , sigma , sigma threshold , time , time threshold , TRAIM solution , TRAIM status Removed SVs Receiver status...
  • Page 71 Users manual Appendix A Revision #: Date: 07-14-15 $PERDCRY,TPS3,2,0003,001,002205,086400,0,0,00,0x00000000*68 Positioning mode: Survey mode (calculation continuously) (2) Survey sigma: 3 [m] Survey sigma threshold: 1 [m] Survey time: 2205 [seconds] Survey time threshold: 86400 [seconds] TRAIM solution: OK (0) TRAIM status: OK (0) Removed SVs: 0 Receiver status: 0x00000000 Notes:...
  • Page 72 Users manual Appendix A Revision #: Date: 07-14-15 – △ CRZ (TPS4) Output Time Transfer Info per Second (FREQUENCY) 3 Format: $PERDCRZ , TPS4 , freq mode , Freq status , GCLK accuracy , lock cnt lockoff cnt , reserve , IDtag , GCLK setting 1 , GCLK setting 2 *hh <CR>...
  • Page 73 Users manual Appendix A Revision #: Date: 07-14-15 $PERDCRZ,TPS4,1,1,0,+000000,+000000,+000000,+000000,000000,000000,0x15,0000*57 Freq mode: warm up Freq status: output GCLK accuracy: accurate Notes: - This command is output every second. - $PERDAPI,CROUT,Z,0*42 stops outputting this command. Page 49 of 58...
  • Page 74 Users manual Appendix A Revision #: Date: 07-14-15 CRM – Measurement Data of GPS Format: $PERDCRM time sennum maxsen system svid reserve , doppfreq , pseudorange <CR> <LF> Contents Range Default Remark time 0 to 604799 GPS time of week Sentence number sennum 1 to 32...
  • Page 75 Users manual Appendix A Revision #: Date: 07-14-15 CRN – Navigation Data Format: $PERDCRN system svid subframe data <CR> <LF> Contents Range Default Remark system GNSS system ID (1=GPS) Satellite number svid 1 to 99 10 words Subframe data no parirt included subframe data (60 strings) Example:...
  • Page 76 Users manual Appendix A Revision #: Date: 07-14-15 SYS – Answer of PVT System ERSION- Software Version 7.3.1 Format: $PERDSYS , VERSION , device version , reserve1 , reserve2 <CR> <LF> Contents Range Default Remark VERSION Command Name device Device Name Version number version reserve1...
  • Page 77 Users manual Appendix A Revision #: Date: 07-14-15 △ FIXSESSION- Fix Session 1 Format: $PERDSYS , FIXSESSION , reserve1 [, reserve2 , reserve3] <CR> <LF> Contents Range Default Remark FIXSESSION Command Name reserve1 reserve field reserve2 reserve field reserve3 reserve field Example: $PERDSYS,FIXSESSION,ON,19015,19.015*7C Notes:...
  • Page 78 Users manual Appendix A Revision #: Date: 07-14-15 △ BBRAM - Battery Backup Random Access Memory 1 Format: $PERDSYS BBRAM reserve1 [, reserve2] <CR> <LF> Contents Range Default Remark BBRAM Command Name reserve1 reserve field reserve2 reserve field Example: $PERDSYS,BBRAM,PASS*15 Notes: eRide - This string is sent when certain events occur.
  • Page 79 Users manual Appendix A Revision #: Date: 7-13-15 Backup of the Receiver Parameters (for BBRAM) △ The parameters which this receiver has backed up are shown below. Chart. Backup of the receiver parameter POWER CONTENTS PARAMETER WARM COLD FACTORY OFF/ON Date &...
  • Page 80 Users manual Appendix A Revision #: Date: 7-13-15 TIMEALIGN Time alignment FLASHBACKUP Backup in flash Chart. Backup of the configure parameter of command COMMAND POWER PARAMETER WARM COLD FACTORY NAME OFF/ON UART1 Baud rate of UART1 NMEA output NMEAOUT interval [*1] The position calculated by position survey mode or input by $PERDAPI,SURVEY,3.
