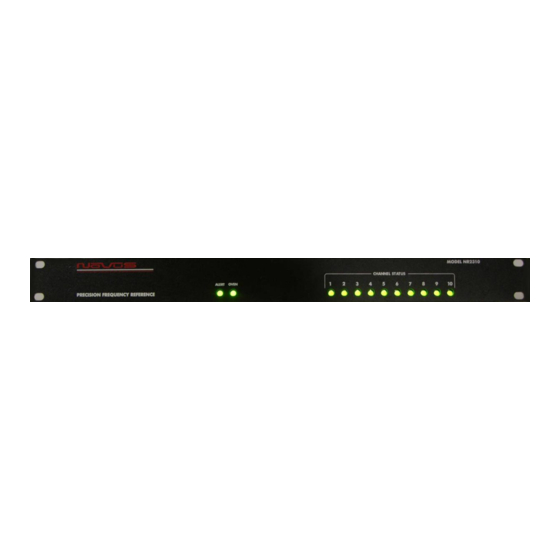

Novus NR2310-O/G User Manual
  1. Manuals
  2. Brands
  3. Novus Manuals
  4. Receiver
  5. NR2310-O/G
  6. User manual

Novus NR2310-O/G User Manual

10mhz frequency reference, ocxo, gnss-locked, 10-channel
Hide thumbs

Advertisement

Quick Links

Download this manual
10MHz Frequency Reference, OCXO, GNSS-Locked, 10-Channel
All information provide herein is the property of Novus Power Products LLC. The
information included may be reproduced without the permission of Novus Power
Products LLC for the purpose of operating the equipment.
Page #:
1 of 21
USERS MANUAL
REVISION
DATE
NR2310-O/G
www.novuspower.com
NR2310-O/G
H
7/17/20
