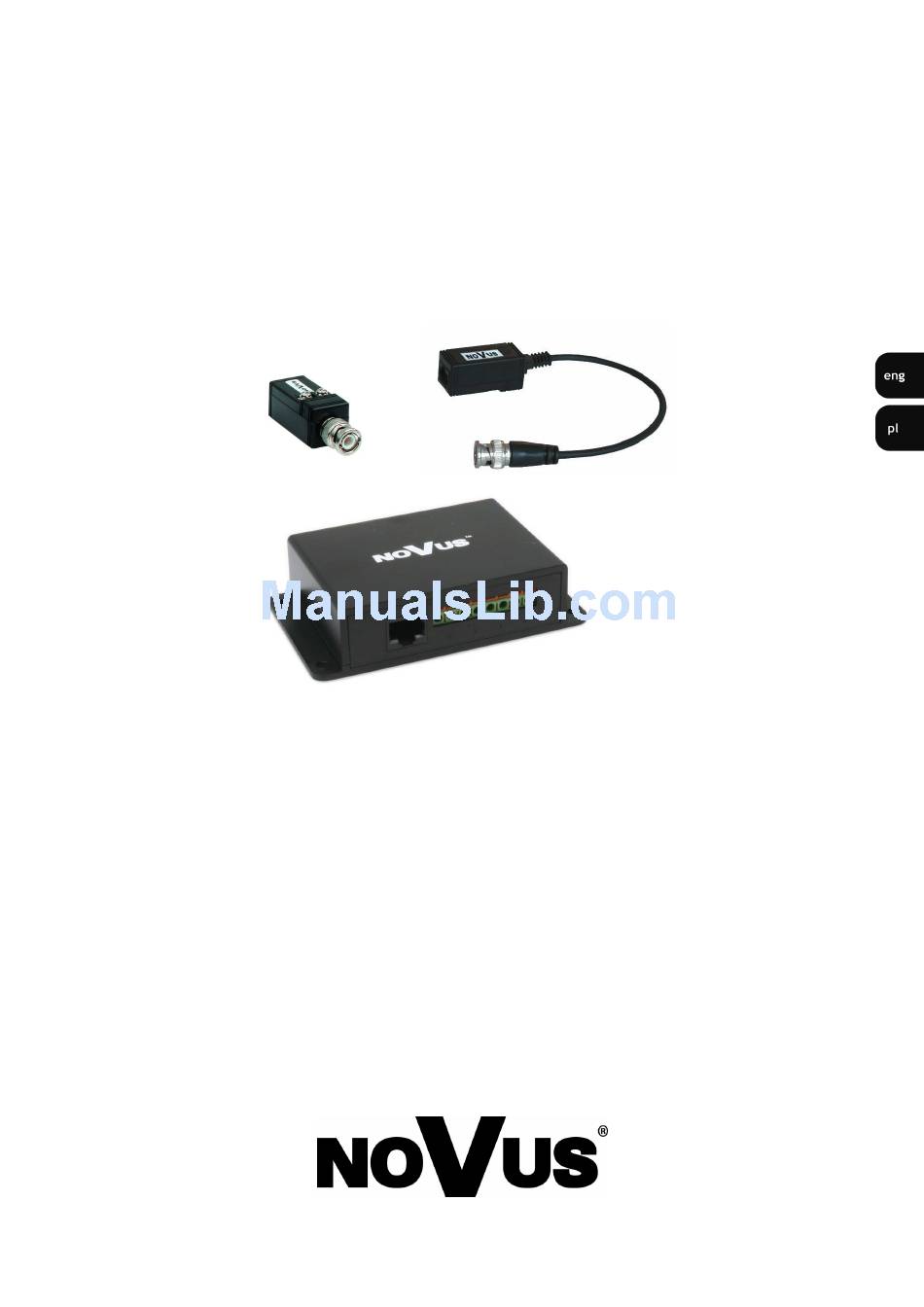

- Page 1 ’s m a n u a l i n s t r u k c j a o b s ł u g i NVPT-111VT NVPT-111VTP NVPT-414V...
- Page 2 NVPT-111VT, NVPT-111VTP, NVPT-414V - user's manual, ver. 2.1 INFORMATION EMC (89/336/EEC) and LVD (73/23/EEC) Directives CE Marking Our products are manufactured to comply with requirements of the following directives and national regulations implementing the directives: • Electromagnetic compatibility EMC 89/336/EEC with further amendments •...
-
Page 3: Warnings And Precautions
OF THE AUTHORISED NOVUS SERVICE. INFORMATION All the data included in this manual are up to date at the moment of printing this manual. Novus Security Sp. z o.o. reserves the right to amend this manual. The producer reserves the right to modify parameters of the device and change its design without notice. - Page 4 NVPT-111VT, NVPT-111VTP, NVPT-414V - user's manual, ver. 2.1 SPECIFICATION 1. SPECIFICATION Model NVPT-111VT NVPT-111VTP NVPT-414V Type Passive transmitter / receiver Video Input / Output 1 x BNC, V , 75 1 x BNC, V , 75 4 x BNC, V...
- Page 5 NVPT-111VT, NVPT-111VTP, NVPT-414V - user's manual, ver. 2.1 FEATURES 2. FEATURES NVPT-111VT Single-channel video transceiver for twisted-pair; The passive device – no power supply required; Connectors: 1 x BNC male, 2-pin screw terminal, RJ45; Video transmission distances: b/w signal up to 600m and color signal up to 400m using only passive devices or 1200m and 2000 using passive transmitter and active receiver NVPT-A111VRH;...
- Page 6 <----> "+" Pin 8 <----> "-" NVPT-111VT / NVPT-111VTP transceivers utilize only one pair of wires for video transmission. Please pay attention to proper polarization while making connections. Pins described as "+" from a transmitter should be connected to pins described as a "+" on a receiver.
- Page 7 NVPT-111VT, NVPT-111VTP, NVPT-414V - user's manual, ver. 2.1 INSTALLATION NVPT-414V Pin 1 <----> "+" channel 1 Pin 2 <----> "-" channel 1 Pin 3 <----> "+" channel 2 Pin 6 <----> "-" channel 2 Pin 4 <----> "+" channel 3 Pin 5 <---->...
- Page 8 NOVUS Security Sp. z o.o. ul. Puławska 431, 02-801 Warszawa tel.: (22) 546 0 700, fax: (22) 546 0 719 www.novuscctv.com 2007-09-24...
