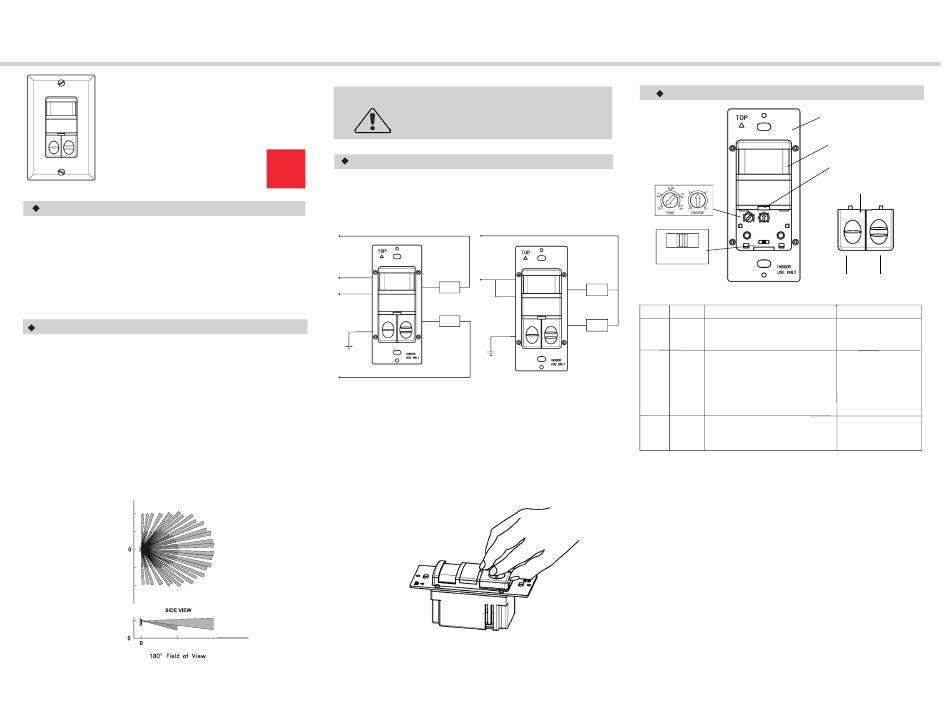

B.E.G. WAVE-PIR-120-DR-(O/V) Installation Instructions

INSTALLATION INSTRUCTIONS
WAVE-PIR-120/277-DR-(O/V)
OCCUPANCY / VACANCY (2-IN-1)
Part Number: 97346
S P E C I F I C A T I O N S
Voltage .................................................................... 120/277VAC, 60Hz
Incandescent ........................................................................... 800W
Fluorescent/Ballast.................... 800VA@120VAC /1600VA@277VAC
Motor ......................................................................................... 1/4Hp
Time Delay................................................................ 15Sec to 30Mins
Light Level..................................................................... 30 Lux-Daylight
Operation Temperature.................................................. 32°F -- 131°F
D E S C R I P T I O N
The passive infrared sensors work by detecting the difference between
heat emitted from the human body in motion and the background space.
The sensor switch can turn a load on and hold it as long as the sensor
detects occupancy. After no motion is detected for the set time delay, the
load turns off automatically. WAVE-PIR-120/277-DR-(O/V) has two relays
(equal to Dual Load Switch), and also includes Ambient Light Level Sensor.

Coverage Area

The coverage range of the sensor switch is specified and illustrated
in Figure 1. Large objects and some transparent barriers like glass
windows will obstruct the sensor's view and prevent detection, causing
the light to turn off even though someone is still in the detection area.
Top View
20'
10'
10'
Best:320 sq.ft.
20'
Regular: 800 sq.ft.
Maximum: 1200 sq.ft.
5'
4'
20'
Figure 1
-01-
WARNING:
SENSOR SWITCH
DUAL LOAD
I N S T A L L A T I O N
B.E.G.
1. Connect lead wires as shown in WIRING DIAGRAM (see Figure 2):
Controls
Black lead to Line 1 (Hot), Blue lead to Line 2 (Hot), Red lead to Primary
Load wire, Brown lead to Secondary Load, Green lead to Ground.
Neutral
Line 1 Black
Line 2 Blue
Ground Green
Neutral
2. Gently position wires in wall box, attach sensor switch to the box.
3. Mount device "TOP" up.
4. Restore power at circuit breaker or fuse, wait
5. Remove the small cover plate (illustrated as Figure 3).
6. Locate the adjustment knobs on the control panel to perform test
and adjustment (illustrated as Figure 3).
7. Replace the small cover plate after testing and adjustment.
8. Attach the wallplate.
40'
Turn off the circuit breaker before installation;
Ground wire is required;
In door use only;
Do not exceed electrical ratings.
Neutral
Line Black
Red Red
Primary
Red Red
Load
Blue
Brown Secondary
Brown Secondary
Load
Ground Green
Figure 2
three
minutes.
Figure 3
-02-
A D J U S T M E N T
10Min
2
5 20 3
Min Min
30
TEST Min 1 4
TIME RANGE
OCCD OCCS VACD
OCCD OCCS VACD
Primary
Band switch prescription.
Load
Position

Description

Mode
Occupancy Mode: Dual Load
Load
Left
OCCD Automatically On, Automatically Off
after set time delay both Loads together.
Primary Load
Occupancy Mode: Automatic On,
Automatic Off after set time delay.
Center
OCCS
Secondary Load
VAC Mode: Secondary Load Manual On,
Automaic Off after set time delay
Vacancy Mode: Manual On only,
Right
VACD
Automatic Off after set time delay.
Time Delay Knob
Default position: 15 Seconds (Test mode)
Adjustable: from 15 Seconds to 30 Minutes (clockwise)
Sensor Sensitivity Range Knob
Default position: Center at 65%
Adjustable: 30% (Position 1) to 100% (Position 4)
Note: Turn toward right for greater room space.
Turn toward left to avoid false alert in smaller room and near
the door way or heat source.
Ambient Light Level
After Initial Run (3 minutes), set the Band Switch to VACD, press and
hold the primary Manual ON/OFF Button for 6 seconds until the Load
turns on, release the primary button within the next 4 seconds, the Load
will turn off and stay off for a maximum 10 seconds. The Load will
turn on again (2 seconds) and then off. It confirms that the present light
-03-
Mounting Yoke
Fresnel Lens
LED Indicator
Control Panel Cover
(Push Button)
Primary Load Secondary Load
React to the push-button
Manually toggles
On / Off the loads
Manually toggles
On / Off the loads
Manually toggles
On / Off the loads.
