B.E.G. LUXOMAT ALC-K-360 Installation And Operating Instruction

LUXOMAT
Installation and Operating Instruction for B.E.G. - Automatic light LUXOMAT
1. Assembly ALC-K-360
5
1
3
4

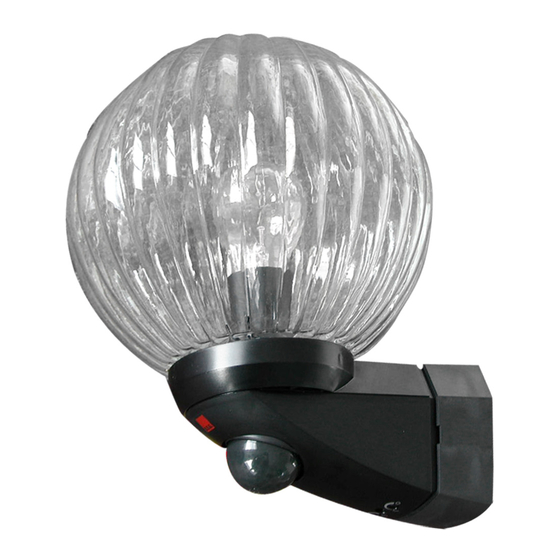

1) Automatic light ALC-K
2) Fixation of the Bulb bayonet interlocking
3) Horizontally and vertically swivelling
sensor head
4) Locking screw for connector base
5) Plug-in connector base
4. Putting into operation / Settings
Twilight-switch for light control / follow-up time
Infinitely variable setting from approx. 4 sec.
to approx. 10 min.
Arrow position left:
approx. 4 sec.
Arrow position right:
approx. 10 min.
Photo electric switch
Infinitely variable setting from approx. 2 to
approx. 1000 Lux. by turning.
Arrow position on symbol "moon"
night-time operation, approx. 2 Lux
Arrow position on symbol "sun"
daytime operation, approx. 1000 Lux
6. Range control
Detection area can be
adapted to the local
circumstances by tur-
ning the round optics.
®
2. Installation
c
2
1) Detach lighting part from the base (a)
2) Insert the cable, from the bottom (b) or from the
back here.
3) Connect the cables as indicated by the terminal
labels (see point 9 for wiring diagrams).
4) Attach the assembly base with two screws (c).
5) Screw in lamp E27
6) Secure system glass to system light lower section
(see point 3)
7. Sensitivity adjustment (mounting height 1.80 m)
2
ALC-K-360
3. Attaching the system glass
a
b
c
The fixation of the bulb is taken
here by bayonet interlocking.
5. Mounting types
1) Wall mounting
2) Outside corner mounting with plug-in socket
walking across quer zum Melder gehen
1
1.80 m
frontal zum Melder gehen
quer zum Melder gehen
Unterkriechschutz
2 walking frontal zum Melder gehen
quer zum Melder gehen
towards
Unterkriechschutz
frontal zum Melder gehen
Unterkriechschutz
anti-creep
1) Range walking across:
approx. 10 m
1
2) Range walking towards:
approx. 8 m
ALC-K-360 with motion detector
®
8. Mounting place
1) If possible mount unit on a safe place
2) Influence of weather reduces the lifetime
of the unit. Please take care to mount
correctly.
