User Instructions
2. Adjustment by the orthopaedic technician
2.1. Fitting to the patient

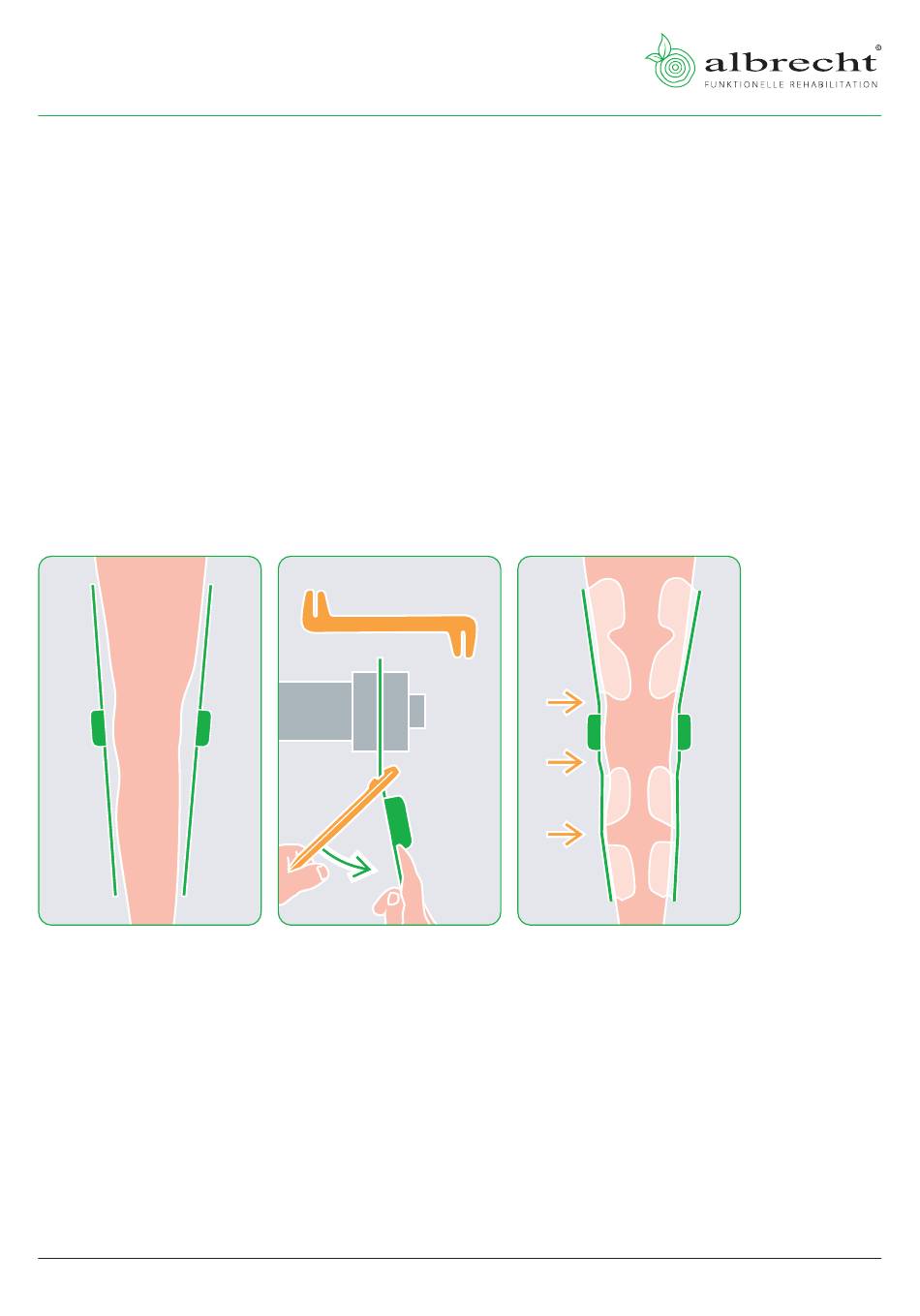

2.1.1. Adjusting the brace to the leg shape by using an
orthopaedic "bending iron"
The brace is anatomically contoured. However, if a different shape is required,
the hinge rods can be adjusted to the shape of the patient's leg with the aid of
an orthopaedic bending iron. Loosen the screws on the shell components and
either move or remove them. Then adjust the hinge rods to the shape of the
extremity.
When adjusting the hinge rods to the shape of the extremity by using an
orthopaedic bending iron, you must not bend the rods in the area of the hinge
housing or the hinge cover as this could lead to damage or break of the hinge.
Please note:
•
The setting for both hinges must be the same.
•
Both stop pins of each hinge must be in the pin holes.
•
The hinge covers must always be closed after any adjustment.
bending iron
www.albrechtgmbh.com
7
