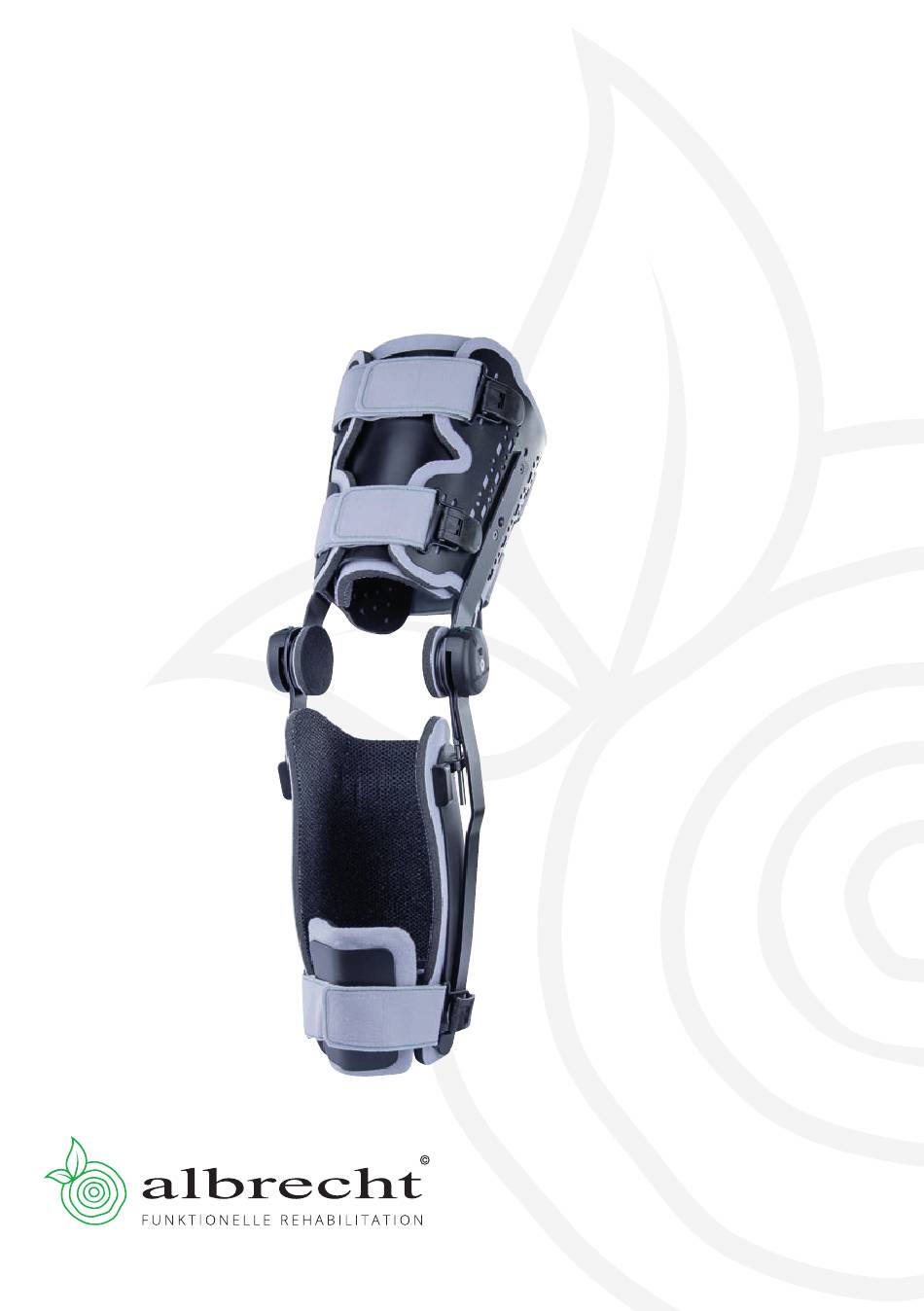

Dynamic knee brace to relieve the posterior cruciate ligament
Hide thumbs
Table of Contents

Advertisement

Quick Links

U S E R I N S T R U C T I O N S
J A C K P C L B R A C E
D Y N A M I C K N E E B R A C E
T O R E L I E V E T H E P O S T E R I O R C R U C I AT E L I G A M E N T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JACK PCL BRACE and is the answer not in the manual?

Questions and answers

Paul melady
May 28, 2025

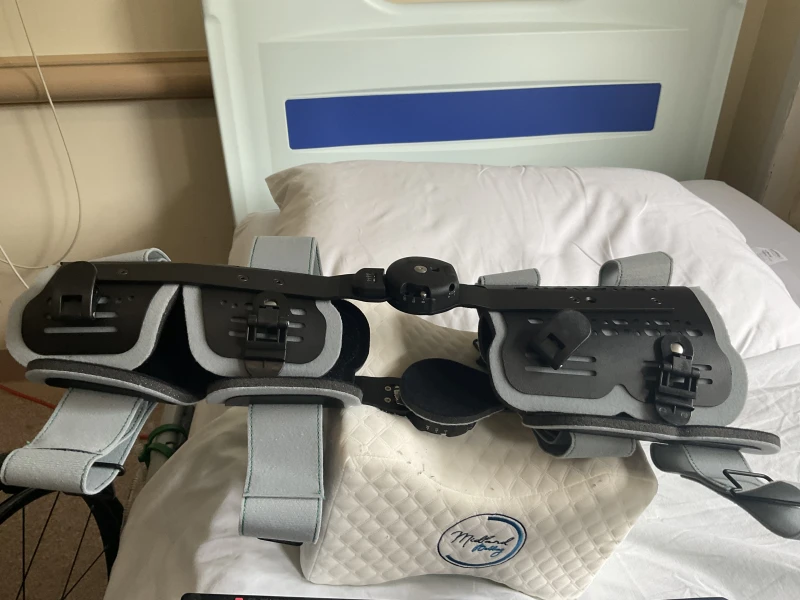

My knee brace has lost tension on both sides and seems to be broken?
