Components & Controls; Display Tablet - Launch X-431 Turbo III User Manual

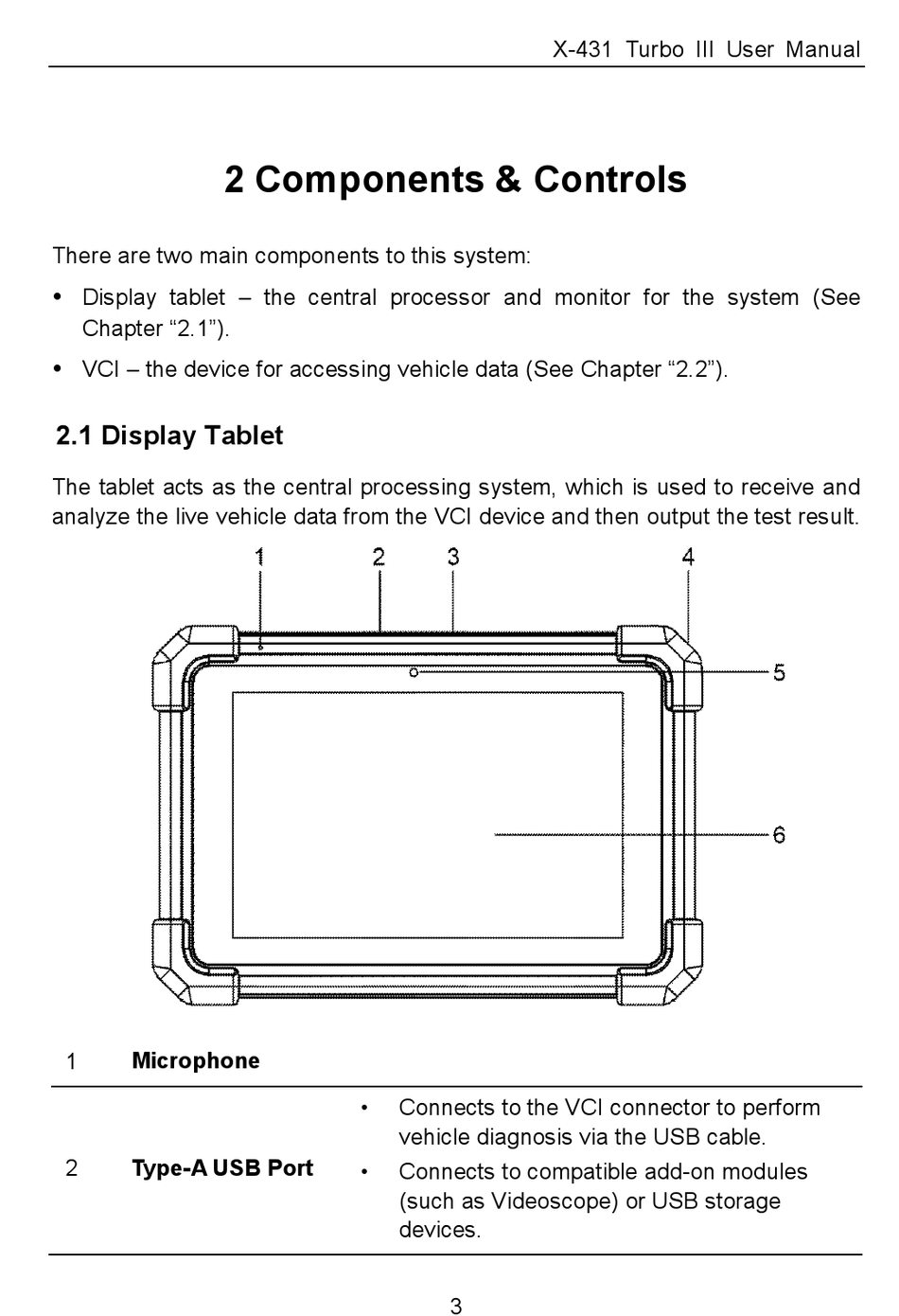

There are two main components to this system:
 Display tablet – the central processor and monitor for the system (See
Chapter "2.1").
 VCI – the device for accessing vehicle data (See Chapter "2.2").

2.1 Display Tablet

The tablet acts as the central processing system, which is used to receive and
analyze the live vehicle data from the VCI device and then output the test result.
Microphone
1
2 Type-A USB Port
2 Components & Controls
•
•
X-431 Turbo III User Manual
Connects to the VCI connector to perform
vehicle diagnosis via the USB cable.
Connects to compatible add-on modules
(such as Videoscope) or USB storage
devices.
3
