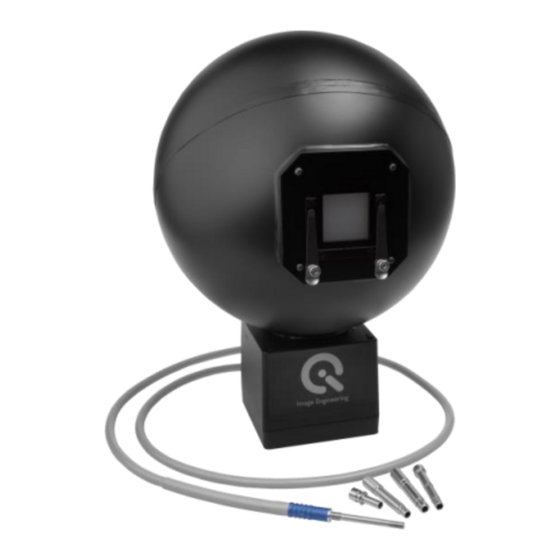

- Page 1 CAL4-E User Manual May 5, 2017 Image Engineering GmbH & Co. KG · Im Gleisdreieck 5 · 50169 Kerpen · Germany T +49 2273 99 99 1-0 · F +49 2273 99 99 1-10 · www.image-engineering.com...
- Page 2 3.2 Connection to the projector ..................4 3.3 Starting the system ....................4 3.4 Endoscopy positioning ................... 5 ADDITIONAL INFORMATION ..................5 4.1 Care instructions ....................5 4.2 Disposal instructions ....................5 TECHNICAL DATA SHEET ..................5 Image Engineering Seite 2 von 5...
- Page 3 Keep these instructions in a safe place and pass them on to any future user. Conformity We, Image Engineering GmbH & Co. KG, hereby declare that the CAL4-E corresponds to the essential requirements of the following EC directive in its current version: •...
- Page 4 Connect the CAL4-E to your projector by using one of the four adapters with the fiber. Starting the system Use the brackets to place a test chart on the CAL4-E opening and turn on the projector's light source. NOTE The CAL4-E device can only operate with high precision when the projector's light source is ready to use.
- Page 5 Store and transport the CAL4-E only in the delivered hard case. Disposal instructions After the service life of CAL4-E, it must be disposed of properly. Observe your national regulations and ensure that CAL4-E cannot be used by third parties after disposing of it.
