Original Instructions
Operation Manual
LIMITED WARRANTY
This product is warranted to be free from defects in material and/or
workmanship for a period of one (1) year from date of original
installation, not to exceed 18 months from date of shipment from
our factory. Any part or component which proves to be faulty in
material and/or workmanship within the warranty period will be
replaced or repaired (at the option of Prince Castle LLC) without
cost to the customer for parts or labor.
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this
warranty and all work must be performed by an authorized
Prince Castle Service Agent.
• All labor shall be performed during regular work hours.
Overtime premium will not be covered.
• Travel charges are limited to 100 miles (200 kilometers) round
trip, 2 hours travel time, one trip per repair.
• Damage caused by carelessness, neglect, and/or abuse (e.g.,
using wrong current, dropping, tampering with or altering
electrical components, or improper cleaning) is not covered.
• Equipment damaged in shipment, by fire, flood or an act of
God is not covered.
• Damage to non-stick coated surfaces is not covered by
this warranty.
355 East Kehoe Blvd. • Carol Stream, IL 60188 USA
Telephone: 630-462-8800 • Toll Free: 1-800-PCASTLE
Fax: 630-462-1460 • www.princecastle.com
301-500rev02-EN
CAUTION: Read Instructions before installing
and using appliance

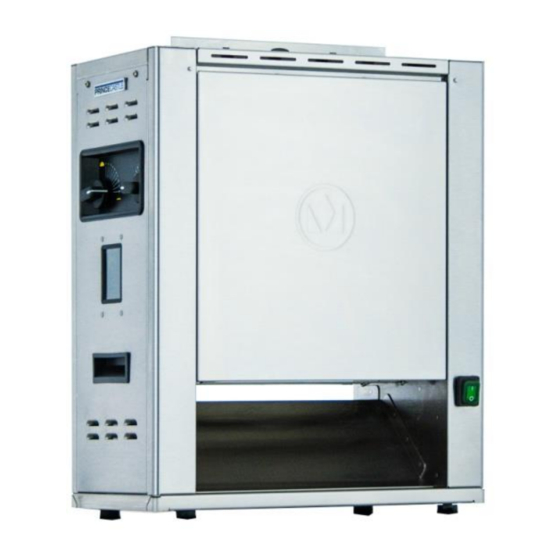

Vertical Contact Toasters
The CTD Series Vertical Contact
Toaster
This appliance is designed for toasting
bread products in a commercial kitchen.
Customer-adjustable features include:
• Bun Compression Adjustment
• Set Point Temperature
• Time (Speed of Conveyor)
The Conveyor Belt options may be wire,
metal (Stainless Steel) or silicone.
TABLE OF CONTENTS
Safety Information ...................................................................... 2
Safety Features .......................................................................... 2
Electrical Specifications ............................................................. 2
Installation .................................................................................. 2
Operation ................................................................................... 4
Setting Adjustments ................................................................... 5
Manager Advanced Programming ............................................. 7
Cool Down .................................................................................. 9
Daily Planned Maintenance ....................................................... 9
Troubleshooting ....................................................................... 11
Uninstalling and Installing the Silicone Belt.............................. 12
Accessories .............................................................................. 13
Service Kits .............................................................................. 14
Exploded Views ........................................................................ 17
Wiring Diagram ........................................................................ 18
Revision Log ............................................................................ 19
CTD & CTDE
Printed in USA 10/18 © 2018
Advertisement
Table of Contents
Related Manuals for Prince Castle CTD
Summary of Contents for Prince Castle CTD
-
Page 1: Table Of Contents
Any part or component which proves to be faulty in material and/or workmanship within the warranty period will be Installation .................. 2 replaced or repaired (at the option of Prince Castle LLC) without Operation ................... 4 cost to the customer for parts or labor. -
Page 2: Safety Information
XXX-XX-AX Auxiliary Heater* 220-240 50/60 0.69-0.80 * To add an Auxiliary Heater, insert (AX) on the end of model number [i.e., CTD-W-AX]. Installation Verify parts. Verify that all parts have been received: WARNING • CTD or CTDE Contact Toaster. The appliance is not intended for use by persons (including •... - Page 3 CTD & CTDE Vertical Contact Toasters Installation (continued) Clean the outside of the CAUTION toaster. Using a clean cloth Equipment must be elevated from the floor at all times with lukewarm soap and water, wipe the outside of the during cleaning and operation.
-
Page 4: Operation
Follow the Cool Down procedure before touching or working on internal apparatus. When the current platen temperature reaches the set point The Prince Castle logo and version information will temperature, the Run/Home appear in the display. screen appears. -
Page 5: Setting Adjustments
CTD & CTDE Vertical Contact Toasters Setting Adjustments Change Bun Compression adjustment. Because the Change the Temperature set platen has separate segments for the “Crown” (left) side point. From the Run/Home and “Heel” (right) side, they are adjusted separately, screen, you can change the each with its own compression control. - Page 6 CTD & CTDE Vertical Contact Toasters Setting Adjustments (continued) Optional AUX Heater Models: Save the current settings as the current recipe. If Increase/Decrease the you have made adjustments to the current settings and you want to save the settings to the current recipe, you percentage of auxiliary heat.
-
Page 7: Manager Advanced Programming
CTD & CTDE Vertical Contact Toasters Manager Advanced Programming Adjust screen brightness Access statistics. From the setting. From the Run/Home Run/Home screen, you can access statistics if you have a screen, you can change the PIN. screen brightness if you have a PIN. - Page 8 CTD & CTDE Vertical Contact Toasters Manager Advanced Programming (continued) Change the temperature units (°F/°C). From the Run/Home screen, you can change the temperature units if you have a Service PIN code. NOTE: You will need to obtain the Service PIN code from your service representative to access this feature.
-
Page 9: Cool Down
CTD & CTDE Vertical Contact Toasters Cool Down Wait while the toaster cools WARNING down. The thermometer icon will be BURN/ELECTRICAL SHOCK HAZARD! Platen area is HOT flashing until the current platen temperature reaches the cleaning and can cause severe burns or severe shock. Keep hands set point temperature. - Page 10 CTD & CTDE Vertical Contact Toasters Daily Planned Maintenance (continued) Open the conveyor doors. Clean outside of the For each door, lift slightly toaster. Dampen a clean from the bottom to unlatch cloth with lukewarm soap and guide down to the and water.
-
Page 11: Troubleshooting
CTD & CTDE Vertical Contact Toasters Troubleshooting WARNING To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equipment should be performed by qualified service personnel. The unit should be unplugged when servicing, except when electrical tests are required. -
Page 12: Uninstalling And Installing The Silicone Belt
CTD & CTDE Vertical Contact Toasters Uninstalling and Installing the Silicone Belt Uninstall the silicone belt. Ensure the CTD is not hot to the touch. Open the conveyor door. Push door switch pin to activate the conveyor until the area where the two ends of the belt meet is near the top. -
Page 13: Accessories
CTD & CTDE Vertical Contact Toasters Accessories Butter Wheel Hanging Points 511-142 Butter Wheel, CTD 511-141 Butter Wheel, CTDE Printed in USA 10/18 © 2018 301-500rev02-EN... -
Page 14: Service Kits
CTD & CTDE Vertical Contact Toasters Service Kits NOTE: See Exploded Views on page 17 for item location. 299-070S 301-084S 299-028S 301-041S Flanged Ball Bearing Door Switch Spring Conveyor Tensioner Spring Chain Tensioner Bushing 525-127S 301-023S 301-044S 301-022S Door Cut-Off Switch... - Page 15 CTD & CTDE Vertical Contact Toasters Service Kits (continued) NOTE: See Exploded Views on page 17 for item location. 301-035S 301-036S 301-031S 301-038S Chain Tensioner Spring Chain Tensioner Roller Drive Chain Sprocket 299-060S 7500-007S 301-014S (CTD) 301-013S (CTD) Motor Control Board...
- Page 16 CTD & CTDE Vertical Contact Toasters Service Kits (continued) NOTE: See Exploded Views on page 17 for item location. 301-039S 301-030S 301-034S 85-144-25S Sprocket, Drive Chain, Spring, Chain Power Supply, 1/4" Pitch x 40TH ANSI 25 x 63 Tensioner-L ECS45US24...
-
Page 17: Exploded Views
CTD & CTDE Vertical Contact Toasters Exploded Views Printed in USA 10/18 © 2018 301-500rev02-EN... -
Page 18: Wiring Diagram
CTD & CTDE Vertical Contact Toasters Wiring Diagram Printed in USA 10/18 © 2018 301-500rev02-EN... -
Page 19: Revision Log
CTD & CTDE Vertical Contact Toasters Revision Log PAGE DESCRIPTION DATE VERSION RESPONSIBLE PERSON Printed in USA 10/18 © 2018 301-500rev02-EN...
