Original Instructions
Operation Manual
LIMITED WARRANTY
This product is warranted to be free from defects in material and/or
workmanship for a period of 2 years from date of original installation, not
to exceed 30 months from the date of manufacture.
Any component which proves to be faulty in material and/or workmanship
will be replaced or repaired (at the option of Prince Castle LLC) without
cost to the customer for parts and labor. This warranty covers on location
service (i.e. trip charges and or mileage). Travel mileage is limited to
100 miles (200 Kilometers) round trip (one trip warranty) from an
authorized service agency or its sub-service agency.
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this warranty.
• All labor to be performed during regular work hours. Overtime premium
(the incremental amount) will be charged to the customer.
• Damage caused by carelessness, neglect and/or abuse (e.g.,
dropping, tampering or altering parts, equipment damaged in shipment,
by fire, flood or an act of nature) is not covered under this warranty.
• All problems due to operation at voltages other than that specified on
equipment nameplates are not covered by this warranty. Conversion to
correct voltage is the customer's responsibility.
• This equipment must be serviced by Prince Castle Authorized Service
Agency or a Prince Castle Service Technician during the warranty
period.
542-534revA_EN
Telephone: 630-462-8800 • Toll Free: 1-800-PCASTLE
Fax: 630-462-1460 • www.princecastle.com
TABLE OF CONTENTS
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Calibrating Heaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting Breakfast and Regular Menus . . . . . . . . . . . . . . . . . . . . . . .
Programming the Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the Hold and Cook-More Times . . . . . . . . . . . . . . . . . . . . .
Changing Product Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Factory Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
TM

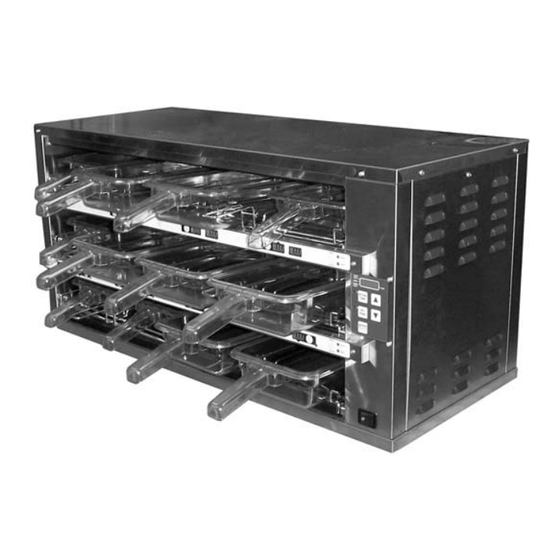

Product Holding Bin
DHB-BK15/17 Series
(with Prince Castle Button Bar)
Printed in USA 12/14 © 2014
2
2
2
3
3
5
5
6
7
7
8
9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Prince Castle DHB-BK15 Series
Summary of Contents for Prince Castle DHB-BK15 Series
-
Page 1: Table Of Contents
Any component which proves to be faulty in material and/or workmanship will be replaced or repaired (at the option of Prince Castle LLC) without Installation .......... -
Page 2: Safety Information
(qty. 8) Important Prince Castle reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. Printed in USA 12/14 © 2014... -
Page 3: Installation
• save carton and packaging materials for inspection purposes codes and any other applicable codes. • contact your local dealer, or if purchased directly, the Prince Castle If the supply cord is damaged, it must be replaced by the Sales Department at 800-722-7853 or 1-630-462-8800 to arrange for a manufacturer, its service agent, or similarly qualified persons in replacement unit. - Page 4 See your Manager. To change a menu selection for a specific pan cavity, use the following steps: A. Press and hold the PRINCE CASTLE LOGO button for 6 seconds. All D. Press the UP or DOWN Arrow E.
-
Page 5: Cleaning
Press to display actual temperature for the selected heater. LED will be lit when actual temperature is displayed. PRINCE CASTLE LOGO BUTTON SETPOINT BUTTON and LED Press to enter temperature selections. Press to display setpoint temperature of a selected heater. -
Page 6: Calibrating Heaters
POINT SET- POINT Press and hold the SETPOINT button Press the PRINCE CASTLE LOGO button to save the new for 5 seconds. The Program LED will setpoint value. Repeat Steps 2 – 5 to change the setpoint for any light. -
Page 7: Selecting Breakfast And Regular Menus
Release the MENU/ENTER button when the desired menu is displayed. MNU3 Repeat Steps 2 – 3 as required. Press the PRINCE CASTLE LOGO button to exit the Program Mode. NOTE: A pan may be set as “not used” by assigning “- - - -” as When the MENU/ENTER button is released, all its product. -
Page 8: Changing The Hold And Cook-More Times
Changing the Hold and Cook-More Times The SET PRODUCT TIME menu is used to change the Hold and Cook-More times. Press and hold the PRINCE CASTLE LOGO button, then immediately press and hold the MENU/ENTER button until the display shows one of four programming menus. -
Page 9: Changing Product Names
The EDIT PRODUCT NAME menu is used to change a default product name to one of your own choosing. Press and hold the PRINCE CASTLE LOGO button, then immediately press and hold the MENU/ENTER button until the display shows one of four programming menus. -
Page 10: Factory Presets
Product Holding Bin DHB-BK15/17 Series Factory Presets Product Menu Details Product Display Name Hold Minutes Cook-More Minutes Eggs EGGS Biscuits BISC Sausage SAUS French Toast FR-T Fish FISH Chicken Crisp CRSP Chick Patty CHKN Chicken Tenders TEND Burgers BURG Whoppers WHPR BK Broiler -BK-... -
Page 11: Troubleshooting
Troubleshooting PROBLEM PROBABLE CAUSE SOLUTION Display flashes Open relay. Circuit inoperable. Call for service (888) 375-2938. Display flashes Shorted relay. Circuit inoperable. Call for service (888) 375-2938. Open heater. Call for service (888) 375-2938. Unplugged ribbon cable between power and Call for service (888) 375-2938.
