OPERATING
INSTRUCTIONS

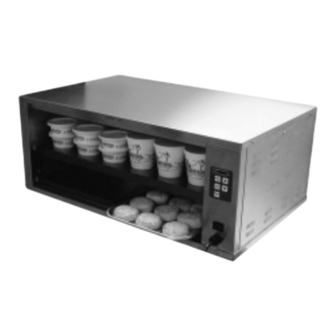

Dedicated Holding Bin
Model No. DHB-P1A Series
PRODUCT SPECIFICATION
Model No.
Volts
DHB-P1A
208
DHB-P1ACE
230
528-500revD_EN
HZ
Watts
Amps
50/60
2500
12.2
50
3100
13.4
355 East Kehoe Blvd.
Tel: (630) 462-8800
Toll Free: 1-800-PCASTLE

TABLE OF CONTENTS

Installation ..................................................................... 2
Control Panel Identification ......................................... 2
Programming ................................................................. 2
Operation ....................................................................... 3
Cleaning ........................................................................ 3
Exploded View & Parts List ........................................ 4
Troubleshooting ............................................................ 5
Wiring Diagram ............................................................. 5
LIMITED WARRANTY
This product is warranted to be free from defects in material
and/or workmanship for a period of 1 year from date of
original installation, not to exceed 18 months from the date of
manufacture.
Any component which proves to be faulty in material and/or
workmanship will be replaced or repaired (at the option of
Prince Castle, Inc.) without cost to the customer for parts and
labor. This warranty covers on location service (i.e. trip
charges and or mileage). Travel mileage is limited to 100
miles (200 Kilometers) round trip (one trip warranty) from an
authorized service agency or its sub-service agency.
This warranty is subject to the following exceptions/
conditions:
Use of any non-genuine Prince Castle parts voids this
warranty.
All labor to be performed during regular work hours. Over-
time premium (the incremental amount) will be charged to
the customer.
Damage caused by carelessness, neglect and/or abuse
(e.g., dropping, tampering or altering parts, equipment
damaged in shipment, by fire, flood or an act of God) is not
covered under this warranty.
All problems due to operation at voltages other than that
specified on equipment nameplates are not covered by
this warranty. Conversion to correct voltage is the
customer's responsibility.
This equipment must be serviced by Prince Castle Autho-
rized Service Agency or a Prince Castle Service Techni-
cian during the warranty period.
Carol Stream, IL 60188
Fax: (630) 462-1460
PAGE
Printed in USA 10/10 ©2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DHB-P1A Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Prince Castle DHB-P1A Series

  • Page 1 Any component which proves to be faulty in material and/or workmanship will be replaced or repaired (at the option of Prince Castle, Inc.) without cost to the customer for parts and labor. This warranty covers on location service (i.e. trip charges and or mileage).
  • Page 2 The SET POINT LED indicator in the display will be on when the Set- RECOMMENDED STARTING point mode is selected. Press and hold the Prince Castle button then press and TEMPERATURES hold the SET-POINT button for 5 seconds 1. Temperature settings:...
  • Page 3 1. Press the UP or DOWN arrow button until 4. Press the PRINCE CASTLE button to end the the heater to be changed is selected. For Program Mode and store the setpoint tem- Top Cavity, the LED next to the UPR SHELF...
  • Page 4 EXPLODED VIEW PARTS LIST Item Part Description Item Part Description 72-384S Power Cord (CE) 528-078S PCB, Main (CE) 72-352S Power Cord 197-232 Foot (Pkg of 4) 528-004S Heater Assembly 541-333S PCB, Display 528-011S Upper Heater Lower Cavity 536-802S Overlay, Display Bd. 78-233S Lighted Rocker Switch 528-078S...
  • Page 5 TROUBLESHOOTING A. Display flashes Open relay. Replace Power Circuit Board “Opn” & “rEL” Circuit inoperable B. Display flashes Shorted relay. Replace Power Circuit Board. “SHr” & “rEL” Circuit inoperable. C. Display shows “LLL” Temperature is below 75° F Normal display during warm up. Heater inoperable.
  • Page 6 WIRING DIAGRAM — DHB-P1ACE Printed in USA 10/10 © 2010 528-500revD_EN...
