Prince Castle DHB-KFC3GB Operating Instructions Manual

OPERATING
INSTRUCTIONS

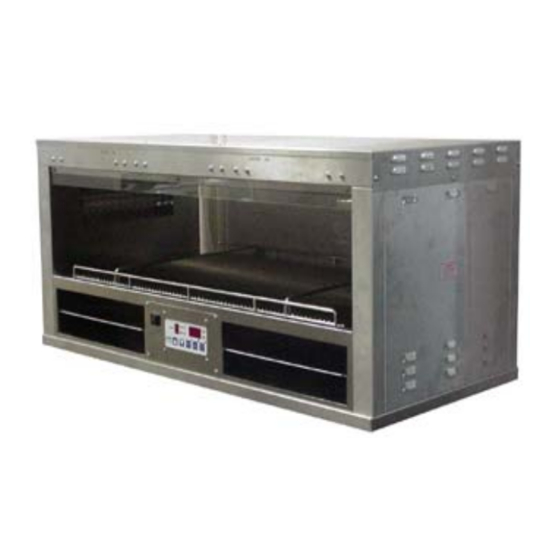

KFC Hot Hold Bin
Model No. DHB-KFC3GB
Prince Castle Food Holding Bins provide the capacity re-
quired for large foodservice operations while performing at
peak energy efficiency. The unit features a controlled holding
chamber capable of holding 3 half size pans. The DHB-
KFC3GB has shatterproof lighting to illuminate foods. New
Reli-A-Temp™ infrared heater technology holds product
temperatures more consistent within the designated holding
time than other types of heating systems. This exclusive
heater design spreads the heat evenly over the entire food
holding area, eliminating edge drop off. Food is kept at the
desired serving temperature.
ELECTRICAL SPECIFICATIONS
Voltage 230
Watts 2500
Hertz 50/60
Amps 10.5
543-500revB
355 East Kehoe Blvd.
Tel: (630) 462-8800
Toll Free: 1-800-PCASTLE
