Pan & Pan Cover
A
TRANSFER
b
C
TRANSFER
d
LIMITED WARRANTY
This product is warranted to be free from defects in material and/or work-
manship for a period of three (3) years from date of original installation, not
to exceed 36 months from date of shipment from our factory.
Any component which proves to be faulty in material and/or workmanship
will be replaced or repaired (at the option of Prince Castle, Inc.) without
cost to the customer for parts or labor. This warranty covers on location
service (i.e. trip charges and/or mileage). Travel mileage is limited to 100
miles (200 kilometers-International) round trip (one trip warranty) from an
authorized service agency or its sub-service agency.
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this warranty.
• All labor shall be performed during regular work hours. Overtime premi-
um will be charged to the buyer.
• Damage caused by carelessness, neglect, and/or abuse (e.g., dropping,
tampering or altering parts, equipment damaged in shipment, by fire,
flood or an act of God) is not covered under this warranty.
DHB-BK41/43 541-531 Rev. B

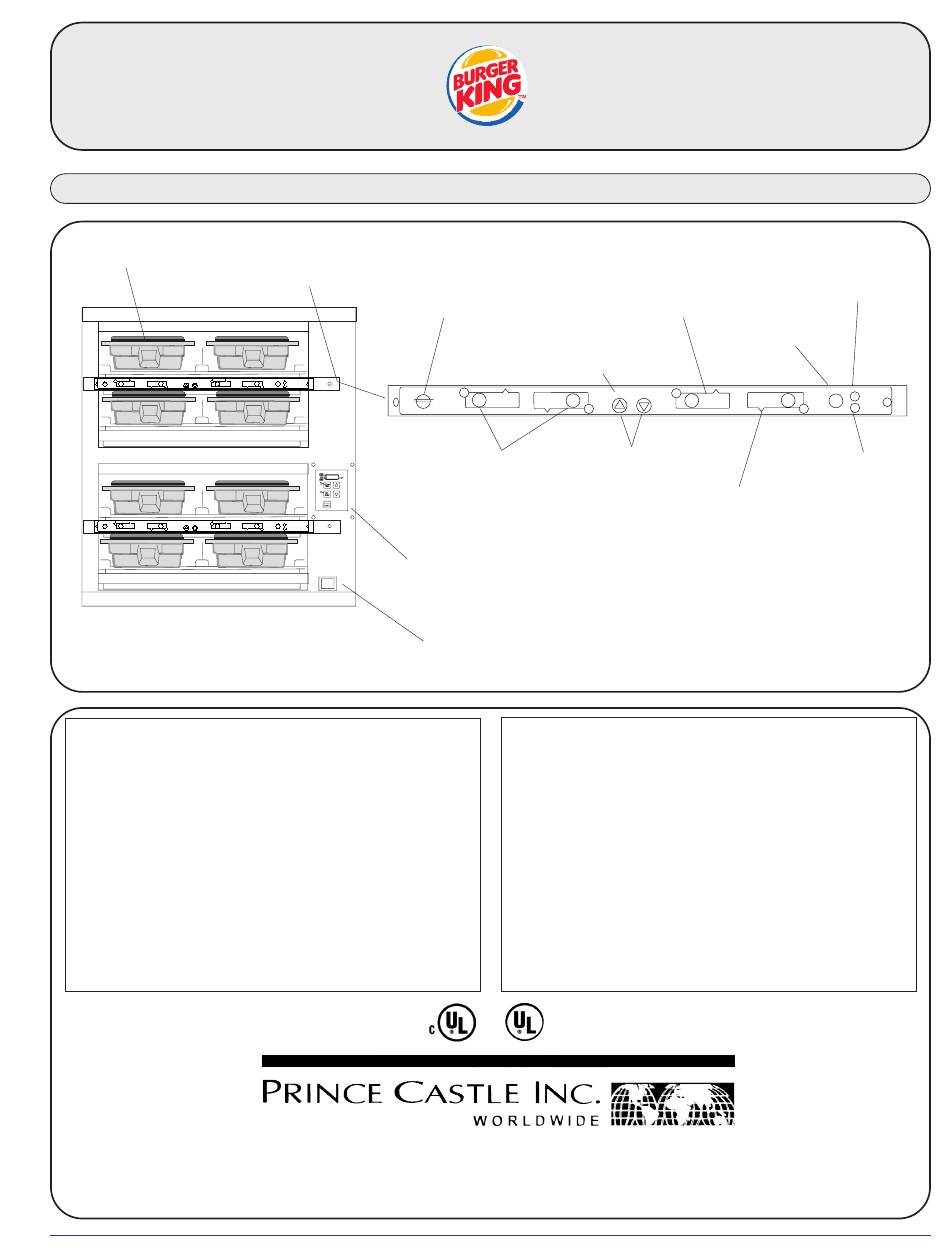

Product Identification

Button Bar
PRINCE CASTLE
LOGO Button
MENU
BKFT
REG
ENTER
Pan Buttons
U225
MENU
BKFT
REG
ENTER
Temperature Control
Power On/Off Switch
355 East Kehoe Blvd. • Carol Stream, IL 60188
Phone: 630-462-8800 • Toll Free: 1-800-PCASTLE
Fax: 630-462-1460 • www.princecastle.com
Upper Pan Displays
(qty. 4, each side)
LED Timers (tri-color)
(qty. 8, each side)
Transfer Button
TRANSFER
BACN
SAUS
UP and DOWN
Arrow Buttons
(qty. 8)
Panel

TABLE OF CONTENTS

Product Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-9
CastleNet Communications Network . . . . . . . . . . . . . . .10
Factory Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Product Holding Bin
Product Holding Bin
DHB-BK41/43
DHB-BK41/43
BKFT (Breakfast)
LED
MENU/ENTER
Button
MENU
EGGS
BISC
ENTER
REG (Regular Menu)
LED
Lower Pan Displays
(qty. 4, each side)
Printed in USA 0802 ©2002
BKFT
REG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Burger King DHB-BK41 and is the answer not in the manual?

Questions and answers

Summary of Contents for Prince Castle Burger King DHB-BK41

  • Page 1: Table Of Contents

    Any component which proves to be faulty in material and/or workmanship will be replaced or repaired (at the option of Prince Castle, Inc.) without Installation ........2 cost to the customer for parts or labor.
  • Page 2: Safety Information

    EXTERNAL EXTERNAL EXTERNAL Prince Castle reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. Printed in USA 0802 © 2002...
  • Page 3: Operation

    Product Holding Bin DHB-BK41/43 Operation Press all PAN Buttons Turn power On/Off switch to ON position. Load pan covers (if used) onto pan racks and insert racks into the unit. MENU BKFT EGGS EGGS Allow 30 minutes for ENTER heaters to reach operating temperature.
  • Page 4: Cleaning

    Press to display actual temperature for the selections POINT selected heater. LED will be lit when actual tem- perature is displayed. PRINCE CASTLE LOGO BUTTON SETPOINT BUTTON & LED Press to enter Press to display setpoint temperature of a temperature selections selected heater.
  • Page 5 SET- POINT POINT Press the UP or DOWN Arrow Buttons until the desired Press the Prince Castle Logo Button to save the new setpoint setpoint temperature is displayed value. Repeat steps 2—5 to change the setpoint for any other heater.
  • Page 6: Programming

    A. Press the PAN button next to the display to be changed. The LED will change from red to yellow and the display will B. Press the PRINCE CASTLE LOGO button to exit the change from PROG to the assigned menu item.
  • Page 7 A. The SET PRODUCT TIME menu is used to change the Hold & Cook-More times. B. Press and hold the PRINCE CASTLE LOGO button, then immediately press and hold the MENU/ENTER button until the display shows one of the programming menus.
  • Page 8 A. The EDIT PRODUCT NAME menu is used to change a default product name to one of your own choosing. B. Press and hold the PRINCE CASTLE LOGO button, then immediately press and hold the MENU/ENTER button until the display shows one of the programming menus.
  • Page 9 A. The SET MAXIMUM TRANSFER TIME menu is used to set the amount of time allowed to make a product transfer from one pan to another. B. Press and hold the PRINCE CASTLE LOGO Button, then immediately press and hold the MENU/ENTER Button until the display shows one of the programming menus.
  • Page 10: Castlenet Communications Network

    ® Telephone jack plugs are located on the back of the unit. The Prince Castle DHB-BK Bins and Retro Bun Timer and New Bun Connect the units using the cables provided as shown here. Cabinet Timers can be inter-connected to form the CastleNet ®...
  • Page 11: Factory Presets

    Product Holding Bin DHB-BK41/43 Factory Presets Product Menu Details Product Display Hold Cook-More Name Minutes Minutes Eggs EGGS Biscuits BISC Sausage SAUS French Toast FR-T Fish FISH Chicken Crisp CRSP Chicken Patty CHKN Chicken Tenders TEND Burgers BURG Whoppers WHPR BK Broiler -BK- Bacon...
  • Page 12: Troubleshooting

    Product Holding Bin DHB-BK41/43 Troubleshooting Problem Possible Cause Corrective Action Open relay. Circuit inoperable. Replace power circuit board. Display flashes Opn & rEL. Replace power circuit board. Shorted relay. Circuit inoperable. Display flashes SHr & rEL. Open heater. Test heater resistance (150.2 Ohms). Replace heater if necessary.
