HermanMiller Canvas Office Landscape Architectural Foot Installation And Disassembly For Recycling Instructions

Download this manual

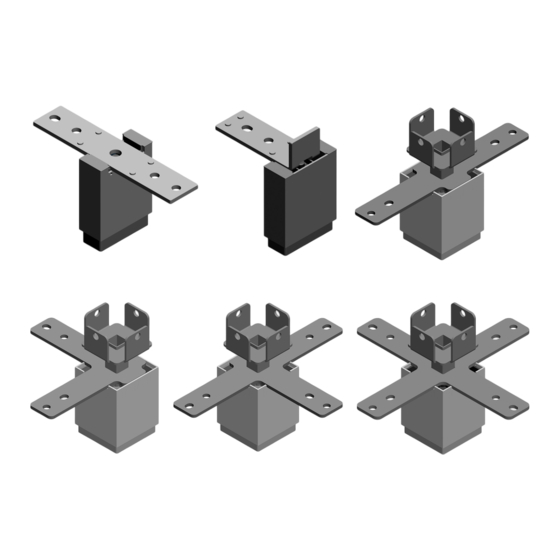

Parts Included:

Shared, Frame-To-Frame Connection

2-Way 90 Degree Connection

Angle Bracket

Tools Required:

9/16 Socket

Rachet Wrench

® Y, Z, Action Office and Vivo are among the registered trademarks of Herman Miller, Inc.

Sense, Setu, Tu, Traverse and Sayl are among the trademarks of Herman Miller, Inc.

Illustrations and specifications are based on the latest product information available at the time of publication.

The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.

Canvas Office Landscape

and Disassembly for Recycling Instructions

End-Of-Frame

3-Way 90 Degree Connection

Hex Head Machine Screw

(Black - 2 1/4" Long)

Hardware Pack

9/16 Wrench

Torque Wrench

Architectural Foot Installation

™

2-Way 180 Degree Connection

4-Way 90 Degree Connection

Hex Head Cap Screw

(Silver - 2 1/2 Long)

Safety Glasses

Hex Nut

Part no. 1b6z0s rev C.

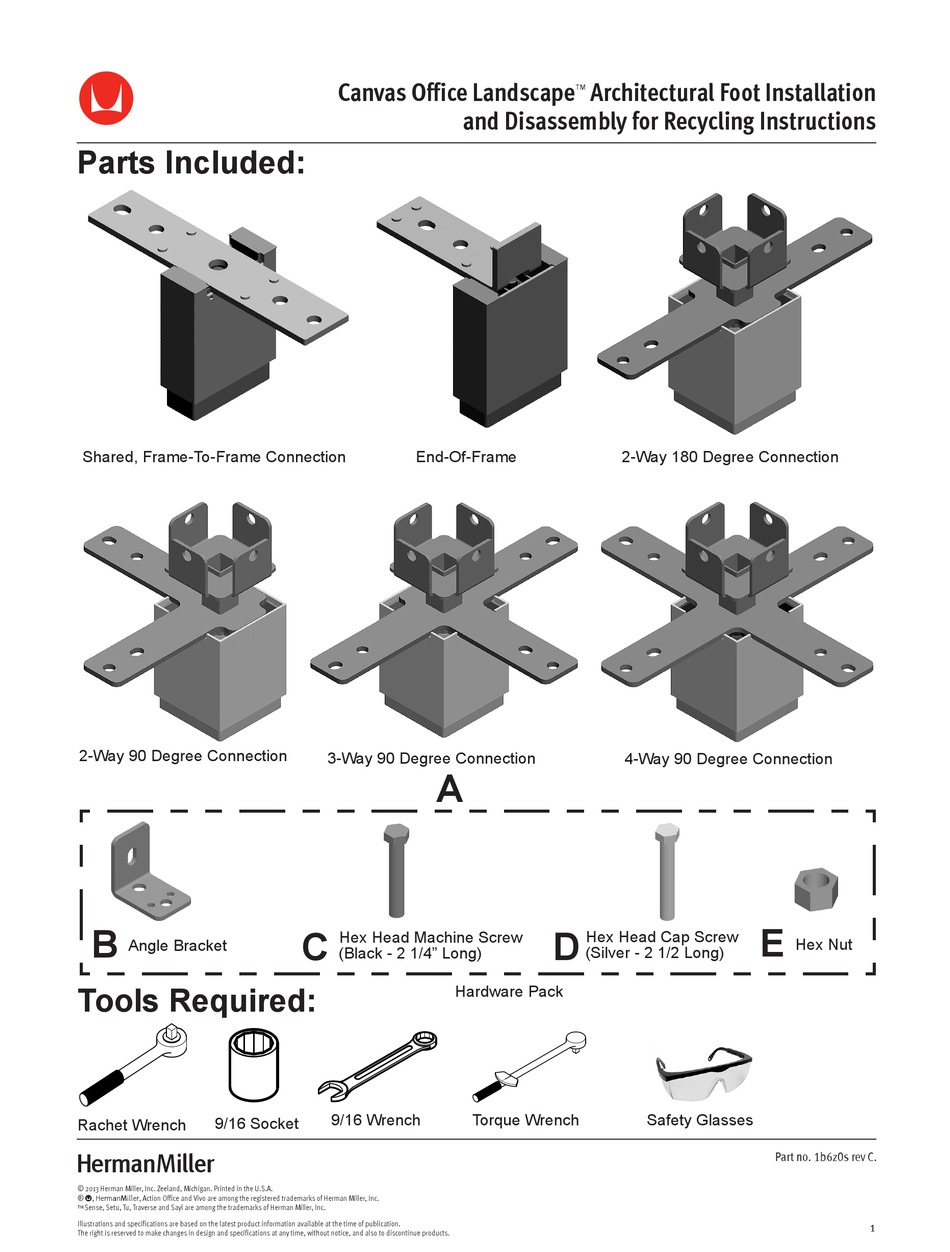

Page 1 Canvas Office Landscape Architectural Foot Installation ™ and Disassembly for Recycling Instructions Parts Included: Shared, Frame-To-Frame Connection End-Of-Frame 2-Way 180 Degree Connection 2-Way 90 Degree Connection 3-Way 90 Degree Connection 4-Way 90 Degree Connection Hex Head Cap Screw Hex Head Machine Screw Hex Nut Angle Bracket (Silver - 2 1/2 Long)
Page 2 Assembly Instructions: End-Of-Frame Foot Shared, Frame to Frame Foot: End Trim Frame Bottom Rail Bottom Rail Frame Frame to Frame Connector Kit Foot Cover End-Of Frame: Place Foot(A) under frame. Place Angle Bracket(B) on top of bottom rail of frame. Insert Hex Head Machine Screws(C) from bottom up thru frame.
Page 3 2-Way 180 Degree Foot Frame Frame Bottom Rail Bottom Rail 2-Way 180 Degree: Place Foot(A) under frames. Place Angle Brackets(B) on top of bottom rail of frames. Insert Hex Head Machine Screws(C) from bottom up thru frames. Install Hex Nuts(E) onto Screws. Insert Hex Head Cap Screws(D) thru frames.
Page 4 3-Way, 4-Way 90 Degree Foot: Frame Bottom Rail 3-Way (shown), 4-Way 90 Degree: Place Foot(A) under frames. Place Angle Brackets(B) on top of bottom rail of frames. Insert Hex Head Machine Screws(C) from bottom up thru frames. Install Hex Nuts(E) onto Screws. Insert Hex Head Cap Screws(D) thru frames.
