HermanMiller
Canvas Channel Structural
Foot Installation and Disassembly
for Recycling Instructions

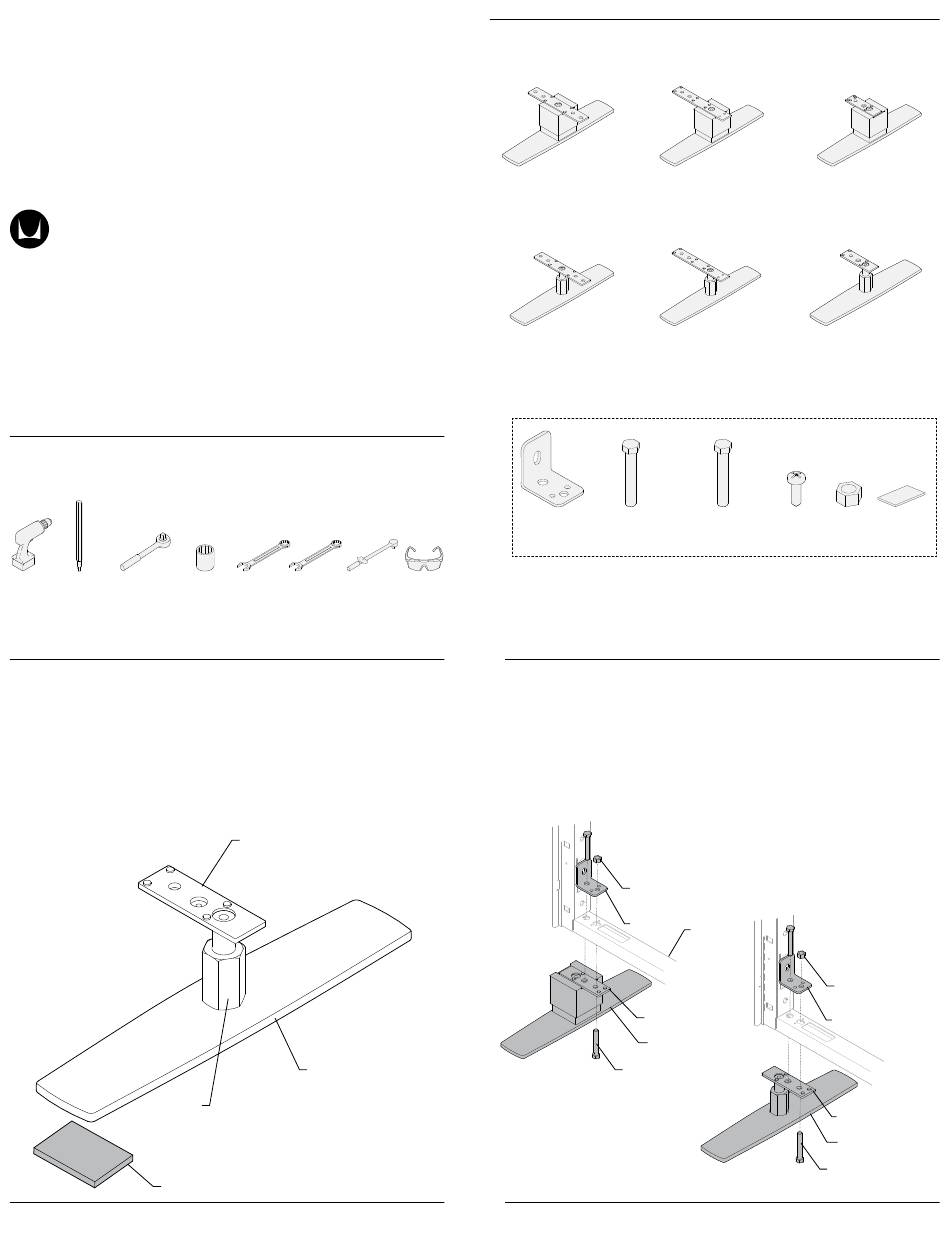

How to assemble your structural foot

Tools Required

Power
#2 Phillips Bit
Ratchet
9/16" Socket
Driver

Pre - Assembly Instructions:

Step 1

1.1 Ensure the foot base and foot mounting plate are aligned as shown in the
parts section.
1.2 If not rotate foot base to align as shown.
1.3 Tighten Adapter against the foot base to ensure proper assembly.
Adapter
Shim
HermanMiller for Canvas Channel Structural Foot Installation Instructions
1-1/4"
9/16"
Torque
Safety
Wrench
Wrench
Wrench
Glass
Foot Mounting
Plate
Foot Base

Parts Included

Shared Structural Foot -
6" From End Structural Foot -
Open Base
Shared Structural Foot -
6" From End Structural Foot -
To The Floor
Angle Bracket
Hex Head
Machine Screw
(Black - 2/14" Long)

Assembly Instructions:

Step 2

End-Of-Frame Structural Foot
2.1 Place Foot under frame. Place Angle Bracket on top of
bottom rail of frame. Insert Hex Head Machine Screws from
bottom up thru frame. Install Hex Nuts onto Screws. Align Foot
Cover with End Trim before Tightening. Torque screws to 200 in-lbs.
Hex Nut
Angle Bracket
Foot Mounting
Plate
End of Frame Foot
(Open Base)
Hex Head
Machine Screw
1
1BKTM3 rev C
End of Frame Structural Foot -
Open Base
Open Base
End of Frame Structural Foot -
To The Floor
To The Floor
Tapping
Hex Head
Hex Nut
Cap Screw
Screw
(Silver - 2 1/2 Long)
Hardware Pack
Frame
Hex Nut
Angle Bracket
Foot Mounting
Plate
End of Frame Foot
(To the Floor)
Hex Head
Machine Screw
Assembly Instructions
Shim
