Table of Contents

Y

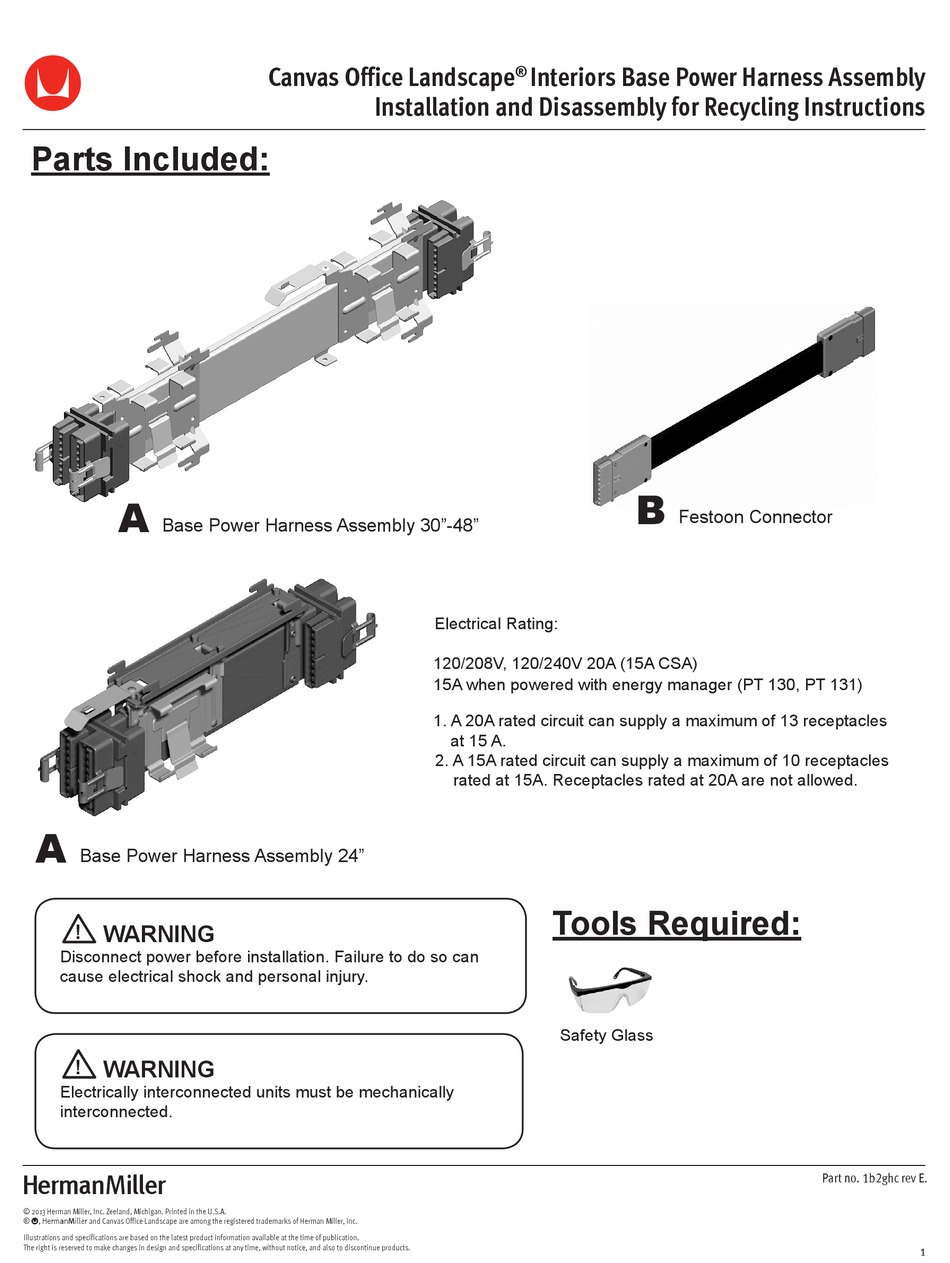

Parts Included:

A
Base Power Harness Assembly 30"-48"
A
Base Power Harness Assembly 24"
!
WARNING
Disconnect power before installation. Failure to do so can
cause electrical shock and personal injury.
!
WARNING
Electrically interconnected units must be mechanically
interconnected.
Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
® Y, Z and Canvas Office Landscape are among the registered trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
Canvas Office Landscape
Installation and Disassembly for Recycling Instructions
Electrical Rating:
120/208V, 120/240V 20A (15A CSA)
15A when powered with energy manager (PT 130, PT 131)
1. A 20A rated circuit can supply a maximum of 13 receptacles
2. A 15A rated circuit can supply a maximum of 10 receptacles
Interiors Base Power Harness Assembly
®
at 15 A.
rated at 15A. Receptacles rated at 20A are not allowed.

Tools Required:

Safety Glass
B
Festoon Connector
Part no. 1b2ghc rev E.
1
