Canvas Vista Fixed Height Table
Installation and Disassembly for
Recycling Instructions
How to assemble Fixed Height Table

Tools Required

#2 Phillips
Power Driver
Bit

Instructions for A-Leg Desks

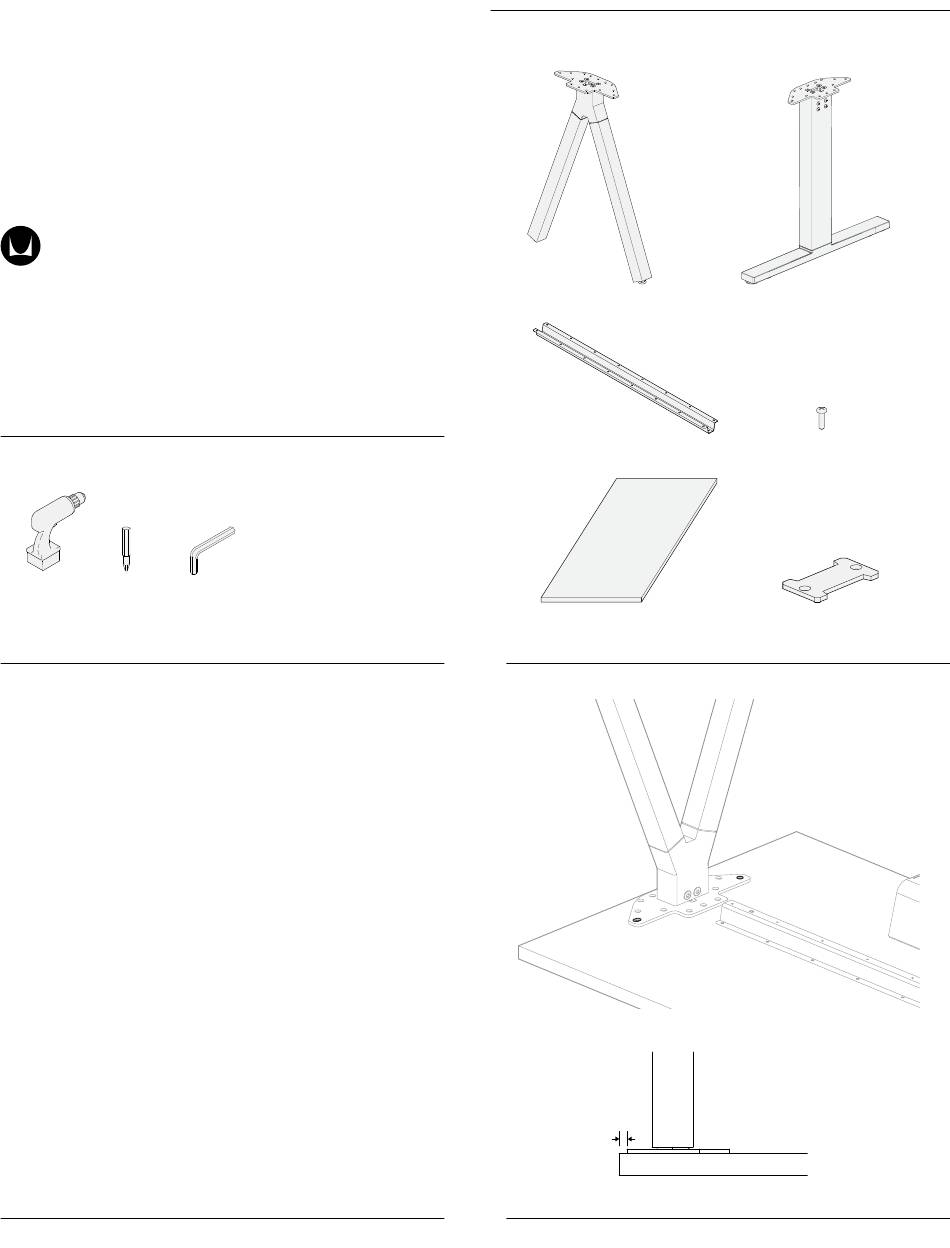

Step 1 - Assemble leg to worksurface

Note: Assemble legs to worksurface with the worksurface upside down.
1.1 Assemble upper stamping/plate to bottom of worksurface by
aligning the holes on the upper stamping with the predrilled holes in
the bottom of the worksurface. There are two pre-drilled holes which
align to the outer most holes along the length of the upper plate.
Orient the upper stamping so that the small rectangular extended tab
in facing inboard (towards center of worksurface).
1.2 Use 14 screws from hardware kit to fasten the plate to the
worksurface. Repeat this step for the other leg.
Note: Outbound Leg location shown. Inbound leg location will be
approximately 8 1/2" in from the edge of the table. For the condition
where one leg is inbound, one leg is outbound, pre-drilled holes will
locate the inbound leg. The outbound leg will be centered on the
surface front to back and 1/2" in from the edge of the surface to the
edge of the top plate.
HermanMiller
Metric Allen
Wrench

Parts Included

FG2B1
FG696
FGX10
1/2"
1 1BMV2B rev A
FG2B2
Tapping Screw
Spacer
Installation Instructions
