HermanMiller

Canvas Vista UBI Shelf Installation and

Disassembly for Recycling Instructions

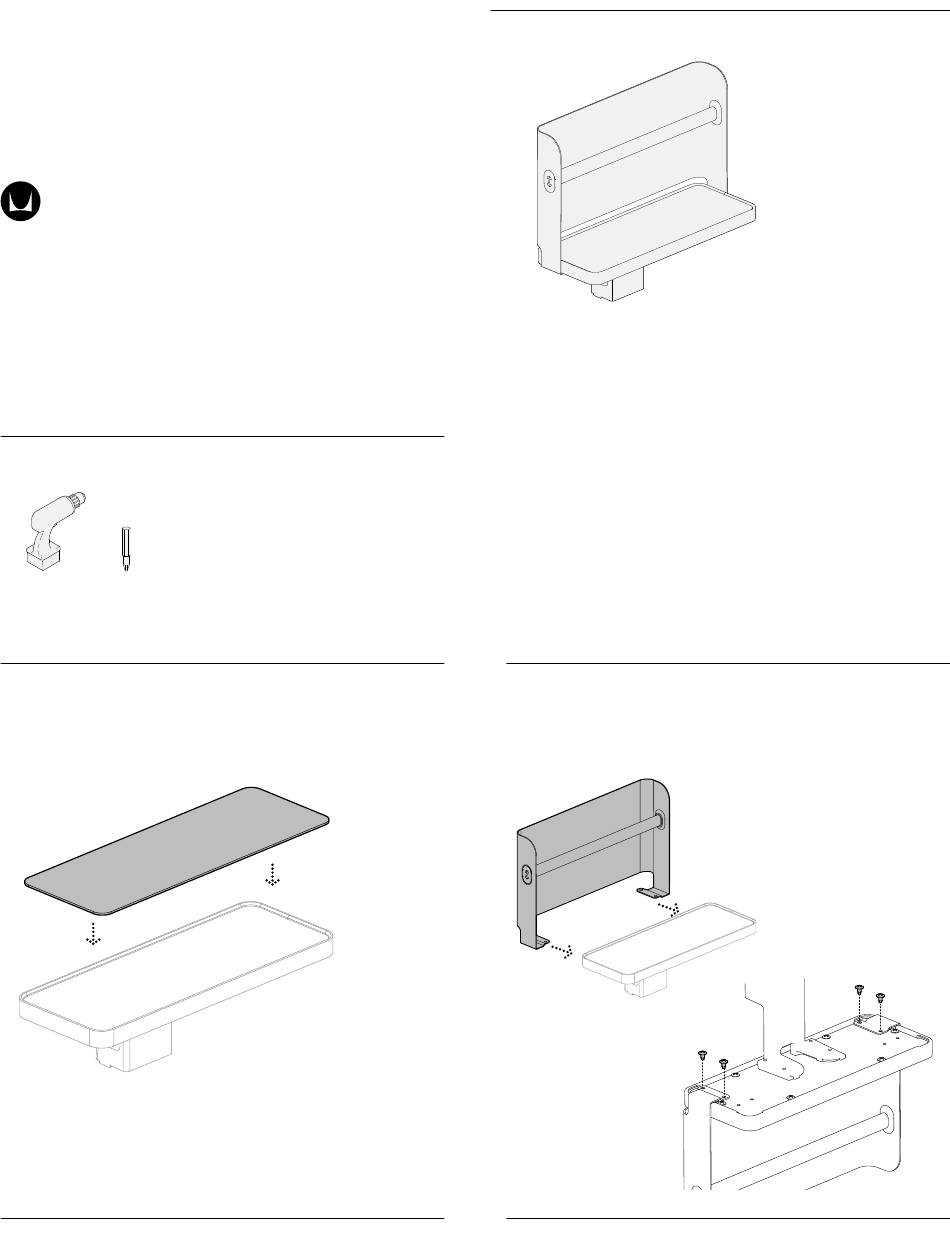

How to assemble UBI Shelf

Tools Required

#2 Phillips

Power Driver

Bit

Step 1

1.1 Remove protective backing from tape on bottom side of filler.

1.2 Align filler with shelf surface. Firmly press in place.

HermanMiller

Parts Included

YT300

Step 2

2.1 Slide brackets on backdrop assembly under shelf surface.

2.2 Secure backdrop to shelf surface with 4 truss head screws.

1BN3RH rev A

Installation Instructions

Page 1 Parts Included HermanMiller Canvas Vista UBI Shelf Installation and Disassembly for Recycling Instructions YT300 How to assemble UBI Shelf Tools Required #2 Phillips Power Driver Step 1 Step 2 2.1 Slide brackets on backdrop assembly under shelf surface. 1.1 Remove protective backing from tape on bottom side of filler.
Page 2 To disassemble product, reverse the above installation steps: For more information about our products and services please visit us at hermanmiller.com or call (800) 851 1196. ©2018 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 1BN3RH– A HermanMiller...
