HermanMiller
Canvas Vista Credenza Installation and
Disassembly for Recycling Instructions

How to assemble Canvas Vista Credenza

Tools Required

Power Driver
#2 Phillips
Bit

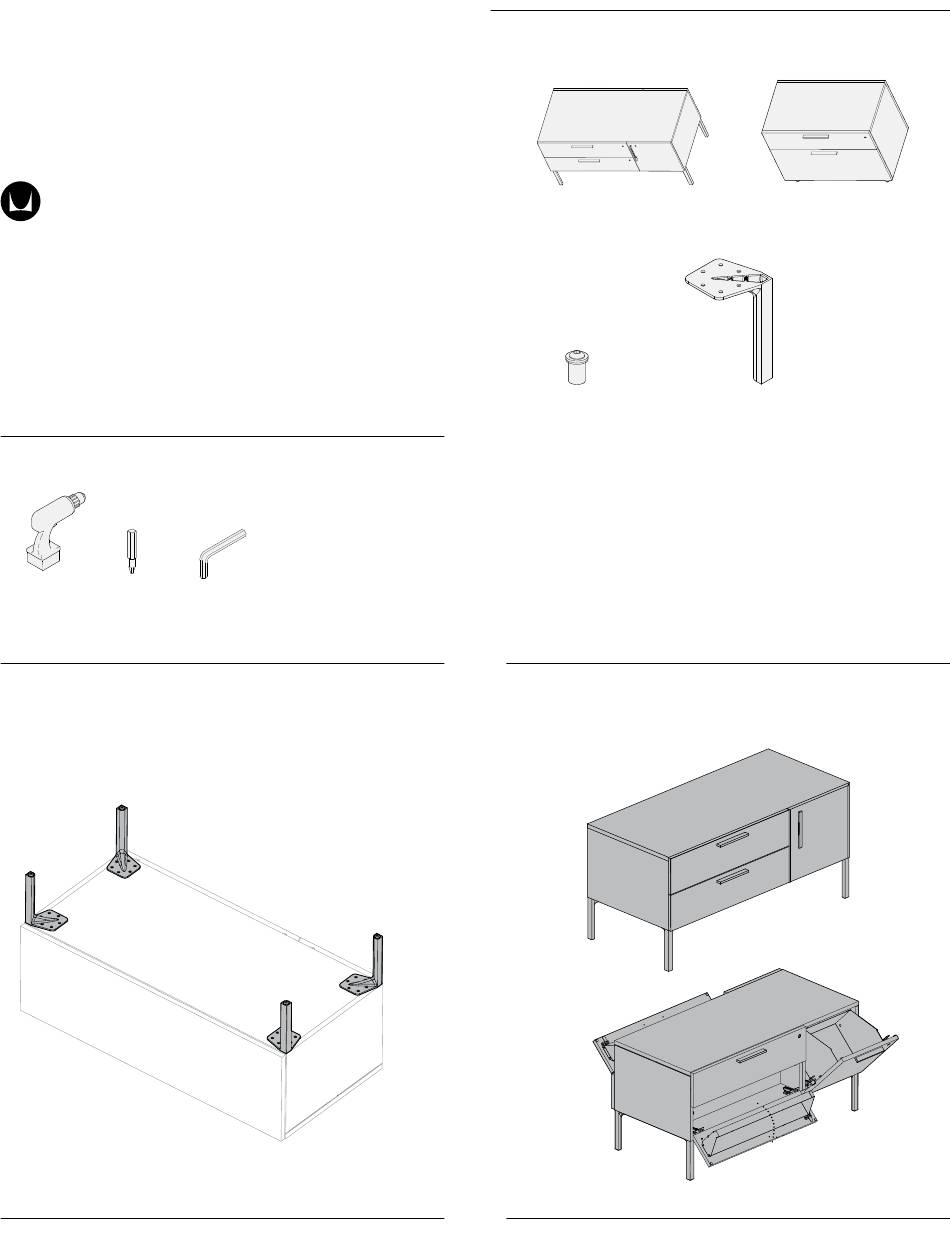

Step 1

1.1 Set driver on low torque setting to ensure that the screws do not
strip the wood during installation.
1.2 Place the legs in the corner and align with pilot holes, drive (6)
screws to fasten the legs to storage's bottom panel.
HermanMiller
Allen wrench
(1/8")

Parts Included

L2CFS
Tip Out Stud
Step 1
1.1 Once cabinet is leveled and in place, adjust the hinges on the tip
out bins to create consistent gaps and alignment of the drawer fronts.
1
1BNR09 rev A
L2CF
Storage Leg
Installation Instructions
