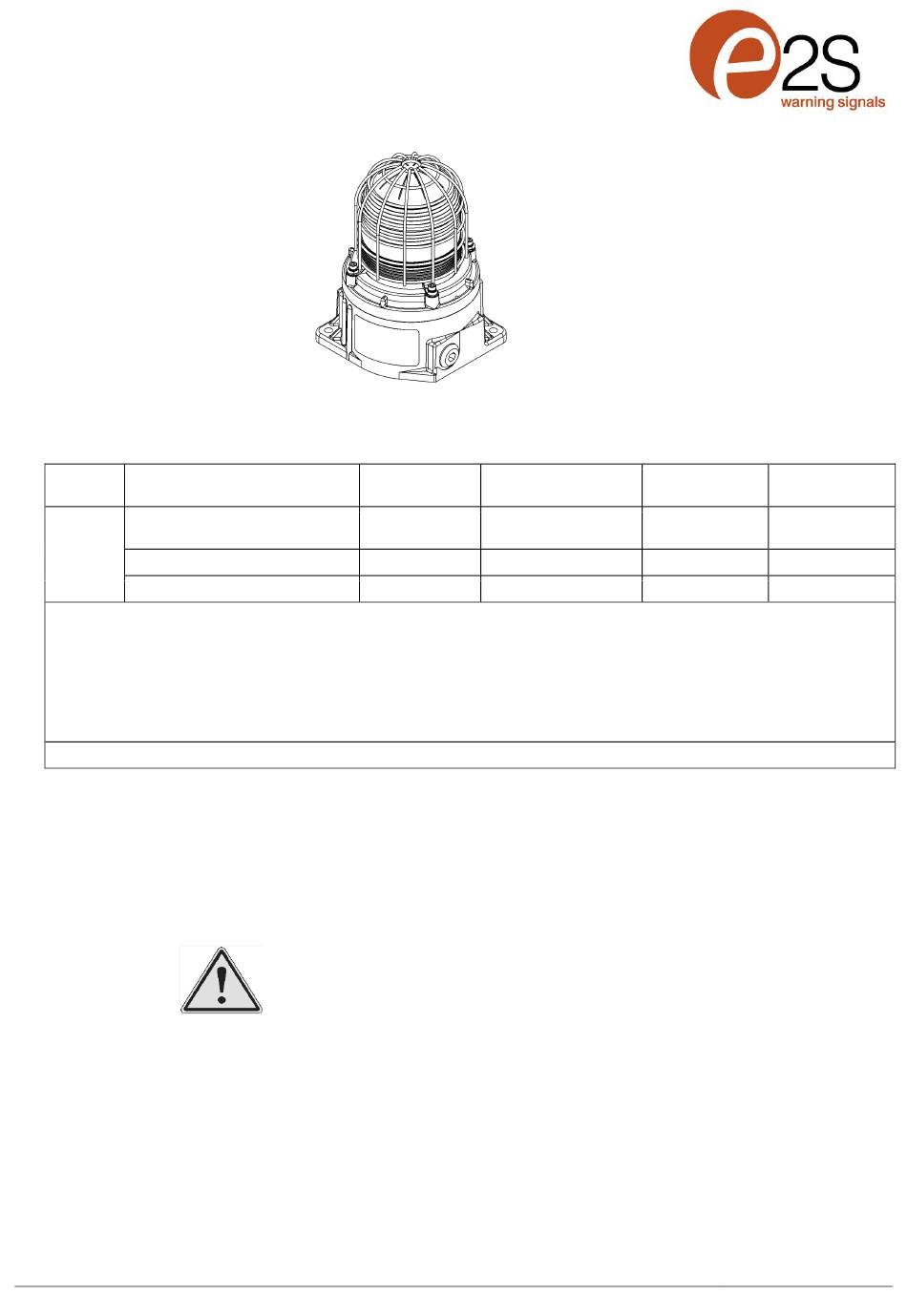

INSTRUCTION MANUAL
GNExB2LD2

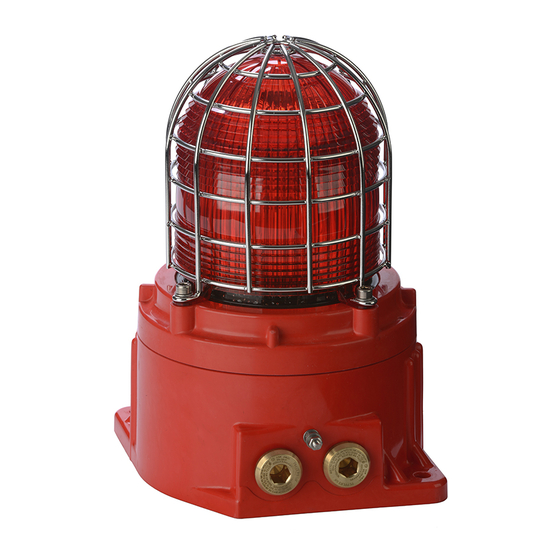

Flameproof LED Beacons
For use in Flammable Gas and Dust Atmospheres
1) Product Table
Standard
GNExB2LD2DC024
ATEX /
IECEx /
NEC /
GNExB2LD2AC115
CEC
GNExB2LD2AC230
*Rate at 1Hz
1
ATEX / IECEx Conformity
2
NEC / CEC Conformity
The table shows the input current taken by the various beacons.
A supply voltage variation of +/-10% outside the voltage range is permissible.
Nominal current at nominal voltage and 1Hz flash rate.
Max. rated current at worst case supply voltage and flash rate.
Table 1: Electrical Ratings
Ensure the system power supply is capable of providing the maximum current required for all beacons. Review associated cable
size, length and quantity of beacons on each circuit.
2) Warnings
• POTENTIAL ELECTROSTATIC CHARGING HAZARD.
• DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE
IS PRESENT.
• ALL ENTRIES M20 X 1.5MM.
• USE SUITABLE RATED CABLES AND CABLE GLANDS
IF TEMPERATURE EXCEEDS AS PER STANDARDS
INDICATIONS BELOW.
FOR ATEX / IECEx STANDARDS:
70ºC AT ENTRY OR 80ºC AT BRANCHING POINT.
FOR NEC / CEC STANDARDS:
60ºC AT ENTRY OR 60ºC AT BRANCHING POINT.
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D156-00-401-IS
Model
Nom. Voltage
Issue 3
19-10-21
GNExB2LD2
Voltage Range
18-54Vdc
24Vdc
18-30Vdc
115Vac
110-120Vac 50/60Hz
230Vac
220-240Vac 50/60Hz
3) Rating & Marking Information
All units have a rating label, which carries the following
important information:
• Unit Model.
• Voltage Range
• Nominal Voltage
• Max. Current
See Table 1 for electrical ratings of each Unit Model.
Nom. Operating
Current*
1
230mA
2
95mA
50mA
www.e2s.com
Tel: +44 (0)208 743 8880
Max Current
500mA
180mA
100mA
Sheet 1 of 6
