2 Introduction

Structure

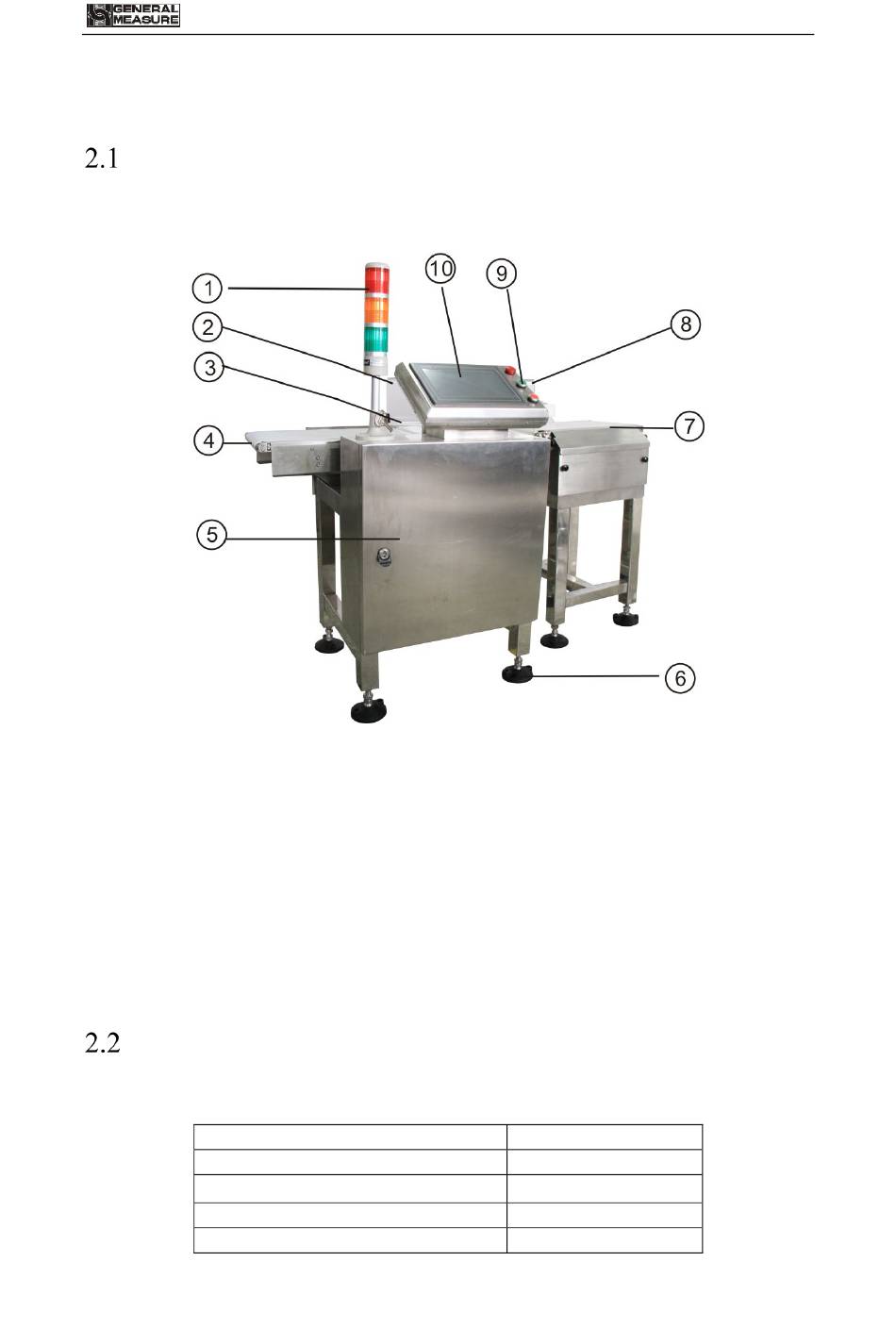

The checkweigher is available in different structure, an example is shown in the
figure.
Alarm lamp
○,
1
Wind shield
○,
2
Weighing belt
○,
3
Input belt
○,
4
Electric control cabinet
○,
5
Foot screws
○,
6
Output belt
○,
7
Rejector
○,
8
[Start belt] (green) and [Stop belt] (red) button
○,
9
Display and operating unit: 10＂touch screen
○,
10

Specifications

The specifications of checkweigher list in Table 2-1.
Max weighing range(g)
Max throughput(pieces/min)
Table 2-1 Specifications of checkweigher
Precision(g)
Interval(g)
Checkweigher user's manual
GM603B5
1200
±0.5
150
0.1
3
