Summary of Contents for Chauvet Professional Rogue R2X Wash VW

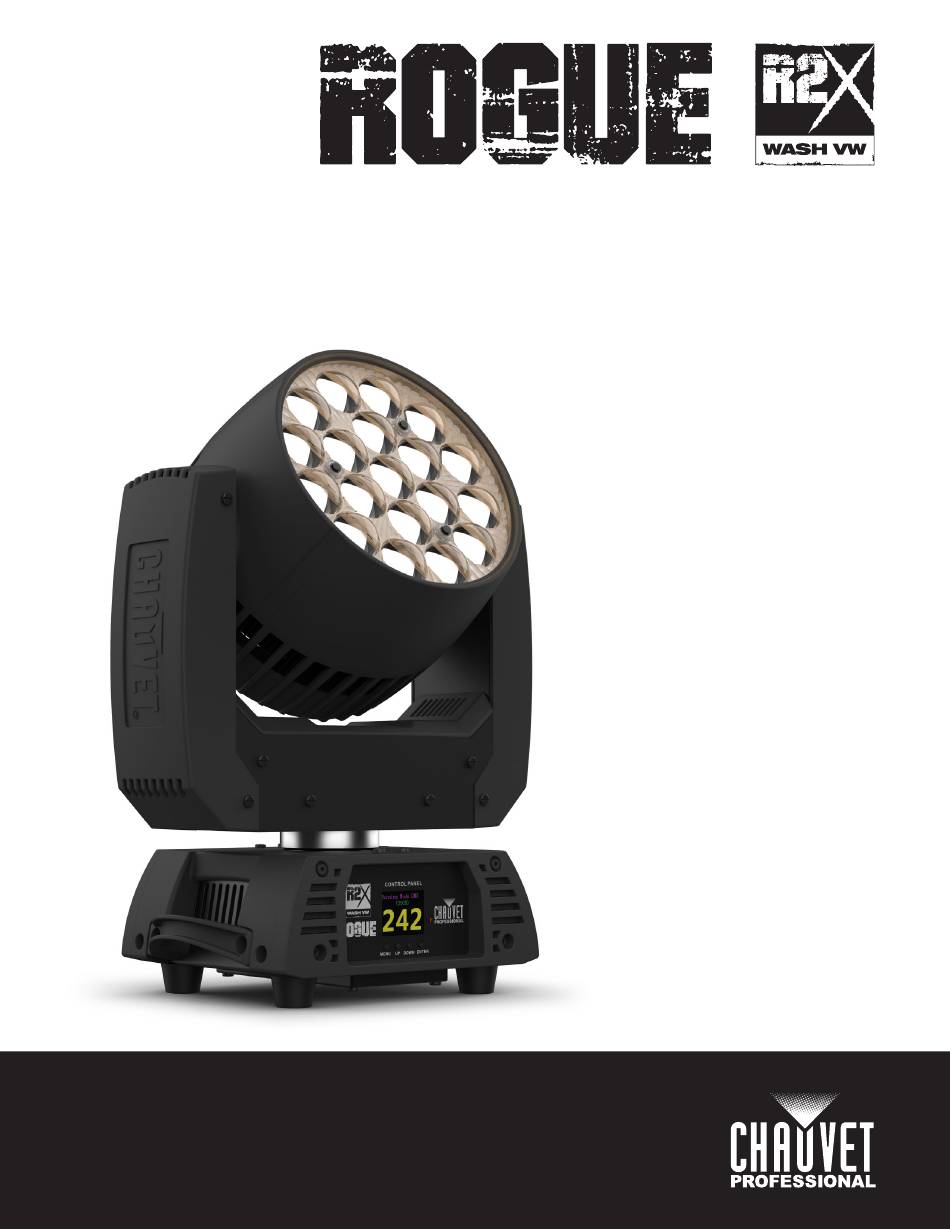

  • Page 1 User Manual...
  • Page 2 Edition Notes The Rogue R2X Wash VW User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Rogue R2X Wash VW as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, and Rogue are registered trademarks or trademarks of Chauvet &...

  • Page 3: Table Of Contents

    Control Panel Description..............Control Options..................Programming ..................Configuration (DMX)................Control Personalities................Starting Address ..................Menu Map.................... DMX Values..................36CH......................36CH MS ....................34CH......................23CH......................23CH MS ....................18CH......................15CH......................Preset Color Temperature ............... Rogue R2X Wash VW User Manual Rev. 3...
  • Page 4 Reset Function..................Factory Reset ..................Test Mode.................... Auto Test ....................Manual Test ..................... System Information................Offset Mode (Zero Adjust) ..............5. Maintenance................Product Maintenance................6. Technical Specifications ............Returns.................... Contact Us ..................Rogue R2X Wash VW User Manual Rev. 3...

  • Page 5: Before You Begin

    LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product and limit the product’s overall intensity. Rogue R2X Wash VW User Manual Rev. 3 Page 1 of 44...

  • Page 6: Safety Notes

    The minimum ambient temperature is -22°F (-30°C). Do not operate the product at lower temperatures. • In the event of a serious operation problem, stop using this product immediately! If your Chauvet product requires service, contact Chauvet Technical Support. Page 2 of 44 Rogue R2X Wash VW User Manual Rev. 3...

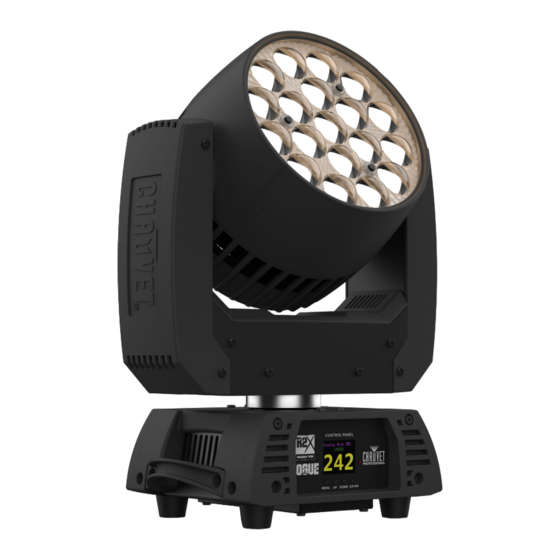

  • Page 7: Introduction

    2600 to 6075K. The Rogue R2X Wash VW uses 19 (25 W) Warm White and Cool White LEDs, offering five zones of LED control for pixel-mapping effects, as well as built-in automated programs.

  • Page 8: Product Dimensions

    144 mm 306 mm 6.79 in 172 mm 11.26 in 286 mm 15.67 in 398 mm 3.77 in 96 mm 8.58 in 10.39 in 218 mm 264 mm Page 4 of 44 Rogue R2X Wash VW User Manual Rev. 3...

  • Page 9: Setup

    Power Linking The product supports power linking of up to 3 Rogue R2X Wash VW products at 100 V, up to 4 products at 120 V, up to 7 products at 208, or up to 8 products at 230 or 240 V. This product comes with a power input cable.

  • Page 10: Mounting

    When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The Rogue R2X Wash VW comes with a bracket to which you can attach a mounting clamp directly. Mounting clamps are sold separately. Make sure the clamps are capable of supporting the weight of this product.

  • Page 11: Operation

    <ENTER> Navigates downward through the menu list or decreases the numeric value when in a function Control Options Set the Rogue R2X Wash VW starting address in the 001–512 DMX range. This enables control of up to 9 products in the 36-channel personality.

  • Page 12: Menu Map

    Operation Menu Map Refer to the Rogue R2X Wash VW product page on www.chauvetprofessional.com for the latest menu map. Main Level Programming Levels Description Address 001–512 Sets the starting address 15CH 18CH 23CH 23CH MS Selects the DMX personality 34CH...
  • Page 13 Sys Info Information Temperature _ _ _ Shows current product temperature in °C Shows number of hours product has been Fixture Time _ _ _ _ _ powered on Rogue R2X Wash VW User Manual Rev. 3 Page 9 of 44...

  • Page 14: Dmx Values

    000  255 Fine control (16-bit) Warm white 2 000  255 0–100% Warm white 2 fine 000  255 Fine control (16-bit) Cool white 2 000  255 0–100% Page 10 of 44 Rogue R2X Wash VW User Manual Rev. 3...
  • Page 15 121  140 5000K 141  160 5200K 161  180 5400K 181  200 5600K 201  220 5800K 221  240 6000K 241  255 No function Rogue R2X Wash VW User Manual Rev. 3 Page 11 of 44...
  • Page 16 224  231 Zone 1, 3, 4, 5 232  239 Zone 1, 2, 4, 5 240  247 Zone 1, 2, 3, 5 248  255 Zone 1, 2, 3, 4, 5 Page 12 of 44 Rogue R2X Wash VW User Manual Rev. 3...
  • Page 17 231  235 Program 44 236  240 Program 45 241  245 Program 46 246  250 Program 47 251  255 Program 48 Auto speed 000  255 0–100% Rogue R2X Wash VW User Manual Rev. 3 Page 13 of 44...
  • Page 18 125  129 Fan full speed 130  134 Fan auto speed 135  139 Fast dimmer curve 140  144 Smooth dimmer curve 145  255 No function Page 14 of 44 Rogue R2X Wash VW User Manual Rev. 3...

  • Page 19: 36Ch Ms

    121  140 5000K 141  160 5200K 161  180 5400K 181  200 5600K 201  220 5800K 221  240 6000K 241  255 No function Rogue R2X Wash VW User Manual Rev. 3 Page 15 of 44...
  • Page 20 224  231 Zone 1, 3, 4, 5 232  239 Zone 1, 2, 4, 5 240  247 Zone 1, 2, 3, 5 248  255 Zone 1, 2, 3, 4, 5 Page 16 of 44 Rogue R2X Wash VW User Manual Rev. 3...
  • Page 21 231  235 Program 44 236  240 Program 45 241  245 Program 46 246  250 Program 47 251  255 Program 48 Auto speed 000  255 0–100% Rogue R2X Wash VW User Manual Rev. 3 Page 17 of 44...
  • Page 22 000  255 Fine control (16-bit) Warm white 3 000  255 0–100% Warm white 3 fine 000  255 Fine control (16-bit) Cool white 3 000  255 0–100% Page 18 of 44 Rogue R2X Wash VW User Manual Rev. 3...

  • Page 23: 34Ch

    000  255 Fine control (16-bit) Cool white 2 000  255 0–100% Cool white 2 fine 000  255 Fine control (16-bit) Warm white 3 000  255 0–100% Rogue R2X Wash VW User Manual Rev. 3 Page 19 of 44...
  • Page 24 121  140 5000K 141  160 5200K 161  180 5400K 181  200 5600K 201  220 5800K 221  240 6000K 241  255 No function Page 20 of 44 Rogue R2X Wash VW User Manual Rev. 3...
  • Page 25 224  231 Zone 1, 3, 4, 5 232  239 Zone 1, 2, 4, 5 240  247 Zone 1, 2, 3, 5 248  255 Zone 1, 2, 3, 4, 5 Rogue R2X Wash VW User Manual Rev. 3 Page 21 of 44...
  • Page 26 236  240 Program 45 241  245 Program 46 246  250 Program 47 251  255 Program 48 Auto speed 000  255 0–100% Zoom 000  255 0–100% Page 22 of 44 Rogue R2X Wash VW User Manual Rev. 3...
  • Page 27 125  129 Fan full speed 130  134 Fan auto speed 135  139 Fast dimmer curve 140  144 Smooth dimmer curve 145  255 No function Rogue R2X Wash VW User Manual Rev. 3 Page 23 of 44...

  • Page 28: 23Ch

    Warm white 4 000  255 0–100% Cool white 4 000  255 0–100% Warm white 5 000  255 0–100% Cool white 5 000  255 0–100% Page 24 of 44 Rogue R2X Wash VW User Manual Rev. 3...
  • Page 29 224  231 Zone 1, 3, 4, 5 232  239 Zone 1, 2, 4, 5 240  247 Zone 1, 2, 3, 5 248  255 Zone 1, 2, 3, 4, 5 Rogue R2X Wash VW User Manual Rev. 3 Page 25 of 44...
  • Page 30 236  240 Program 45 241  245 Program 46 246  250 Program 47 251  255 Program 48 Auto speed 000  255 0–100% Zoom 000  255 0–100% Page 26 of 44 Rogue R2X Wash VW User Manual Rev. 3...

  • Page 31: 23Ch Ms

    205  209 On 210  224 Slow on, slow off (fast to slow) 225  229 On 230  244 Pulse strobe, fast to slow 245  255 On Rogue R2X Wash VW User Manual Rev. 3 Page 27 of 44...
  • Page 32 224  231 Zone 1, 3, 4, 5 232  239 Zone 1, 2, 4, 5 240  247 Zone 1, 2, 3, 5 248  255 Zone 1, 2, 3, 4, 5 Page 28 of 44 Rogue R2X Wash VW User Manual Rev. 3...
  • Page 33 236  240 Program 45 241  245 Program 46 246  250 Program 47 251  255 Program 48 Auto speed 000  255 0–100% Zoom 000  255 0–100% Rogue R2X Wash VW User Manual Rev. 3 Page 29 of 44...
  • Page 34 Warm white 4 000  255 0–100% Cool white 4 000  255 0–100% Warm white 5 000  255 0–100% Cool white 5 000  255 0–100% Page 30 of 44 Rogue R2X Wash VW User Manual Rev. 3...

  • Page 35: 18Ch

    121  140 5000K 141  160 5200K 161  180 5400K 181  200 5600K 201  220 5800K 221  240 6000K 241  255 No function Rogue R2X Wash VW User Manual Rev. 3 Page 31 of 44...
  • Page 36 224  231 Zone 1, 3, 4, 5 232  239 Zone 1, 2, 4, 5 240  247 Zone 1, 2, 3, 5 248  255 Zone 1, 2, 3, 4, 5 Page 32 of 44 Rogue R2X Wash VW User Manual Rev. 3...
  • Page 37 236  240 Program 45 241  245 Program 46 246  250 Program 47 251  255 Program 48 Auto speed 000  255 0–100% Zoom 000  255 0–100% Rogue R2X Wash VW User Manual Rev. 3 Page 33 of 44...
  • Page 38 125  129 Fan full speed 130  134 Fan auto speed 135  139 Fast dimmer curve 140  144 Smooth dimmer curve 145  255 No function Page 34 of 44 Rogue R2X Wash VW User Manual Rev. 3...

  • Page 39: 15Ch

    121  140 5000K 141  160 5200K 161  180 5400K 181  200 5600K 201  220 5800K 221  240 6000K 241  255 No function Rogue R2X Wash VW User Manual Rev. 3 Page 35 of 44...
  • Page 40 224  231 Zone 1, 3, 4, 5 232  239 Zone 1, 2, 4, 5 240  247 Zone 1, 2, 3, 5 248  255 Zone 1, 2, 3, 4, 5 Page 36 of 44 Rogue R2X Wash VW User Manual Rev. 3...
  • Page 41 236  240 Program 45 241  245 Program 46 246  250 Program 47 251  255 Program 48 Auto speed 000  255 0–100% Zoom 000  255 0–100% Rogue R2X Wash VW User Manual Rev. 3 Page 37 of 44...

  • Page 42: Preset Color Temperature

    135  139 Fast dimmer curve 140  144 Smooth dimmer curve 145  255 No function Preset Color Temperature Temperature 3200K 3600K 3800K 4000K 4600K 4800K 5000K 5200K 5400K 5600K 5800K 6000K Page 38 of 44 Rogue R2X Wash VW User Manual Rev. 3...

  • Page 43: Configuration (Settings)

    To set the PWM frequency: 1. Go to the Setup main level. 2. Select the PWM Option option. 3. Select from 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, or 15000Hz. Rogue R2X Wash VW User Manual Rev. 3 Page 39 of 44...

  • Page 44: Color Calibration

    2. Select the Factory Set option. Test Mode Auto Test To have the Rogue R2X Wash VW automatically test all functions one after the other: 1. Go to the Run Mode main level. 2. Select the Auto Test option. Manual Test To manually test an individual function of the Rogue R2X Wash VW: 1.

  • Page 45: Maintenance

    7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans with compressed air. Damage may result. Rogue R2X Wash VW User Manual Rev. 3 Page 41 of 44...

  • Page 46: Technical Specifications

    15, 18, 23, 34, or 36 channels Ordering Product Name Item Name Item Code UPC Number Rogue R2X Wash VW ROGUER2XWASHVW 08011685 781462220334 UL 1573 CSA C22.2 No. 166 E113093 Page 42 of 44 Rogue R2X Wash VW User Manual Rev. 3...

  • Page 47: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Rogue R2X Wash VW User Manual Rev. 3 Page 43 of 44...

  • Page 48: Contact Us

    Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Page 44 of 44 Rogue R2X Wash VW User Manual Rev. 3...
