- Page 1 User Manual Model ID: ROGUEOUTCAST1MBEAM...
- Page 2 Edition Notes The Rogue Outcast 1M Beam User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the Rogue Outcast 1M Beam as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, Rogue, Outcast, and Rogue Outcast are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
Tilt Reverse ......................16 Screen Reverse ....................16 Pan Angle......................16 Tilt Angle ......................16 BL.O. P/T Move ......................BL.O. Gobo Move ......................Display Backlight Timer..................16 Pulse Width Modulation ..................16 Rogue Outcast 1M Beam User Manual Rev. 1... - Page 4 System Information ..................Offset Mode (Zero Adjust)................5. Maintenance................Product Maintenance ..................Torque Measurements .................. Vacuum Test Measurements ................ Transporting on Truss or Racks..............6. Technical Specifications ............Contact Us ..................Warranty & Returns..................Rogue Outcast 1M Beam User Manual Rev. 1...
-
Page 5: Before You Begin
The product has XLR sockets for DMX input and output. • Notice: This control circuit is isolated and belongs to the Class 2 data port. The control circuit has a cumulative leakage current of less than 3.5 mA. Rogue Outcast 1M Beam User Manual Rev. 1... -
Page 6: Safety Notes
• In the event of a serious operating problem, stop using immediately. If this Chauvet product requires service, contact Chauvet Technical Support. Rogue Outcast 1M Beam User Manual Rev. 1... -
Page 7: Fcc Statement Of Compliance
LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Rogue Outcast 1M Beam User Manual Rev. 1... -
Page 8: Introduction

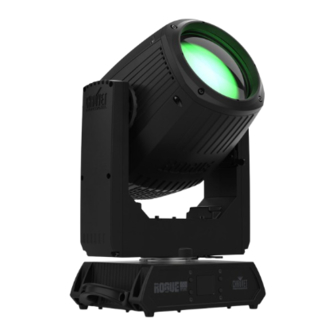

2. Introduction Description The Rogue Outcast 1M Beam is a Mint-powered RMB light engine set apart from the rest of the pack, offering a multi-color LED solution and great optics to produce sharp beams of the highest quality white light and color. Create stunning aerial effects with continuous 360 degree rotation, dual overlapping prisms, or pencil-thin beams from a selection of aperture gobos. -
Page 9: Product Dimensions
8.62 in 8.07 in 220 mm 205 mm 17.9 in 11.54 in 455 mm 293 mm 10.43 in 265 mm 3.27 in 11.9 in 7.56 in 83 mm 302 mm 192 mm Rogue Outcast 1M Beam User Manual Rev. 1... -
Page 10: Setup
4. Screw the fuse holder cap back in place and reconnect power. Power Linking It is possible to power link Rogue Outcast 1M Beam products. See the table below for the current draw at each voltage and frequency: 100 V, 60 Hz... -
Page 11: Usb Software Update
Setup USB Software Update The Rogue Outcast 1M Beam allows for software update through USB using the built-in USB port. To update the software using a USB type C flash drive, do the following: 1. Power on the fixture and plug the flash drive into the USB port. -
Page 12: Mounting
When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The Rogue Outcast 1M Beam comes with 105 mm Omega brackets. The user can directly attach mounting clamps to these Omega brackets. Make sure the clamps are capable of supporting the weight of this product. -
Page 13: Operation
Passcode When prompted, enter the following passcode: <UP>, <DOWN>, <UP>, <DOWN>, <ENTER>. It is not possible to change this passcode. Menu Map Refer to the Rogue Outcast 1M Beam product page on www.chauvetprofessional.com for the latest menu map and software. - Page 14 Uses maximum output values White Sets custom red LED maximum value Mode Custom GREEN 000–255 Sets custom green LED maximum value BLUE Sets custom blue LED maximum value Enables/disables software update using USB Update Rogue Outcast 1M Beam User Manual Rev. 1...
-
Page 15: Dmx Configuration
The highest selectable starting address for 21CH is 492. • The highest selectable starting address for 25CH is 488. To set the starting address in DMX mode: 1. Go to the Address main level. 2. Select the starting address (001–512). Rogue Outcast 1M Beam User Manual Rev. 1... -
Page 16: Dmx Channel Assignments And Values
200 238 Red decreases (red 100–0%, green 0%, blue 100%) Blue (red 0%, green 0%, blue 100%) 240 247 Color fade, fast to slow 248 255 Color snap, fast to slow Rogue Outcast 1M Beam User Manual Rev. 1... - Page 17 128 189 Clockwise rotation, fast to slow Prism 1 rotation 190 193 Stop 194 255 Counterclockwise rotation, slow to fast 000 004 No function Prism 2 005 255 Prism index Rogue Outcast 1M Beam User Manual Rev. 1...
- Page 18 176 183 White mode on 184 191 White mode off 192 199 Fan mode Full 200 207 Fan mode ECO 208 215 Fan mode Auto 216 255 No function Rogue Outcast 1M Beam User Manual Rev. 1...
-
Page 19: Gobo Wheel
Operation Gobo Wheel Rogue Outcast 1M Beam User Manual Rev. 1... -
Page 20: Settings Configuration
Dimmer Curve To set the dimmer curve: 1. Go to the Setup main level. 2. Select the Dimmer Curve option. 3. Select the dimmer curve, from Linear, Square, I Squa, or SCurve. Rogue Outcast 1M Beam User Manual Rev. 1... -
Page 21: Fan Mode
2. Select No (do not reset) or Yes (reset). Test Mode Auto Test To have the Rogue Outcast 1M Beam automatically test all functions one after the other: 1. Go to the Run Mode main level. 2. Select the Auto Test option. -
Page 22: System Information
3. Select the “zero” position to adjust, from PAN, TILT, GOBO, FOCUS, PRISM1, PRISM2, PRISM2 ROTATE, FROST, DIMMER R, DIMMER G, DIMMER B, RDM4, RDM5, or RDM6. 4. Adjust the “zero” position for the selected function from 000–255. Rogue Outcast 1M Beam User Manual Rev. 1... -
Page 23: Maintenance
Arm cover screws 25.5 22.1 Allen Key screws head covers 25.5 22.1 Vacuum Test Measurements Use the IP Tester from Chauvet Professional to ensure the product has been reassembled correctly by following the information below: Parameters Values Method Positive Test pressure 2.18 kPa... -
Page 24: Transporting On Truss Or Racks
This is to prevent undue stress on the tilt locks and limit the amount of off-axis bounce on internal components. Rogue Outcast 1M Beam User Manual Rev. 1... -
Page 25: Technical Specifications
DMX I/O Connector Channel Range 5-pin XLR 21 or 25 Ordering Product Name Item Name Item Code UPC Number Rogue Outcast 1M Beam ROGUEOUTCAST1MBEAM 08012301 81462226497 UL 1573 CSA C22.2 No. 166 E113093 Rogue Outcast 1M Beam User Manual Rev. 1... -
Page 26: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Rogue Outcast 1M Beam User Manual Rev. 1...
