- Page 1 User Manual...
- Page 2 Chauvet has no obligation to make, and does not commit to make, any such revisions.. The RDM2go User Manual Rev. 1 is the first edition of this manual. Go to Document for the latest version.
-
Page 3: Table Of Contents
Send Options ..................................... 14 Receive DMX ................................15 View incoming DMX Values ............................... 15 Cable Test................................... 15 Using the Cable Tester ................................15 Power Options ................................15 Using the Power Options ................................15 Information .................................. 15 RDM2go User Manual Rev. 1... - Page 4 Table of Contents 5. Technical Information ..........................16 Product Maintenance ..............................16 6. Technical Specifications ......................... 17 Returns ..................................18 Contact Us ..............................19 -ii- RDM2go User Manual Rev. 1...
-
Page 5: Before You Begin
Important installation or configuration information. Failure to comply with this information may keep the product from working. Useful information. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. RDM2go User Manual Rev. 1... -
Page 6: Safety Notes
The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at a higher temperature. · In case of a serious operating problem, stop using this product immediately! In the unlikely event that your Chauvet product requires service, contact Chauvet Technical Support. RDM2go User Manual Rev. 1... -
Page 7: Introduction

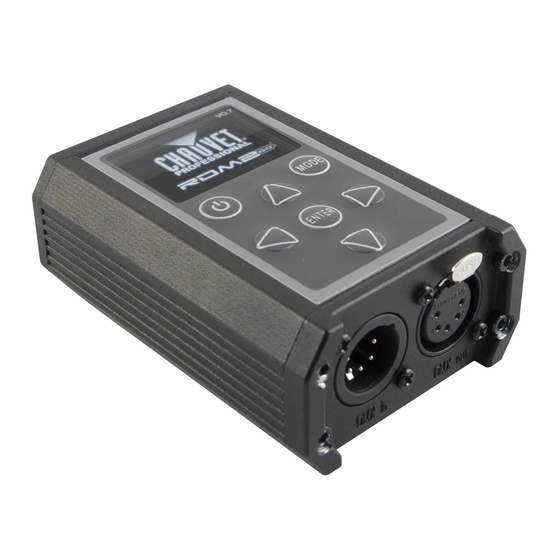

The RDM2go also features a built in DMX cable integrity checker, and an easy to read OLED display. The RDM2go easily recharges via a standard micro USB jack and comes with a convenient carry pouch and connector convertors. -
Page 8: Overview
Introduction Overview Micro USB Input Power On Control Panel Top View DMX In Front View Bottom View DMX Out Cable Storage 5-to 3-pin Adaptor 3-to 5-pin Adaptor Carry Pouch RDM2go User Manual Rev. 1... -
Page 9: Dimensions
Introduction Dimensions 2.76 in 70 mm 3.93 in 1.53 in 100 mm 39 mm 6.46 in 164 mm 4.80 in 122 mm RDM2go User Manual Rev. 1... -
Page 10: Setup
Charge or discharge the battery to approximately 50% of capacity at least once every six months. · Charge or discharge the battery to approximately 50% of capacity before storage. · Store the battery at temperatures between 41 °F and 68 °F (5 °C and 20 °C). RDM2go User Manual Rev. 1... -
Page 11: Connection
Setup You can link the RDM2go to other DMX controlled products using a 5-pin DMX connection. If Connection using other DMX-compatible products with the RDM2go, you can control each individually with a single DMX controller. If you are not familiar with or need more information about DMX standards, Master/Slave connectivity, or the DMX cables needed to link this product to a DMX controller, download the DMX Primer from the Chauvet website. -
Page 12: Operation
Press <ENTER> to select. In this case, if there is another programming level, you will see that first option, or you will see the selected value. · Press <MODE> repeatedly to exit to the previous level. RDM2go User Manual Rev. 1... -
Page 13: Menu Map
COOL WARM Determines the white balance when RGBTOW AMBE RGBTOW is active Dimmer works in linear mode DIM 1 DIMMER DIM 2 Dimmer works in non-linear mode, from fast to slow DIM 3 DIM 4 RDM2go User Manual Rev. 1... -
Page 14: Menu Map (Cont.)
End Of Set-up and edit the DMX sequence Sequence – Sequence – Delete Sequence No/Yes Deletes/reset the DMX sequence Store Scene Records current DMX values Scene 1–32 Load Scene Loads a previously recorded scene -10- RDM2go User Manual Rev. 1... -
Page 15: Menu Map (Cont.)
Product is powered off after 5 min of Options inactivity 10 Minute Product is powered off after 10 min of inactivity Cable Test Chart Bad Pin 2 Good Pin 1 Shorted to Pin 3 RDM2go User Manual Rev. 1 -11-... -
Page 16: Rdm
RDM compatible products. 1. Go to the RDM main level. 2. The RDM2go will scan for RDM compatible products, Discovering... will display on the screen. a. No Fixtures Found – No RDM compatible products were found. Be sure your connected products are RDM compatible check all connections and try again. -
Page 17: Dmx Values
6. Repeat steps 2 through 5 for the other white colors. 1. Go to Iumicode > SETTINGS > RESET. Reset to Factory 2. Select an option (YES/NO). Settings Details: The product will assume its default values as per the corresponding manual. RDM2go User Manual Rev. 1 -13-... -
Page 18: Send Dmx
8. Press <ENTER> 9. Repeat Steps 3 through 8 for additional channel adjustment. The RDM2go stores the last scene that was changed. To start with a clean scene, refer to section to set all the DMX channels to 0. -14-... -
Page 19: Receive Dmx
Tester 3. Press <ENTER>. This Main Level selection sets the amount of time the RDM2go remains turned on after the last Power Options user input. This auto-off option can be set to 1 Minute, 5 Minute, 10 Minute, or Off. Choosing Off means the product will stay on until the battery is exhausted. -
Page 20: Technical Information
6. Wipe any dirt or grime to the outside edges of the lens surface. 7. Gently polish the lens surfaces until they are free of haze and lint. Always dry the external surfaces thoroughly and carefully after cleaning them. -16- RDM2go User Manual Rev. 1... -
Page 21: Technical Specifications
Power cord plug USB-A Male USB-A Male Thermal Max. External Temperature Cooling System 113 °F (45 °C) Convection I/O Connectors Connector Type 5-pin XLR Sockets Ordering Product Name Item Code UPC Number RDM2go 03081093 781462214418 RDM2go User Manual Rev. 1 -17-... -
Page 22: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be the customer’s responsibility. FedEx packing or double-boxing is recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). -18- RDM2go User Manual Rev. 1... -
Page 23: Contact Us
Voice: +52 (728) 285-5000 Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. RDM2go User Manual Rev. 1...
