Summary of Contents for Chauvet Professional Rogue R2X Beam

  • Page 1 User Manual...
  • Page 2 Rogue R2X Beam. Trademarks CHAUVET, the Chauvet logo and Rogue R2X Beam are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.

  • Page 3: Table Of Contents

    Address ......................18 Run Mode...................... 18 DMX Personality ......................Auto Test........................Manual Test ........................Setup......................18 Pan Reverse ........................Tilt Reverse ........................Pan Angle........................Tilt Angle ........................BL.O.P/T Move....................... BL.O.Color Move......................Rogue R2X Beam User Manual Rev. 1 TOC 1 of 2...
  • Page 4 Mac 6 ..........................DMX Values ....................22 19CH ..........................5. Technical Information ..............Product Maintenance ..................28 6. Technical Specifications ............Photometrics Chart ..................30 7. Returns..................8. Contact Us .................. TOC 2 of 2 Rogue R2X Beam User Manual Rev. 1...

  • Page 5: Before You Begin

    Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Rogue R2X Beam User Manual Rev. 1 Page 3 of 32...

  • Page 6: Safety Notes

    40,000 to 50,000 hours. If extending this lifespan is vital, lower the operating temperature by improving the ventilation around the product, thus reducing the ambient temperature. In addition, limiting the overall projection intensity may extend the LEDs’ lifespan. Page 4 of 32 Rogue R2X Beam User Manual Rev. 1...

  • Page 7: Introduction

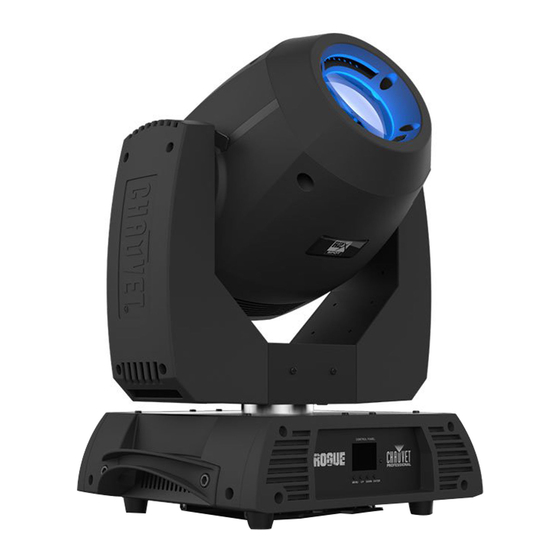

    NTRODUCTION Description The Rogue R2X Beam is the light cannon of the Rogue series, boasting an intense 134,000 lux at 15 meters from its 231 Watt Osram Sirius lamp. This fully-featured beam can be tighted down to 1 degree for extremely focused aerial effects, and comes with 14 fixed colors in a fully scrollable, variable speed color wheel, which also provides split-colors perfectly.

  • Page 8: Product Overview

    NTRODUCTION Product Overview Power Switch 5-pin DMX In/Out 3-pin DMX In/Out Power Input Fuse Control Panel Handle Mounting Points Lens Page 6 of 32 Rogue R2X Beam User Manual Rev. 1...

  • Page 9: Product Dimensions

    19.25 in 18.70 in 475 mm 8.86 in 225 mm 12.87 in 5.51 in 327 mm 140 mm 9.25 in 5.51 in 16.10 in 235 mm 140 mm 409 mm Rogue R2X Beam User Manual Rev. 1 Page 7 of 32...

  • Page 10: Setup

    Always replace the blown fuse with another of the same type and rating. DMX Linking You can link the Rogue R2X Beam to a DMX controller using a 5-pin DMX connection. If using other DMX- compatible products with this product, you can control each individually with a single DMX controller.

  • Page 11: Gobo Wheel

    ETUP Gobo Wheel The Rogue R2X Beam includes one gobo wheel with 17 fixed gobos plus open. The diagram shows the gobo number on the wheel, as numbered in the DMX Values tables. Open Rogue R2X Beam User Manual Rev. 1...

  • Page 12: Color Wheel

    ETUP Color Wheel The Rogue R2X Beam includes one color wheel with 14 fixed colors plus open (white), as indicated below. The diagram shows the color number on the wheel, as numbered in the DMX Values tables. Page 10 of 32...

  • Page 13: Lamp Replacement

    ETUP Lamp Replacement The Rogue R2X Beam is equipped with an Osram Sirius 231-W lamp. Follow the procedure below to safely change the lamp, Disconnect the product from power before opening. Procedure Turn the product off and disconnect it from power. Wait at least 15 minutes for the lamp to cool down.
  • Page 14 Remove the 2 wires connected to the lamp by the spade terminals.Using the lamp base, push the lamp to the left against the spring clips located on the left. Page 12 of 32 Rogue R2X Beam User Manual Rev. 1...

  • Page 15: Increasing The Lamp's Life

    DO NOT touch the lamp without wearing gloves to avoid leaving grease on the bulb or on the contacts that could reduce the lamp’s life. • ALWAYS change the lamp when it has reached its recommended lifespan to avoid the risk of lamp explosion. Rogue R2X Beam User Manual Rev. 1 Page 13 of 32...

  • Page 16: Mounting

    Procedure The Rogue R2X Beam comes with a double-bracketed yoke to which you can either attach mounting clamps for hanging or simply use as a floor stand. You must supply the mounting clamps. Make sure the clamps are capable of supporting the weight of this product. Use at least one mounting point per product.

  • Page 17: Control Panel Operation

    <DOWN> function Control Options Set the Rogue R2X Beam starting address in the 001-512 DMX range. This enables control of up to 26 products in the 19-channel 19 CH personality. Programming Refer to the Menu Map to understand the menu options. The menu map shows the main level and a variable number of programming levels for each option.

  • Page 18: Menu Map

    Move wheel move BL.O.Gobo Enables/disables blackout on gobo Move wheel move On/Off Turns lamp on/off Lamp Settings Defines the status of the lamp when State/Power on powering up product Page 16 of 32 Rogue R2X Beam User Manual Rev. 1...
  • Page 19 Shows amount of time remaining in Remaining Time: _ _ _ _ _ maintenance cycle UID: _ _ _ _ _ _ _ _ _ _ _ _ Displays the UID Rogue R2X Beam User Manual Rev. 1 Page 17 of 32...

  • Page 20: Address

    Highlight Tilt Reverse, press <ENTER>. Select OFF or ON, press <ENTER> Pan Angle This option assigns pan range. Highlight Pan Angle, press <ENTER>. Select 540, 360, or 180, press <ENTER>. Page 18 of 32 Rogue R2X Beam User Manual Rev. 1...

  • Page 21: Tilt Angle

    This option sets the duration of time (seconds) it takes for the lamp to turn on when powering up the product. Highlight Ignition Delay, press <ENTER>. Select 000–255, press <ENTER>. Rogue R2X Beam User Manual Rev. 1 Page 19 of 32...

  • Page 22: Maintenance Timer

    Select YES or NO, press <ENTER>. All Reset This option resets the all the functions to the home position. Highlight All, press <ENTER>. Select YES or NO, press <ENTER>. Page 20 of 32 Rogue R2X Beam User Manual Rev. 1...

  • Page 23: Factory Reset Function

    Highlight PRISM1 ROTATE, press <ENTER>. Select 000–255, press <ENTER>. Prism 2 Highlight PRISM2, press <ENTER>. Select 000–255, press <ENTER> Rotating Prism 2 Highlight PRISM2 ROTATE, press <ENTER>. Select 000–255, press <ENTER>. Rogue R2X Beam User Manual Rev. 1 Page 21 of 32...

  • Page 24: Dmx Values

    004 Open  008 Color 1  012 Color 2  Color Wheel 016 Color 3  020 Color 4  024 Color 5  028 Color 6  Page 22 of 32 Rogue R2X Beam User Manual Rev. 1...
  • Page 25 107 Gobo 12 shake, from slow to fast  111 Gobo 13 shake, from slow to fast  115 Gobo 14 shake, from slow to fast  119 Gobo 15 shake, from slow to fast  Rogue R2X Beam User Manual Rev. 1 Page 23 of 32...
  • Page 26 167 Auto program 20  175 Auto program 21  183 Auto program 22  191 Auto program 23  199 Auto program 24  207 Auto program 25  Page 24 of 32 Rogue R2X Beam User Manual Rev. 1...
  • Page 27  Shutter 203 Slow close, fast open from slow to fast  239 Pulse strobe with increasing speed  250 Random strobe with increasing speed  255 Open  Rogue R2X Beam User Manual Rev. 1 Page 25 of 32...
  • Page 28 083 Gobo 6 shake, from slow to fast  087 Gobo 7 shake, from slow to fast  091 Gobo 8 shake, from slow to fast  095 Gobo 9 shake, from slow to fast  Page 26 of 32 Rogue R2X Beam User Manual Rev. 1...
  • Page 29  189 No function  199 Frost/Focus reset  209 All reset  219 Blackout enabled  229 Blackout disabled  239 Lamp off  255 No function  Rogue R2X Beam User Manual Rev. 1 Page 27 of 32...

  • Page 30: Product Maintenance

    Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans while blowing compressed air into them. Page 28 of 32 Rogue R2X Beam User Manual Rev. 1...

  • Page 31: Technical Specifications

    I/O Connector Channel Range 3- and 5-pin XLR 16 or 19 Ordering Product Name Item Code UPC Number Rogue R2X Beam 0811493 781462218416 UL 1573 CSA C22.2 No. 166 E113093 Rogue R2X Beam User Manual Rev. 1 Page 29 of 32...

  • Page 32: Photometrics Chart

    75 ft 100 ft 125 ft 150 ft Field Field Beam Light Source Distance Diameter Diameter 10 m 15 m 20 m 25 m 30 m Field Field Beam Page 30 of 32 Rogue R2X Beam User Manual Rev. 1...

  • Page 33: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Rogue R2X Beam User Manual Rev. 1 Page 31 of 32...

  • Page 34: Contact Us

    Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record. Page 32 of 32 Rogue R2X Beam User Manual Rev. 1...
