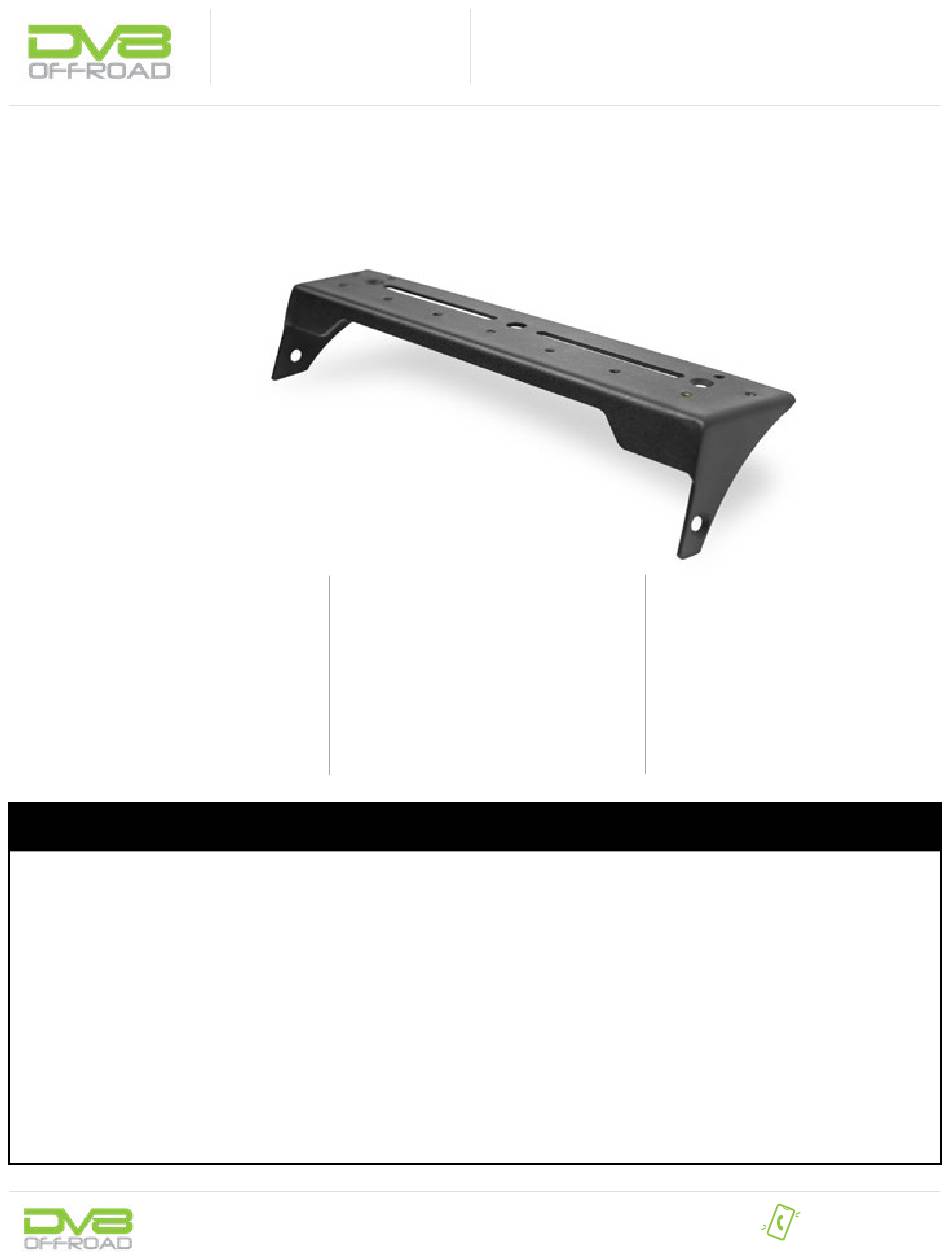

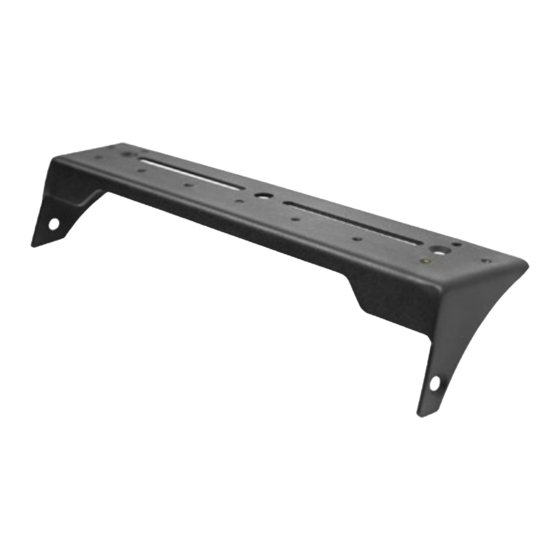

4 RUNNER DASH MOUNT
2010+ (5TH GEN) TOYOTA 4RUNNER
DMT3-01
TOOLS
REQUIRED
-Drill
-3mm, 4mm Allen Bit
-10mm Wrench
-10mm Socket
-Trim Clip Tool
-11/32" Drill Bit
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
PRODUCT
INSTALLATION
TIME
- 1 Hour
Time to install this should only
take about an hour
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Table of Contents
Related Manuals for DV8 OFFROAD DMT3-01
Summary of Contents for DV8 OFFROAD DMT3-01
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. HARDWARE INCLUDED (2) M6x15 Allen (2) M5x10 (2) M6x30 Allen (2) M5 Flat Washers (4) M6 Flat Washers (4) M6 Nylon Lock Nuts STEP 1 |...
- Page 3 INSTALLATION MANUAL STEP 3 | Slide the two M6x30 bolts through the dash mount and place it in the desired install location. When it is adjusted as desired, use a 4mm allen bit to spin the bolts so they make marks on the dash for drilling. Use a sharpie to mark the side mounting holes for drilling.
- Page 4 INSTALLATION MANUAL STEP 4 | Remove the dash piece to prepare for drilling by removing the four bolts securing it using a 10mm socket. STEP 5 | Drill out the marked holes using an 11/32” drill bit. STEP 6 | Install the dash mount onto the dash piece using the provided M6 hardware with a 4mm allen bit and 10mm...
- Page 5 INSTALLATION MANUAL STEP 7 | Re-install the top dash piece using a 10mm socket and factory hardware. STEP 8 | Install the control cluster and dash trim by applying pressure until the clips are secured. NEED HELP? 855-680-9595...
- Page 6 INSTALLATION MANUAL STEP 9 | If desired, install the arms onto the dash mount using the provided M5 hardware and a 3mm allen bit. STEP 10 | Congrats! You are finished with the install of the 2010+ (5th Gen) Toyota 4Runner Dash Mount! NEED HELP? 855-680-9595...
