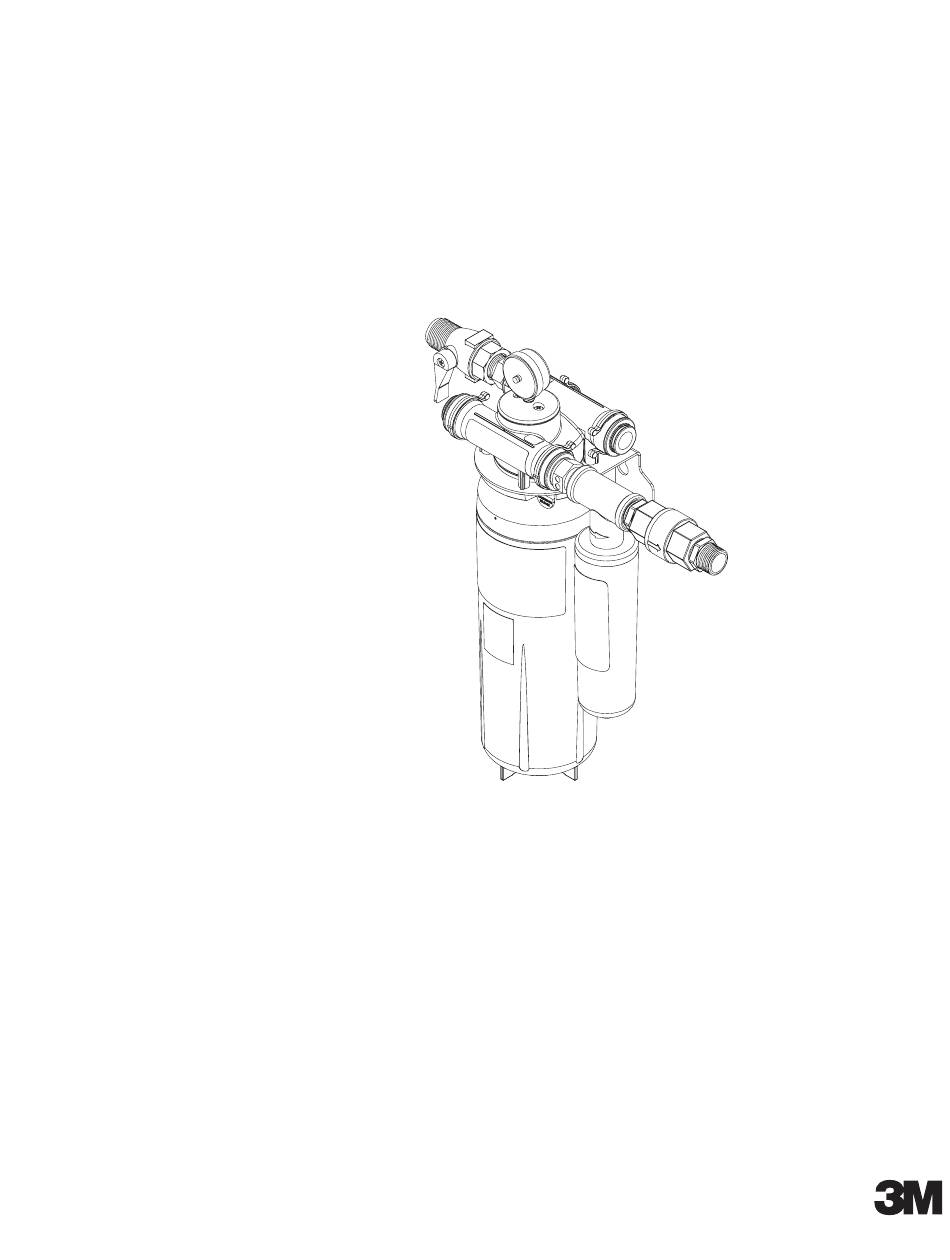

- Page 1 Water Filtration Products Scale Feeder Manifold Water Filtration System Instruction Manual For SF1XX High Flow Series Water Filtration Systems Installer: Please leave this manual with owner/operator.
- Page 2 Water Filtration Products ™ Table of Contents Safety Information ............................2 Warning Statements ............................2 Caution/Important Notes ..........................3 SF1XX Manifold and ScaleGARD HT Systems ....................3 Inlet and Outlet Connections ........................3 Product Dimensions .............................4 How to Use The “Inlet/Outlet” Fitting Retention Clips ..................4 Equipment Installation ..........................5 Equipment Start-up Procedure ........................6 Cartridge Change-out Procedure ........................6...
- Page 3 CAUTION To reduce the risk associated with property damage due to water leakage: • Read and follow Use Instructions before installation and use of this system. • Installation and Use MUST comply with all state and local plumbing codes. • Protect from freezing, remove filter cartridge when temperatures are expected to drop below 40°F (4.4°C); •...
- Page 4 Product Dimensions 17 5/16" 5 7/16" (44.0 cm) (13.8 cm) 18 1/16" (45.9 cm) Minimum of 3" (7.6 cm) For Cartridge Change How to Use the Inlet/Outlet Fitting Retention Clips This product is outfitted with inlet/outlet fittings. The fittings can be attached or removed from the system without tools.
- Page 5 Equipment Installation CAUTION To reduce the risk associated with property damage due to water leakage: • Do not use a torch or other high temperature sources near filter system, cartridges, plastic fittings or plastic plumbing. • On plastic fittings, never use pipe sealant or pipe dope. Use PTFE thread tape only, pipe dope properties may deteriorate plastic. • Take care when using pliers or pipe wrenches to tighten plastic fittings, as damage may occur if overtight- ening occurs.
- Page 6 Equipment Start-up Procedure Turn on incoming water to system. Pressurize system by rotating the inlet ball valve handle 1/4 turn counter-clockwise to the “ON” position. Check for leaks. Use any downstream vent to remove trapped air. Flush system in accordance with the Performance Data Sheet for the water filter cartridge. System is now ready to use.
- Page 7 Replacement Parts Listing Item Part no. Description Qty* Function 6228601 SF1XX Manifold Assembly Assembly, complete HF65 Replacement Cartridge 56134-07 Water filtration SF165 System See Catalog for Replacement Cartridge Water filtration Options Options HF8-S Replacement Car- 5582106 Scale-inhibitor addition tridge 85005-49 Pressure gauge Monitor outlet water pressure 85-8528...
- Page 8 Limited Warranty 3M Purification Inc. warrants SF1XX only to be free from defects in material and workmanship for five (5) years from the date of purchase. The disposable filter cartridge is warranted from defects in material and workmanship for a period of one (1) year from the date of purchase. This warranty does not cover failures resulting from abuse, misuse, alterations or damage not caused by 3M Purification Inc. or failure to follow installation and use instructions.
