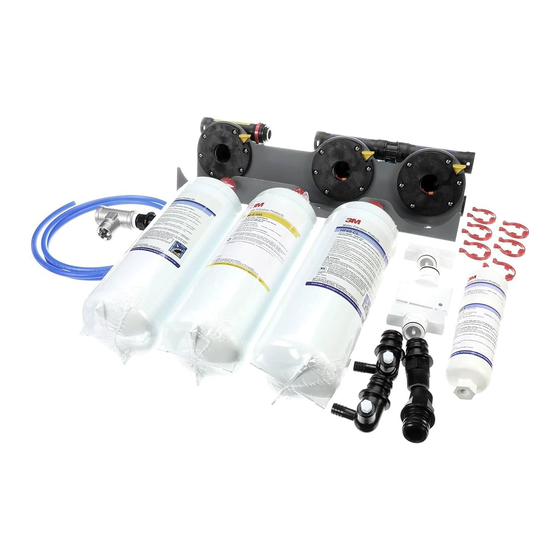

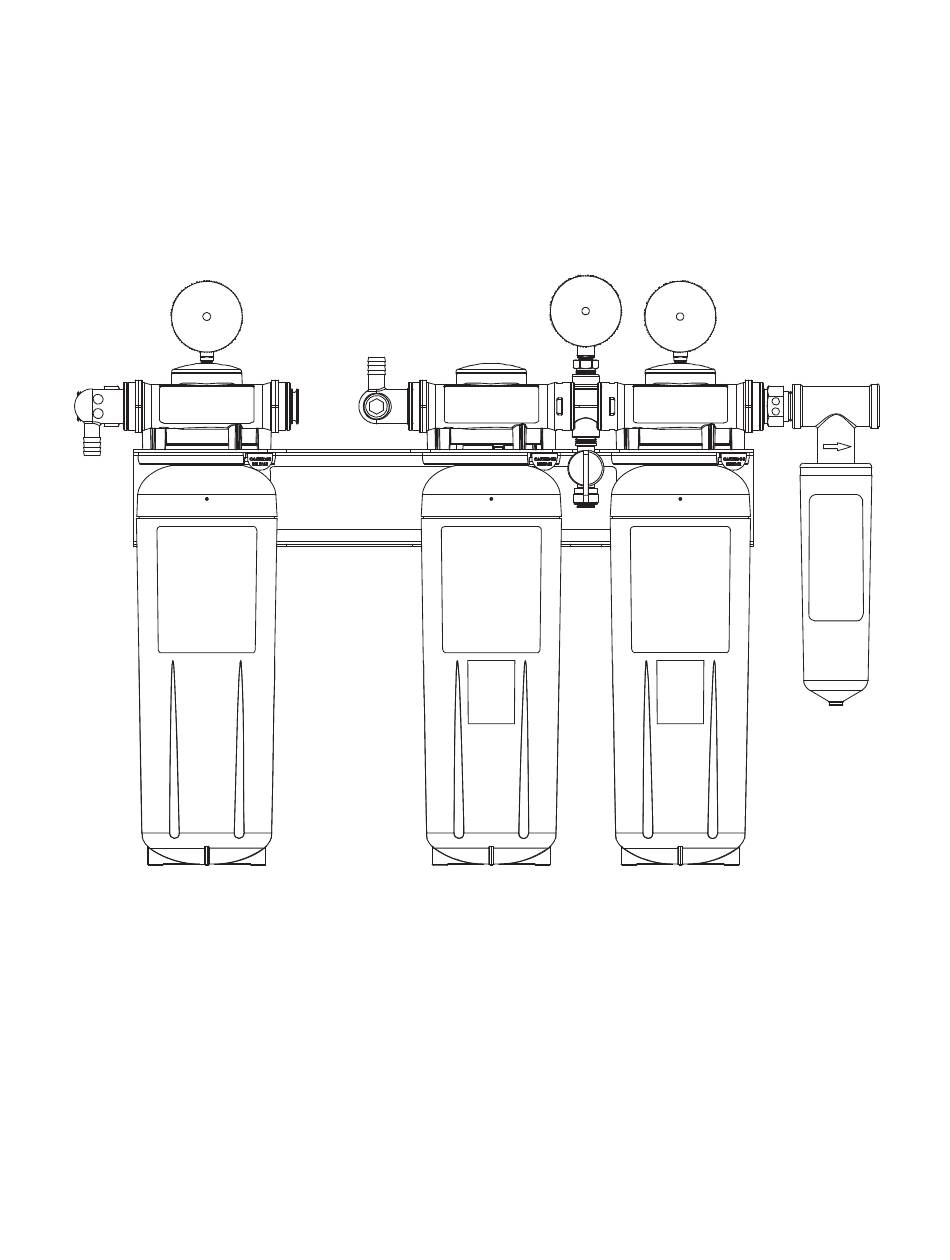

- Page 1 Water Filtration Products ™ Installation and Operation Instructions for High Flow Series Dual Flow Manifold System DF260-CL-CC Installer: Please leave this manual with owner/operator. Owner/Operator: Please retain for operation and future instructions.
- Page 2 NOTES...
-
Page 3: Safety Information
Intended use: The Dual Flow Manifold System DF260-CL-CC is intended for use in fi ltering potable water for foodservice equipment and has not been evaluated for other uses. The system is installed indoors, and must be installed by a qualifi ed professional installer according to these installation instructions. - Page 4 CAUTION CAUTION To reduce the risk associated with property damage due to water leakage: • Read and follow Use Instructions before installation and use of this system. • Installation and use MUST comply with all state and local plumbing codes. •...
-
Page 5: Table Of Contents
The left single cartridge (yellow label) is model HF60-S-SR5. It is critical that this cartridge be installed in the left most manifold head which also has a yellow 3M label. The cartridge is keyed such that it will not fi t properly if installed in either of the other manifold heads. The media in this cartridge is a pleated nylon membrane with a time released scale inhibitor. -
Page 6: How To Use "Push-In" Connections
How To Use “Push-In” Fittings (Collet) CAUTION CAUTION To reduce the risk associated with property damage due to water leakage: • Do not install unit if collet is missing. Contact your sales representative if collets are missing from any fi ttings. This product is outfi... -
Page 7: Equipment Installation
7. Align the tabs on the HF60-S-SR5 cartridge with the slots in the retaining plate of the head on the left hand manifold head (NOTE: Head has yellow 3M label adhered to it). Insert the cartridge into the head and turn the cartridge to the right until a click sound is heard; the click indicates that the cartridge is properly engaged. -
Page 8: Cartridge Change-Out Procedure
IMPORTANT NOTE: The ice cartridge (Model HF60-S-SR5) has a yellow label and will only fi t into the head on the left side of the manifold (head has a yellow 3M label). The Beverage cartridges (Model HF60-CL) will only fi t into the heads on the right side of the manifold (heads have a blue 3M label). -
Page 9: Troubleshooting
DF260-CL-CC System Pre-Start-Up procedure: 1. Turn ice water inlet valve ON. 2. Remove trap air in the ice line by opening and closing the ice outlet fl ush valve. 3. Turn ice water outlet valve ON. 4. Turn beverage/coffee water inlet valve ON. -
Page 10: Limited Warranty
(1) year from the date of purchase. This warranty does not cover failures resulting from abuse, misuse, alteration or damage not caused by 3M Purifi cation Inc. or failure to follow installation and use instructions. No warranty is given as to the service life of any fi... - Page 11 INFORMATION IS SUPPLIED UPON THE CONDITION THAT THE PERSONS RECEIVING THE SAME WILL MAKE THEIR OWN DETERMINATION AS TO ITS SUITABILITY FOR THEIR USE. IN NO EVENT WILL 3M PURIFICATION INC. BE RESPONSIBLE FOR DAMAGES OF ANY NATURE WHATSOEVER RESULTING FROM THE USE OF OR RELIANCE UPON INFORMATION.
