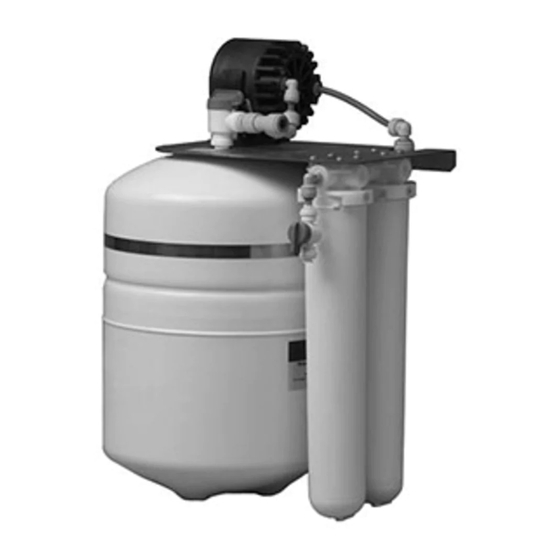

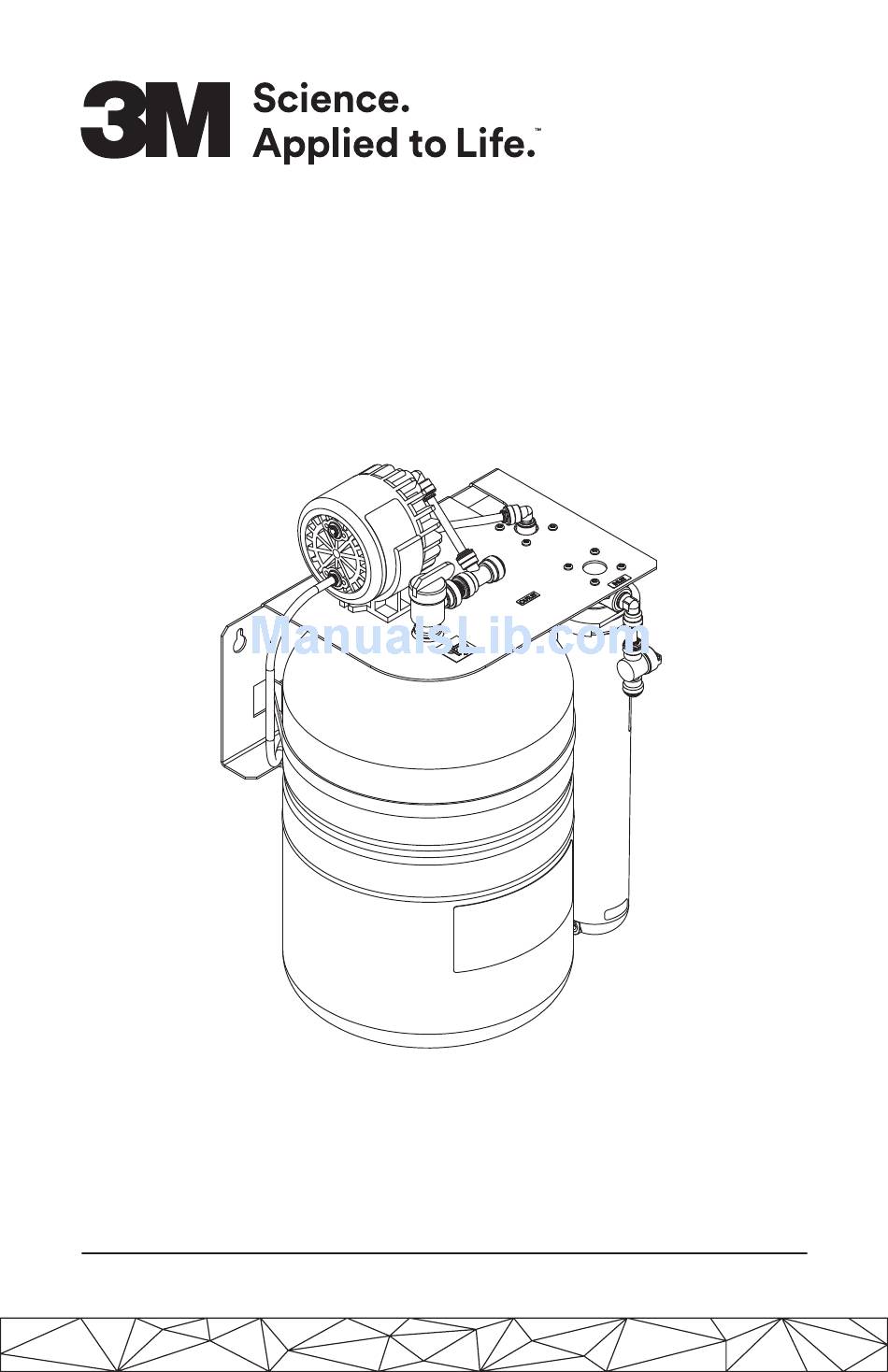

- Page 1 3M™ Water Filtration Products Model SGLP-RO Reverse Osmosis System- Quick Installation Guide Note: Installer - please leave with owner/operator.
-
Page 2: Safety Information
3M™ Water Filtration Products SGLP-RO Reverse Osmosis System. Retain these instructions for future reference. Intended use: The 3M™ Water Filtration Products SGLP-RO Reverse Osmosis System is intended for use in filtering potable water and has not been evaluated for other uses. The products are installed at the point of use and must be installed as specified in these installation instructions by a qualified professional. -
Page 3: Item Description
• Ensure all tubing and fittings are secure and free of leaks. • DO NOT install unit if collet is missing. Contact 3M™ Water Filtration Products if collets are missing from any fittings. • Use compatible flexible tubing with ‘push in connections’ (such as PEX tubing, PE tubing, PP tubing). - Page 4 7.000 .750 .450 1) Select the location to mount the SGLP-RO unit. (SGLP-RO overall dimensions: 12-1/4” W x 17-3/4” H x 9-5/16” D). 2) Allow clearance on each side of the system for inlet and outlet tubing connections. 3) Allow 3” clearance below the system for cartridge replacement.
- Page 5 For SW3-PLUS and SW260-PLUS, follow these steps. 1) Close the water inlet valve on the existing beverage and ice filter system. 2) Run ¼” tubing from the filter system outlet to the SGLP-RO using the appropriate fittings and tubing (not included).
- Page 6 RO Membrane Plug NOTE: Refer to installation diagram above. 1) Install installation parts onto the SGLP-RO unit and close the inlet and sample water valves. 2) Connect inlet water supply to the SGLP-RO system inlet using either the quick connect fitting or the supplied hose barb (if using hose).
- Page 7 Step 7: Connect SGLP-RO outlet to the Duke oven waterline bulkhead fitting 1) Refer to diagram above for location of water inlet connection. 2) Connect ¼” water line from the SGLP-RO outlet to the inlet connection on the Duke oven. Use appropriate fittings as required (not included).
- Page 8 Limitation of Liability: Except for the limited remedy stated above, and except to the extent prohibited by law, 3M will not be liable for any loss or damage arising from or related to the 3M product, whether direct, indirect, special, incidental, or consequential (including, but not limited to, lost profits or business opportunity), regardless of the legal or equitable theory asserted, including, but not limited to, warranty, contract, negligence, or strict liability.
