E. Using the Film Alignment Ruler
To scan non-standard-size film such as
8" x 10" film, use the Film Alignment Ruler,
which allows you to scan film up to
8" x 12" in size.

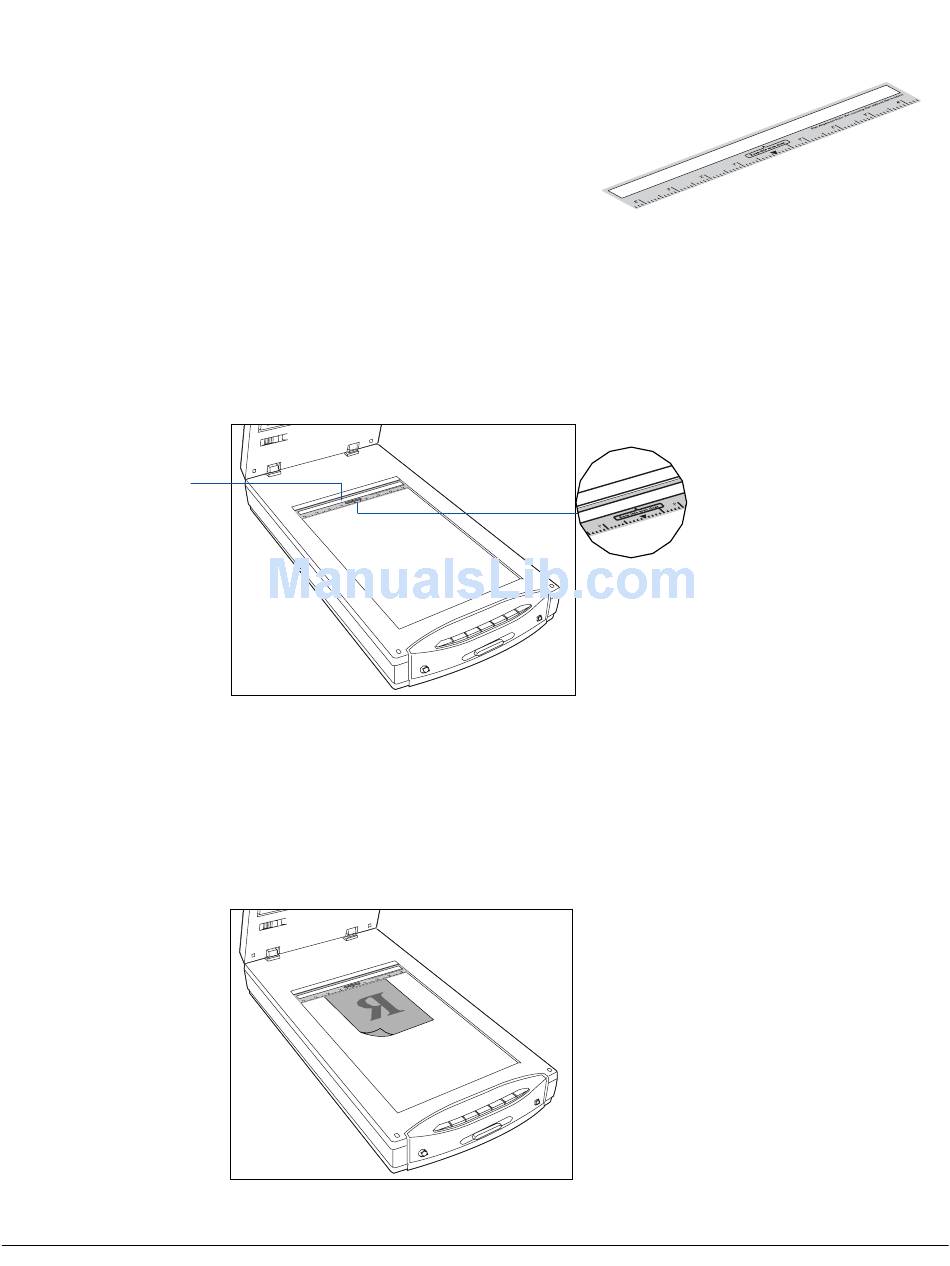

1. Place the Film Alignment Ruler towards the back of the scanner on the scanner
Calibration strip
2. Place the film (non-standard size film) to be scanned on the scanner glass surface,
glass surface.
and center the film along the Film Alignment Ruler on the scanner.
Important: Align the Film Alignment
Ruler firmly against the top ruler of the
scanner, with the ruler oriented
correctly and with the correct side up.
During placement of the Ruler, make
sure that the calibration strip on the
Ruler is kept clear and free of
obstruction at all times.
ScanMaker i800 Supplement 15
