D. Using the EZ-Lock 4" x 5" Film Holder
To scan 4" x 5" film, use the EZ-Lock 4" x 5"
Film Holder, which can hold up to 2 pieces of
4" x 5" film at a time.

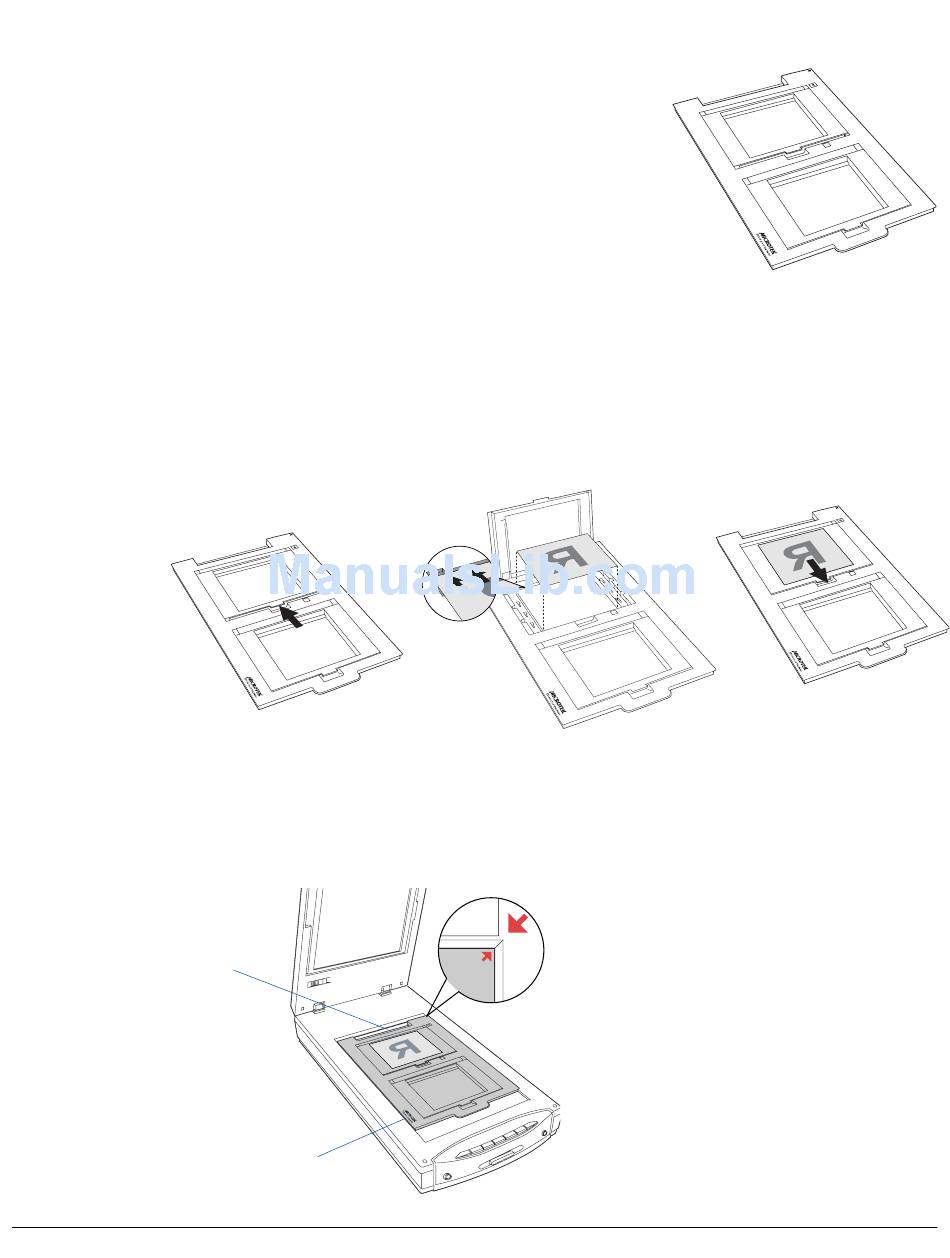

1. Place the 4" x 5" film to be scanned inside the EZ-Lock 4" x 5" Film Holder, as
indicated in the graphics below. The shiny base of the 4" x 5" film should be
facing down, and the emulsion side of the filmstrip should be facing up.
a) Push on the side to
open the lid.
2. Raise the scanner lid, then place the EZ-Lock 4" x 5" Film Holder towards the back
of the scanner, with the loaded film on the scanner glass surface.
b) Place the film face
down into the holder.
To make sure the auto multiframe
cropping feature performs correctly,
place the holder on the scan bed,
correctly oriented and showing the
side with the Microtek logo face up.
Align the red arrows so that the
holder's front edge is flush against
the top ruler of the scanner.
c) Pull down the side
to close the lid.
