Keep calibration strip
on the glass surface clear
and free of any obstruction
12 ScanMaker i800 Supplement

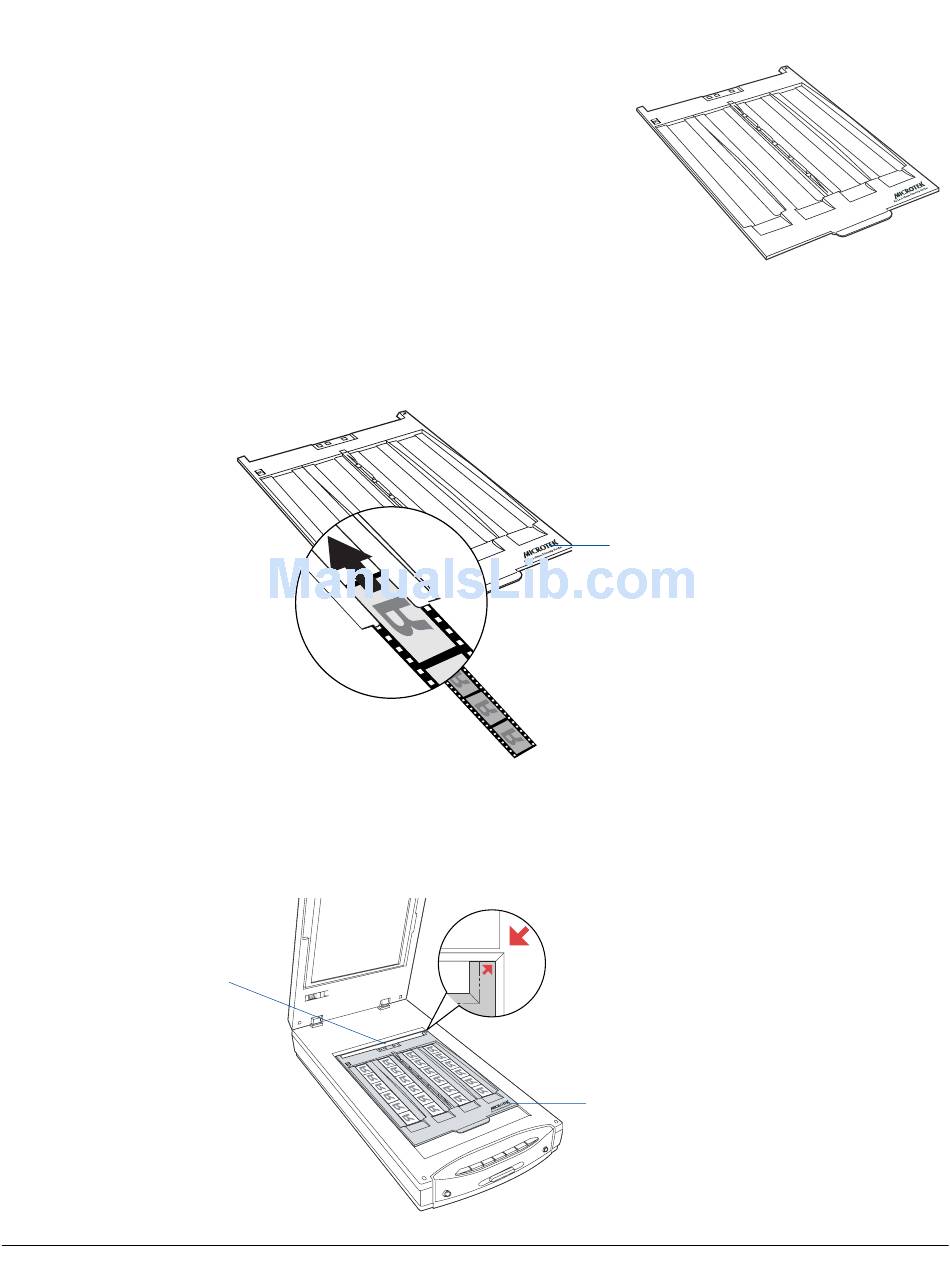

B. Using the EZ-Lock 35mm Filmstrip Holder
To scan 35mm filmstrips, use the EZ-Lock
35mm Filmstrip Holder, which can
simultaneously hold four strips of 6 frames
each, or a total of 24 frames.
1. Place the 35mm filmstrip to be scanned inside the frame of the EZ-Lock 35mm
Filmstrip Holder. The shiny base of the 35mm filmstrip should be facing down, and
the emulsion side of the filmstrip should be facing up.
2. Raise the scanner lid, then place the EZ-Lock 35mm Filmstrip Holder towards the
back of the scanner, with the loaded film on the scanner glass surface.
Orient the holder with the
"Microtek" logo facing up
To make sure the auto multiframe
cropping feature performs correctly,
place the holder on the scan bed,
correctly oriented and showing the
side with the Microtek logo face up.
Align the red arrows so that the
holder's front edge is flush against
the top ruler of the scanner.
"Microtek" logo
