8. Keys [Position 1/Position 2]
Used for:
Navigating through the list of variation steps of the selected optical setting
Introducing one of the two positions of the cross cylinder while performing the cross-cylinder test
9. Central button
Used for:
Modifying (+), the power values via rotation of the central button
Navigating through the controlled settings (e.g. S, C, A) by pressing the central button
10. Acuity navigation buttons
Used for:
Navigating through the acuity charts (changing the size of the letters, charts, lines or columns) and
saving the answers.
Navigating through the answers of the dissociated tests
Confirming the answers of the dissociated tests with the middle button
There are two USB ports located on the side of the console.

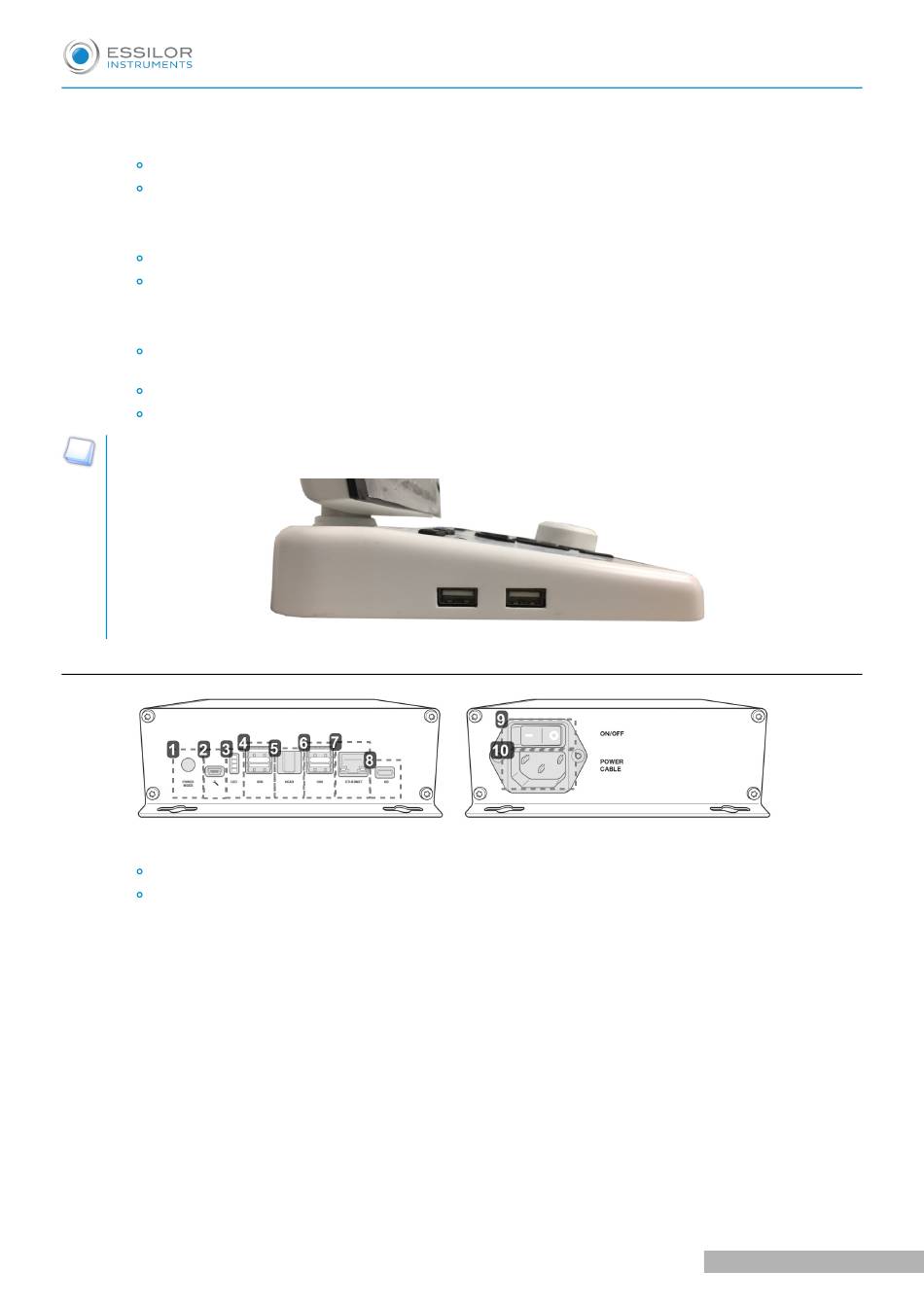

d. Power supply box - (Ref. V01PS1)
1. Start-up mode
Position 1: turning on the refraction head by pressing on On/Off with the console.
Position 2: turning on the phoropter head using the ON/OFF switch on the power supply box.
2. Service technician socket
3. Information indicator lights
4. USB port
5. Refraction head connection port
Used for the connection to the phoropter head.
6. USB port
7. Ethernet port
8. Console connection port
Used for the connection to the console
9. On/off switch
Network isolation switch.
10. Power cable socket
Vision-R 700 - Essilor automatic phoropter > V1 - 09-2020
