Icom IC-F24/S Service Manual Addendum page 58

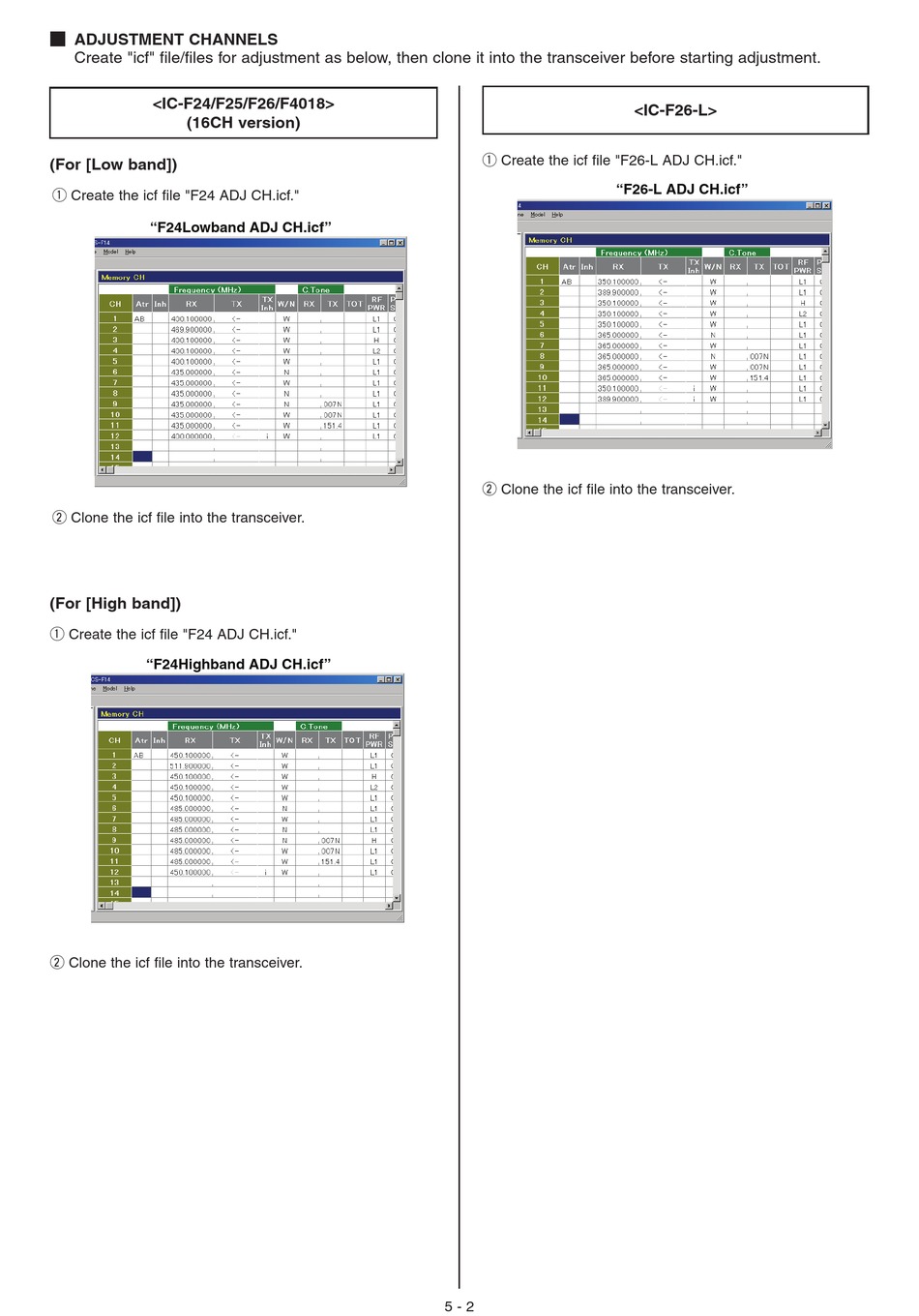

¤ ADJUSTMENT CHANNELS
Create "icf" file/files for adjustment as below, then clone it into the transceiver before starting adjustment.
<IC-F24/F25/F26/F4018>
(16CH version)
(For [Low band])
q Create the icf file "F24 ADJ CH.icf."
"F24Lowband ADJ CH.icf"
w Clone the icf file into the transceiver.
(For [High band])
q Create the icf file "F24 ADJ CH.icf."
"F24Highband ADJ CH.icf"
w Clone the icf file into the transceiver.
q Create the icf file "F26-L ADJ CH.icf."
"F26-L ADJ CH.icf"
w Clone the icf file into the transceiver.
5 - 2
<IC-F26-L>
