ALU MI NI UM

Greenhouse

Assembly

Instructions

Need help?

Do you have a question about the HOKLARTHERM Riga XL 5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Exaco HOKLARTHERM Riga XL 5

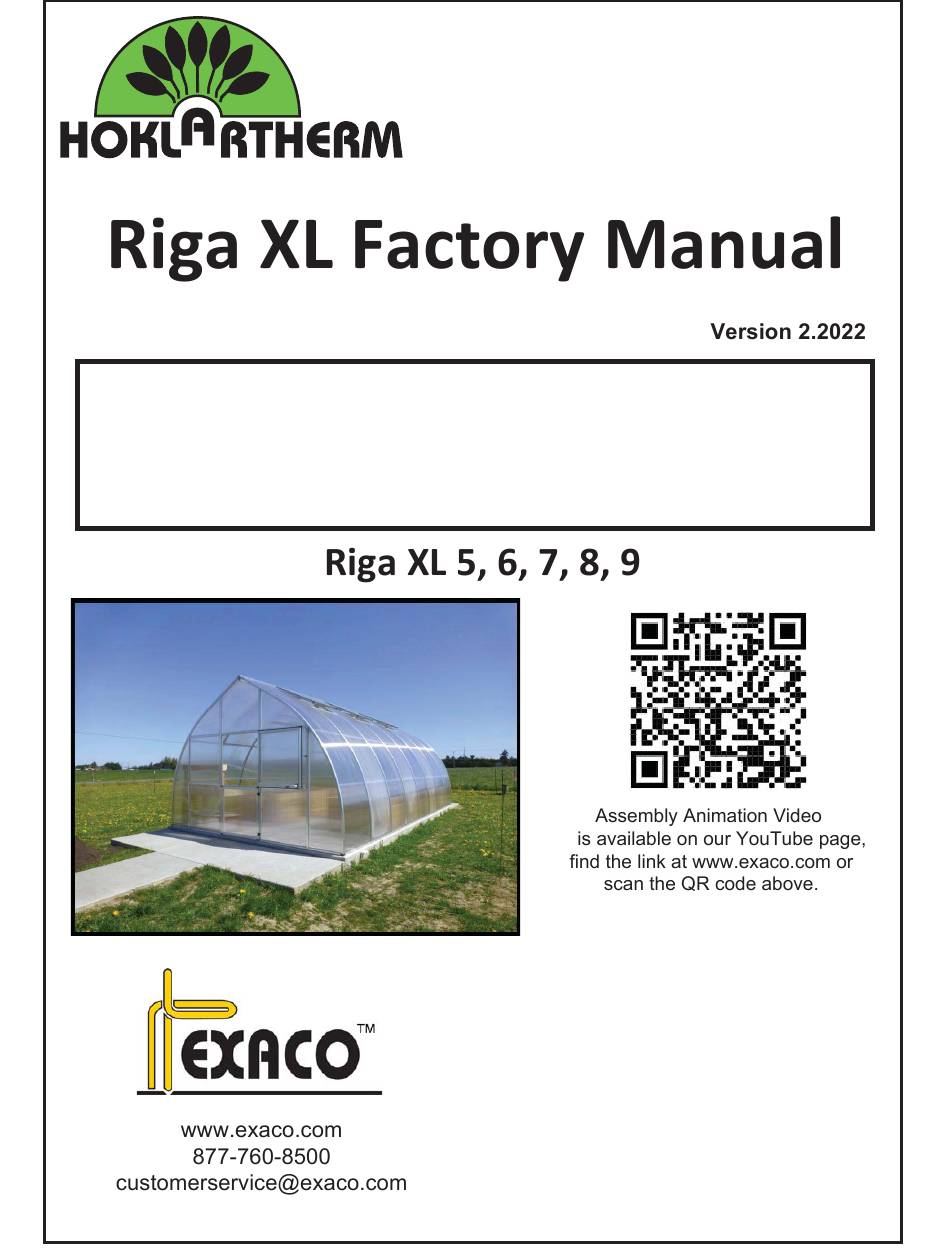

Page 1 ALU MI NI UM Greenhouse Assembly Instructions...
Page 3 Table of Contents Before You Begin/ Important information………………………………………..………………... - Contents of Boxes Overview of boxes……………………………………………………………………….……..5 Polycarbonate panel sizes/count…………………………………………………….…………6 Basic Construction Components (aluminum extrusions) ……………………………….…...7 Accessories Bag/ Hardware and Bracket components…………………………….………...8 Window and Door Components……………………………………………………....9-10 Connecting Long Profiles/Extrusions…………………………………………………………...……..11 Extra bracing @ center curves for XL 7/8/9 only…………………………………………….……12-13 Planning Foundation/Anchoring your greenhouse Foundation Frame (optional accessory) ……………………………………………..……..14 Anchoring the greenhouse without a foundation frame…………………………………..15...
Page 4 What you will need:...
Page 6 Depending on the greenhouse you Quantity Content table Basic construc- Gables Page tions Basic construc- Long parts (with ﬂ oor proﬁ le - gable) Page tions Roof window/door Page Seals, automatic window opener, etc. Page Curved center bundles Page proﬁ les Glazing Page Foundation frame...
Page 8 components. Quan- Length Proﬁ le design Pos. Description tity [mm] Front/Back ﬂ oor proﬁ les 4145 Edge stay bar - curved - right side Edge stay bar - curved - left side Vertical proﬁ le - middle - left - with 50° angle at top 1929 Vertical proﬁ...
Page 9 Part design Pos. Description Quantity 100 Plastic corner connector 101 Straight connector plate for cross bars above doors 102 T-connector slanted for door upright and edge clamp 103 T-connector door proﬁ les to cross bars vertical proﬁ le middle/cross bar/ 104 T-connector slanted edge clamp 105 Floor proﬁ...
Page 10 Length Proﬁ le design Pos. Description [mm] Window proﬁ le - roof Window proﬁ le - roof Length Proﬁ le design Pos. Description [mm] Door proﬁ le - left with borings for Sash lock Door proﬁ le - right with hinge borings Door proﬁ...
Page 11 Length Part Design Pos. Description [mm] 135 Hinge 136 Sash lock 137 End cap for rectangular tube The rubber seal is in one for all 138 T-seal doors and windows. Cut accordingly please. 139 Phillips head screw 4,8 x 25 (for hinges) 140 Phillips head screw 4,8 x 16 (for hinges)
Page 13 Bracing Riga XL Assembly of the bracing Length Dimensions Pos. Profile/part design Description Quantity [mm] [mm] Bracing strut 1980 30 x 4 SM11 Hexagon M6 x 55 SM30 Nut M6 Step 1 bracing strut...
Page 14 Bracing Riga XL Assembly of the bracing strut Step 2 Slot for the bracing strut in the curved center profiles Step 3 curved center profile hexagon head M6 x 55 with nut M6 curved center profile bracing strut 30 x 4 bracing strut 30 x 4 hexagon head M6 x...
Page 21 Step 16 Step 17 ﬂ o or proﬁ le connector (pos. 105) M6 x 16 doors + nut M6 (pos. 107) ounting roof window right! ﬂoor proﬁ e corner connector (pos. 116) with screw 4,8 x 16 (pos. 113). Then you should look for: Step 18 Press 6 - 8 mm in...
Page 24 Riga Greenhouse Window Auto Opener Correct Installation In the correct position, the opener is sitting parallel to the window, which means that it will not demand a lot of pressure from the cylinder when the opening starts. Before fitting a new cylinder to the openers, you must check that the window can open freely right from the start.
Page 25 If you get strong wind gusts, we recommend protecting your roof vents and openers with restraint cables. Roof vent restraints can be purchased from Exaco Trading (US distributor of Riga’s) or can be made, they are not a standard part from the Riga manufacturer.
Page 28 Assembly instructions for lockable handle...
Page 30 Auto Opener and Piston Troubleshooting: How does the auto opener and piston work? The black piston cylinder is filled with a mix of oils that naturally expand around 73 degrees. As the oil expands, it will begin to push out the rod of the piston and open your window. The springs and the weight of the window will pull it shut when the temperature drops.
Page 31 H H ow does the Cylinder warranty work? 1) Coverage Your cylinder is covered for years from the year that is stamped on the cylinder. 2) How to test if your cylinder is defective or not? 1) Prepare a bucket of hot water and a bucket of cold water. 2) Put the cylinder in the bucket of cold water for around 10 minutes and then push the piston pin in as far as it will go.
Page 32 Riga Shelf kit only available for Riga XL 5,6, & 9 ssembly nstructions helf Riga Riga Riga escription pos. overview longitudinal profile strut angle-end tail (narrow) cross-brace connector with grub screw V161 S12/S1 S5/S1 S15/ S1...
Page 33 Riga Table Shelf Shelf kit only available for Riga XL 5,6, & 9 ssembly nstructions able helf Riga Riga Riga escription pos. overview longitudinal profile strut angle-end tail (narrow) cross-brace connector with grub screw V161 S12/S1 S5/S1 S15/ S1...
Page 34 Pos. 5 Pos. 3 Pos. 1 Step 1 Step 2...
Page 35 Step 3 Step 4 Step 5 Step 6 Step 7...
Page 36 If you have both an intake shutter vent and exhaust fan, you will want them to be opposite/diagonal from each other to get the best cross-breeze. Plug the fan into the thermostat (optional) to control when it turns on. If you are using both a shutter vent and an exhaust fan you will need to purchase a plug splitter and plug them both into the thermostat.
Page 37 You will want your intake shutter vent to be opposite from your exhaust fan (i.e. opposite wall and lower part of the greenhouse) to get the best cross-breeze. They should both be plugged into the thermostat with a plug splitter to engage them simultaneously.
