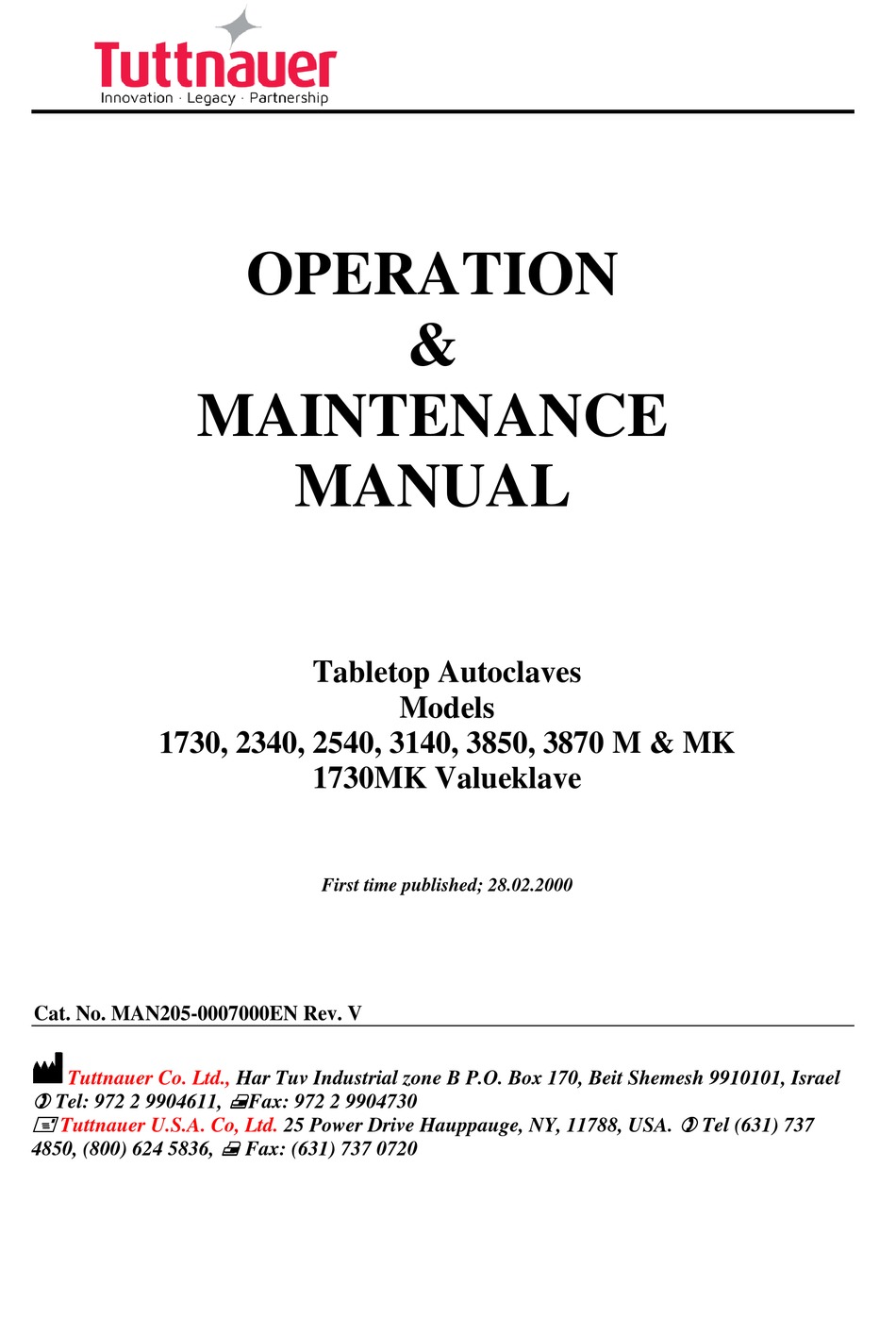

  • Page 1 & MAINTENANCE MANUAL Tabletop Autoclaves Models 1730, 2340, 2540, 3140, 3850, 3870 M & MK 1730MK Valueklave First time published; 28.02.2000 Cat. No. MAN205-0007000EN Rev. V Tuttnauer Co. Ltd., Har Tuv Industrial zone B P.O. Box 170, Beit Shemesh 9910101, Israel ...

  • Page 2: Table Of Contents

    Construction ....................6 Directives and Standards ................7 Utilities ......................8 Waste Water Disposal ................... 8 Environment Emission Information ............. 8 Dimensions, Models 1730 ................9 2.10 Dimensions, Models 2340, 2540 ..............10 2.11 Dimensions, Models 3140 ................11 2.12 Dimensions, Models 3850, 3870 ..............
  • Page 3 Unclogging the Multi-Purpose Valve or Fill Piping........40 CLEANING THE TABLETOP AUTOCLAVES WITH CHAMBER BRITE™ ... 41 TROUBLESHOOTING ..................42 LIST OF ACCESSORIES ..................52...

  • Page 4: General

    Tuttnauer. All Tuttnauer products are carefully inspected prior to shipment and all reasonable precautions are taken in preparing them for shipment to assure safe arrival at their destination.

  • Page 5: Warranty Statement

    No product will be received or accepted for repair without prior return authorization from Tuttnauer. All transportation charges to and from Tuttnauer must be paid by the owner of the autoclave. During the first 90 days after purchase of an autoclave, Tuttnauer will pay shipping costs on an individually evaluated basis and ONLY with pre-approval.

  • Page 6: Technical Data

    TECHNICAL DATA Introduction This autoclave is an electrically heated sterilizer using steam as the sterilizing agent. It is a manually operated device, with a control system based upon steam pressure. The operator can select a sterilization temperature from within a range of 212ºF - 273ºF (100ºC - 134ºC).

  • Page 7: Storage Conditions

    Storage Conditions The packed or unpacked autoclave shall be stored in “indoor conditions” (protected from rain and water). Operating Conditions This device is intended for indoor use. This autoclave is intended for NORMAL environment conditions as follows:  Altitude up to 2000m. ...

  • Page 8: Directives And Standards

    Directives and Standards Every autoclave meets the provisions of the following Directives and is in compliance with the following Standards: Medical Device Directive 93/42/EEC as amended by 2007/47/EC Medical Device Single Audit Program – (MDSAP) ISO 9001: Quality Management System Quality Management System –...

  • Page 9: Utilities

    A. The peak sound level generated by the sterilizer is < 70 / dBA with background noise of 60 dB. B. The total heat transmitted by the sterilizer is < 100 W/h for 1730/2340/2540 models and < 150 W/h for 3140/3850/3870 models.

  • Page 10: Dimensions, Models 1730

    Dimensions, Models 1730 1730 Model M, MK-Valueklave Dimensions 17.4 12.0 Overall Dimensions 17.9 29.5 Maximum Dimensions (door open) 22.0 13.7 Between Supporting Distance Legs 13.4 F1-front legs F -rear legs 12.4 Chamber Diameter Chamber Depth 13.4...

  • Page 11: Dimensions, Models 2340, 2540

    2.10 Dimensions, Models 2340, 2540 2340 2540 Model M, MK M, MK Dimensions 20.0 20.0 14.4 14.4 Overall Dimensions 21.5 21.5 35.8 35.8 Maximum Dimensions (door open) 25.8 25.8 11.8 11.8 Between Supporting Distance Legs 16.6 16.6 F1-front legs F -rear legs 15.8 15.8 Chamber Diameter...

  • Page 12: Dimensions, Models 3140

    2.11 Dimensions, Models 3140 3140 Model Dimensions 23.2 17.7 Overall Dimensions 21.9 39.0 Maximum Dimensions (door open) 29.7 19.2 Between Supporting Distance Legs 14.6 F1-front legs F -rear legs 15.2 Chamber Diameter 12.3 Chamber Depth 15.4...

  • Page 13: Dimensions, Models 3850, 3870

    2.12 Dimensions, Models 3850, 3870 3850 3870 Model Dimensions 26.0 26.0 Overall Dimensions 20.7 20.7 27.5 34.5 45.5 1155 53.0 1335 Maximum Dimensions (door open) 32.0 32.0 17.7 17.7 Between Supporting Distance Legs 22.2 22.2 F1-front legs F -rear legs 21.8 30.5 Chamber Diameter...

  • Page 14: Technical Specifications

    No. of Trays...

  • Page 15: Electrical Data

    2.14 Electrical Data Model 1730 2340 2540 3140 3850 3870 Specifications MK-V Total power 8.8A 11.2A 11.7A 11.7A 20.0A model 120V Total power 4.6A 5.9A 6.0A 9.6A 6.0A 9.6A 10.4A 10.4A 13A model 230V Heaters W 1050 1350 1400 2200 1400 2200 2400 2400 3000 2.15...

  • Page 16: Symbols Description

    2.16 Symbols Description Manufacturer Year of Manufacturing Medical Device Model Number Serial Number Consult the Operation and Maintenance Manual (User Manual) before Keep away from sunlight and protect from heat. For Indoor Use Only Keep dry Disposal according to electronic scrap ordinance...
  • Page 17 This side up (during transport and shipment) Fragile (during transport and shipment) A warning or precaution as detailed in the Operation and Maintenance Manual (User Manual) Caution! Hot Surface Caution! Hot steam Protective earth (Ground)

  • Page 18: Water Quality

    2.17 Water Quality The distilled or mineral-free water supply shall be according to the table below: Suggested maximum limits of contaminants in water for steam sterilization per EN13060 Substance Feed Water Condensate Evaporate ≤ 10 mg/l ≤ 1.0 mg/l residue ≤...
  • Page 19 FRONT VIEW MODEL 1730 M, MK-Valueklave Description Description Front legs 10. Air trap jet Reservoir water drain valve 11. Main power switch Door closing device 12. Pressure gauge Door microswitch 13. Power indicator light Autoclave cover 14. Heat indicator light Timer 15.
  • Page 20 FRONT VIEW MODEL 2340/2540 M, MK Description Description Water reservoir cover 11. Thermostat (B10) knob Water reservoir 12. Multipurpose valve Safety valve 13. Front legs Air trap jet 14. Rear legs Pressure gauge 15. Reservoir water drain valve Main power switch 16.
  • Page 21 FRONT VIEW MODEL 3140 M 3140 Description Description Water reservoir cover 10. Dry indicator light Water reservoir 11. Thermostat (B10) knob Safety valve 12. Multipurpose valve Air trap jet 13. Front legs Pressure gauge 14. Reservoir water drain valve Main power switch 15.

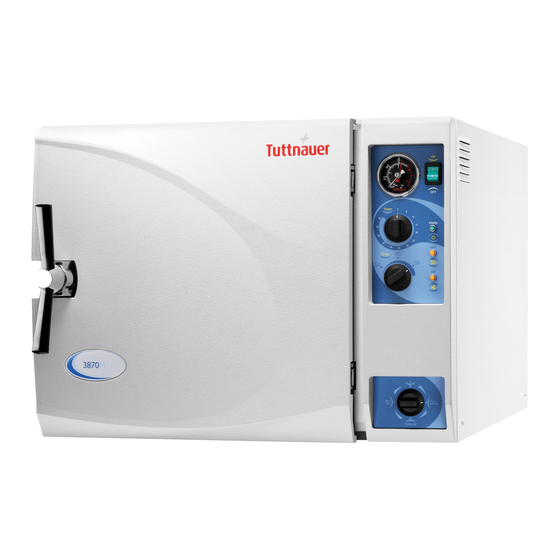

  • Page 22 FRONT VIEW MODEL 3850/3870 M Description Description Water reservoir cover 10. Dry indicator light Water reservoir 11. Thermostat (B10) knob Safety valve 12. Multipurpose valve Air trap jet 13. Front legs Pressure gauge 14. Reservoir water drain valve Main power switch 15.
  • Page 23 REAR VIEW Warning! Mind the Power Socket. Keep it and its vicinity dry. Danger of electrocution.

  • Page 24: Description Of Components

    DESCRIPTION OF COMPONENTS Control Panel Description Operation 0-60 psi, (0-4bar) indicates the chamber pressure PRESSURE GAUGE and includes maximum point indicator. Sets the time for sterilization and drying cycles (see section 7 for correct cycle time settings). TIMER 0-60 min. Note: The power to the heating elements is switched off when the Timer reaches 0 minutes.

  • Page 25: Installation Instructions

    INSTALLATION INSTRUCTIONS Caution: The sterilizer must be placed on a rigid and leveled surface. The stand must be able to hold the load of the device and loaded material as follows: Model 1730 2340 2540 3140 3850 3870 load on...

  • Page 26: Lifting And Carrying

     The chamber should be empty of any instruments, trays, or leftover water.  The chamber pitch now needs to be adjusted.  Measure to the proper amount of distilled water for the appropriate model unit as listed below. 1730 2340/2540 3140 3850 3870...

  • Page 27: Preparation Before Sterilization

    8. Place a sterilization indicator in each tray or inside each wrapped pack. 9. When using a paper / plastic bag, Tuttnauer recommends the use of a Tuttnauer Pouch Rack. If a pouch rack is not available, then Tuttnauer recommends placing the paper side down on the tray.
  • Page 28 22. Do not stack pouches. It is recommended that a Tuttnauer Pouch Rack be used. This will allow the operator to place pouches on their side, which will increase capacity and...
  • Page 29 will allow for better exposure to steam for sterilization and better circulation of air for drying. 23. If spotting is detected on the instruments, the first step would be to use an ordinary eraser to remove the spot. If there is no pitting under the spot, the spot was only dirt.
  • Page 30 Tubing 1. When placing in a tray, make sure that both ends are open, without sharp bends or twists. Wrong Right Cassettes 1. Instruments may be sterilized in cassettes. The advantage of the cassettes is that the sterilized instruments may remain organized in the cassettes ready for use, while stored in a sterile area.

  • Page 31: Operation

    OPERATION To avoid possible damage, do not leave the autoclave unattended while in operation. Make sure the power cord is plugged into the back of the unit and plugged into a power source. Loading and Unloading the Device • Safety Protective equipment, clothes and other safety instructions should be implemented in accordance with local and national regulations and/or rules!
  • Page 32 5. USE DISTILLED WATER ONLY. Use water-having characteristics as per table in sec 2.17. The impurities in tap water will create the need for more frequent cleaning and maintenance, in addition, they will accumulate and block the hole of the Air Jet. This will prevent the temperature in the chamber from rising properly.

  • Page 33: Sterilization Time Table

    TEMP Cold Cold Start Start Start Start — — a. Unwrapped instruments, 16min. 11min. 1730 open glass or metal 27min. 13min. 2340 containers and any other 273ºF 30min. 14min. 2540 items where such (134ºC) 21min. 11min. 3140, temperature is suitable.
  • Page 34 Make sure you are using the correct times for your model machine. A hot start is any cycle that is begun within 1 hour of a previous cycle ending (including drying time). Note: These sterilization times are based on the unit being supplied the correct voltage, as indicated on the Technical Label attached to the outer cabinet.
  • Page 35 Note: The sooner the Multi-purpose valve is turned to Exh / Dry at the end of the sterilization cycle, the more effective and efficient will be the drying. • When the white needle on the pressure gauge has reached 0 psi the door can be opened. •...

  • Page 36: Service And Maintenance Instructions

    Should the need arise, technical assistance or a service technician can be requested by either calling your dealer or Tuttnauer USA. Note: Where daily maintenance is indicated this would only pertain to days the equipment is in use.

  • Page 37: Draining The Reservoir

    7.1.3 Periodically 1. Once every month, clean and check the safety valve (see sec. 7.5). 2. Replace the door gasket every 12 months, or as needed (see sec. 7.4). 3. Once a year, inspect the locking device for excessive wear. 4.

  • Page 38: Cleaning The Air Jet

    Cleaning the Air Jet (Located in the water reservoir.) A dirty air jet is the number one cause of failed spore tests The elimination of air from the sterilization chamber during heat up is critical to the proper operation of the autoclave. Failure of the air removal system will be responsible for incomplete sterilization, indicator strips that do not change color and failed spore tests.

  • Page 39: Replacing The Door Gasket

    Replacing the Door Gasket Pull off the gasket from the door groove. Install the new gasket as described in drawings 1, 2 and 3 below. Caution! This gasket is designed with a trapezoidal cross section. The gasket should be placed with the widest side towards the door.

  • Page 40: Checking The Safety Valve

    Checking the Safety Valve (Located in the water reservoir) To prevent the safety valve (6) from becoming blocked, it is necessary to allow the steam pressure to escape through the valve. This procedure should be done every month as follows: Run a sterilization cycle with a sterilization temperature of 273ºF according to the manual.

  • Page 41: Unclogging The Multi-Purpose Valve Or Fill Piping

    Unclogging the Multi-Purpose Valve or Fill Piping. Pour distilled water into the chamber, according to quantities mentioned in para. 4 (Installation Instructions). Close the door. Turn the multi-purpose valve to STERILIZE position. Move the main switch to the ON position. Turn the Thermostat knob to 273ºF (134ºC).

  • Page 42: Cleaning The Tabletop Autoclaves With Chamber Brite

    Chamber Brite is not for use on the Elara11 or any other pre/post vac autoclave. Use two packets of CHAMBER BRITE in Models 2840/3850/3870. Use half of a packet on all Model 1730 sterilizers. All other models use one packet. Clean every 20 cycles or as needed.
  • Page 51 TRAY HANDLE CT530020 For 1730, 2340, 2450 models only POUCH RACK CAT No. TYPE 2340 AR910 2540 3870 AR920 TRAY MODEL SIZE CAT. No. 1730 CU520010 2340 CT520010 2540 CT520010 TRY314-0001 3140 Small TRY314-0002 CF520010 3850 Small CF520020 CC520010 3870...
  • Page 52 TRAY HOLDER MODEL TRAY HOLDER CAT. NO. 1730 CU510010 2340 CT510010 2540 CV510010 3140 TRH314-0000 3850 CF510010 3870 CC510010...

  • Page 53: List Of Accessories

    LIST OF ACCESSORIES Cat. No. Description 1730 2340 2540 3140 3850 3870 Tray Handle, TTA — — — CT530020 CT530020 CT530020 1730, 2340, 2540 — — — Pouch Rack AR910 AR910 AR920 TRY314-0001 CF520010 CC520010 Tray CU520010 CU520010 CU520010 Small...
