AT&T CL84115 Quick Start Manual
Dect 6.0 corded/cordless telephone/answering system with caller id/call waiting
Hide thumbs
Also See for CL84115:
- Complete user's manual (130 pages) ,
- Quick start manual (2 pages) ,
- User manual (42 pages)
Related Manuals for AT&T CL84115
Summary of Contents for AT&T CL84115

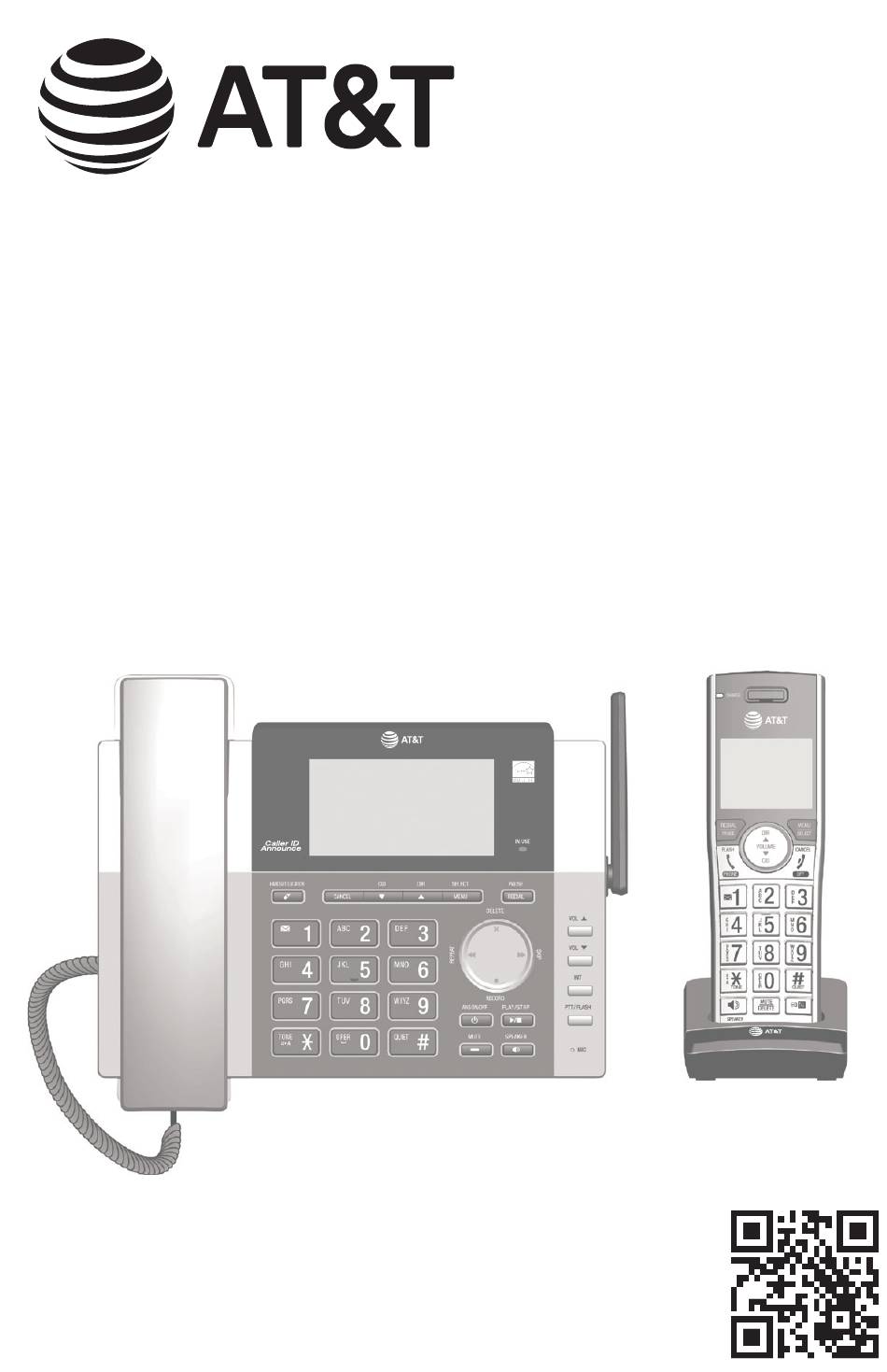

- Page 1 Quick start guide CL84115/CL84215/CL84265/ CL84365 DECT 6.0 corded/cordless telephone/answering system with caller ID/call waiting Scan the QR code for support information...
- Page 2 1 (866) 288-4268 or call . In Canada, dial Please refer to the online CL84115/CL84215/CL84265/CL84365 DECT 6.0 corded/cordless telephone/answering system with caller ID/ call waiting Complete user’s manual for a full set of installation and operation instructions at https://telephones.att.com/manuals .
-
Page 3: Important Safety Information
Important safety information This symbol is to alert you to important operating or servicing instructions that may appear in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. Safety information Read and understand all instructions in the user’s manual. - Page 4 Important safety information CAUTION: To prevent risk of fire or battery explosion, replace with the correct battery type. Dispose of used batteries according to the instructions. Disconnect the telephone line from the equipment before open the battery door. Do not use the battery in following conditions: High or low extreme temperature during use, storage or transportation.
- Page 5 Important safety information Nickel-metal hydride rechargeable batteries: Dispose of these batteries in a safe manner. Do not burn or puncture. Like other batteries of this type, if burned or punctured, they could release caustic material which could cause injury. The RBRC Seal means that the manufacturer is voluntarily participating in an industry program to collect and recycle nickel- metal hydride rechargeable batteries when taken out of service within the United States.
-
Page 6: Table Of Contents
Table of contents Important safety information ....................1 Install ................................5 Wall-mount installation (optional) ..................7 Handset overview ..........................8 Telephone base overview ......................11 Initial basic settings ........................13 Basic answering system setup via voice guide ............13 Line power mode (no AC power) ..................13 Date and time ..........................14 Record your own announcement ..................14 Number of rings..........................15... -
Page 7: Install
Install Telephone base Plug the large end of Plug one end of the the telephone base telephone line cord power adapter into into a telephone a power outlet not jack or a DSL filter. controlled by a wall Telephone switch. line cord If you have DSL Route the cords... - Page 8 Install Battery Install the battery, as shown below. Charge your handset(s) before initial use. The battery is fully charged after 10 The CHARGE light on the top of the handset is on hours of continuous charging. during charging. CHARGE light Caution: Use only the supplied rechargeable battery or replacement battery (model BT183342/BT283342).
-
Page 9: Wall-Mount Installation (Optional)
Wall-mount installation (optional) Pull the integrated wall-mount bracket and release it from the tabletop orientation. Rotate it down into wall-mount position and then push it into the telephone base until it clicks into place. Slide the handset tab upward. Rotate the handset tab by 180 degrees. The protruding edge of the handset tab holds the corded handset in place when the telephone is mounted on the wall. -
Page 10: Handset Overview
Handset overview CHARGE light On when the handset is charging in the telephone base or charger. qCID/VOLUME Press qCID to show caller ID log when the handset is not in use. Press to scroll down while in menus. While entering names or numbers, press to move the cursor to the left. - Page 11 Handset overview pDIR/VOLUME Press pDIR to show directory entries when the handset is not in use. Press to scroll up while in menus. While entering names or numbers, press to move the cursor to the right. Press to increase the listening volume when on a call, or to increase the message playback volume.
- Page 12 Handset overview Handset side view PUSH TO TALK Press to initiate a one-to-one or one-to-group broadcast. Press and hold to broadcast to a group of system devices. HANDSET 1 ANS ON MUTE MSG # 10:30 Handset display The battery icon flashes when the battery is low and needs charging.
-
Page 13: Telephone Base Overview
Telephone base overview IN USE indicator On when the telephone is in use, or when the answering Press and hold to set or to system is answering an incoming call. dial your voicemail number. On when a handset is being registered. Flashes when there is an incoming call or when all handsets are being deregistered. - Page 14 Telephone base overview X/DELETE While reviewing the caller ID log, the directory or the redial memory, press to delete an individual entry. While predialing, press to delete digits. During message or announcement playback, press to delete the playing message or announcement.
-
Page 15: Initial Basic Settings
Initial basic settings After you install your telephone or power returns following a power outage, the handset and telephone base will prompt you to set the date and time. To skip setting the date and time, press on the handset or CANCEL on the telephone base. -
Page 16: Date And Time
Initial basic settings Date and time Note: Set the date/time before using the answering system. Using a cordless handset or the telephone base: MENU -> Set date/time -> SELECT. -> 2. Enter the month (MM), day (DD) and year (YY) using the dialing keys -> SELECT. 3. -
Page 17: Number Of Rings
Initial basic settings Number of rings You can set the answering system to answer an incoming call after 2, 3, 4, 5, or 6 rings. You can also select toll saver. If you choose toll saver, the answering system answers a call after two rings when you have new messages, and after four rings when there are no new messages. -
Page 18: Voice Language
Initial basic settings Voice language Note: This feature is available in Canada version only. You can select the voice language (English or French) to be used for the voice prompts in your answering system and caller ID announce. Using a cordless handset: 1. -
Page 19: Operate
Operate Operation Steps Make a call Using a cordless handset: Press PHONE or /SPEAKER -> Enter the telephone number. Using the telephone base: /SPEAKER or lift the corded handset -> Enter the Press telephone number. On-hook dialing Using a cordless handset: PHONE or Enter the telephone number ->... -
Page 20: Directory
Directory The directory can store up to 50 entries, which are shared by all system devices. Operation Steps Add an entry -> Directory -> SELECT. -> -> Add contact -> SELECT. 3. Enter a telephone number up to 30 digits -> SELECT. SELECT. -
Page 21: Review And Dial A Number In The Call Log
Caller ID Review and dial a number in the call log -> to scroll through the list. /SPEAKER on the handset 2. When the desired entry displays, press /SPEAKER to to call. On the telephone base, lift the corded handset or press call. -
Page 22: Review Call Block List
Call block Review call block list MENU -> -> Call block -> SELECT. 2. SELECT again to choose Block list. SELECT again to choose Review. to browse through the call block entries. Save a caller ID log entry to call block list CID when the telephone is not in use ->... -
Page 23: Answering System
Answering system About answering system and voicemail Your telephone has separate indicators for two different types of voice messages: those left on the built-in answering system and those left at your telephone service provider’s voicemail. To listen to messages recorded on the built-in answering system, refer to the Message playback section;... -
Page 24: Turn Answering System On Or Off
Answering system Turn answering system on or off The answering system must be turned on to answer and record messages. Using a cordless handset: -> Answering sys -> SELECT. -> -> Answer ON/OFF -> SELECT. to choose On or Off-> SELECT. When the answering system is on, the handset shows ANS ON. -
Page 25: Message Playback
Answering system Message playback Using the telephone base /PLAY when the telephone base is in idle mode. Press Using a handset Press twice when the handset is in idle mode. Options during playback Feature On the telephone On a handset base Adjust playback to Press VOL... -
Page 26: For C-Ul Compliance
For C-UL compliance In compliance with the bilingual requirements for safety, caution, and warning markings of Canadian Federal and Provincial/Territorial statutes and regulations, the French version of Important safety information is included. Mesures de sécurité importantes Ce symbole vous alertera d’informations importantes ou d’instructions d’entretien pouvant apparaître dans ce guide d’utilisation. - Page 27 For C-UL compliance Remplacez les piles uniquement tel que décrit dans votre guide d’utilisation (Page 6). N’incinérez pas et ne percez pas les piles — elles contiennent des produits chimiques caustiques. L’adaptateur de courant est conçu pour être orienté verticalement ou installé sur le plancher.
- Page 28 For C-UL compliance Spécifiquement en rapport avec les téléphones sans fil Confidentialité : Les mêmes caractéristiques qui rendent les téléphones sans fil si pratiques créent également des restrictions. Les appels téléphoniques sont transmis entre le socle du téléphone et le combiné par le biais d’ondes radio, et il se peut que vos conversations téléphoniques soient interceptées par d’autres équipements de réception d’ondes radio au sein de la portée du téléphone sans fil.
- Page 29 For C-UL compliance Mesures préventives pour les utilisateurs de stimulateurs cardiaques implantés dans l’organisme Stimulateurs cardiaques (ne s’applique qu’aux téléphones sans fil numériques) : L’organisme ‘Wireless Technology Research, LLC (WTR)’, une firme de recherche indépendante, a mené une évaluation pluridisciplinaire des interférences entre les téléphones sans fil portatifs et les stimulateurs cardiaques implantés dans l’organisme.
-
Page 30: Fcc Part 68 And Acta
FCC Part 68 and ACTA This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX. -
Page 31: Fcc Part 15
Industry Canada This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. -
Page 32: Limited Warranty
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this telephone. - Page 33 3. How long is the limited warranty period? The limited warranty period for SynJ® and Syn248® products is TWO (2) YEARS from the date of purchase, while all other products limited warranty period is ONE (1) YEAR from the date of purchase. If we replace a Materially Defective Product under the terms of this limited warranty, this limited warranty also applies to replacement Products for a period of either (a) 90 days from the date the replacement Product is shipped to you or (b) the time remaining on the...
- Page 34 6. What must you return with the PRODUCT to get warranty service? 1. Return the entire original package and contents including the Product to the Advanced American Telephones service location along with a description of the malfunction or difficulty; 2. Include “valid proof of purchase” (sales receipt) identifying the Product purchased (Product model) and the date of purchase or receipt;...
-
Page 35: Technical Specifications
Technical specifications RF frequency band 1921.536MHz - 1928.448MHz Channels Telephone base voltage 6V or 5.9V DC @ 0.6A (AC adapter output) Max. PS1 or LPS Charger voltage 6V DC @ 0.4A (AC adapter output) Max. PS1 or LPS Handset battery 2.4V Ni-MH battery Operating times* Talk time (handset): up to 7 hours...
