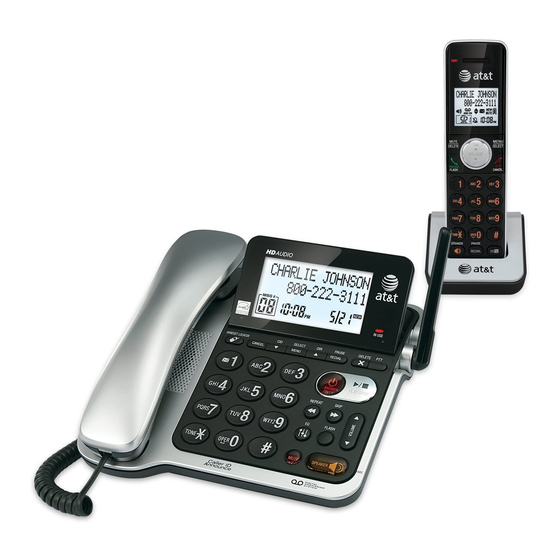

AT&T CL84102 Quick Start Manual

Quick start guide
CL84102/CL84152/CL84202/CL84252/CL84342/CL84352
This quick start guide provides you with basic instructions only.
For more complete instructions, refer to your Abridged user's
manual provided in the package, or see the online Complete
user's manual at www.telephones.att.com/manuals.
Telephone base installation
Plug the large end of the
Plug one end of the
telephone line cord into a telephone base power adapter
telephone jack or a DSL filter. into a power outlet not
controlled by a wall switch.
Telephone line cord
If you have DSL high-speed
Route the cords through
Internet service, a DSL filter
the channels.
(not included) is required.
Raise the antenna.
Plug the small end of the
Plug the other end of the telephone base power
telephone line cord into the adapter into the power
telephone jack on the back adapter jack on the back
of the telephone base. of the telephone base.
Charger installation
Route the handset
cord through its
Plug the power adapter
channel.
into a power outlet not
controlled by a wall switch.
One end of the coiled
handset cord has already
been plugged into the
handset. Make sure it is
Plug the other end of the
plugged in firmly.
coiled handset cord into
the jack on the back of
the telephone base.
Caution: Use only the power adapter provided with this product. To obtain a replacement, visit
www.telephones.att.com 1 (800) 222-3111
our website at or call
1 (866) 288-4268
Canada, dial .
Battery installation
Install the battery, as shown below. Charge your handset(s) before initial use.
The battery is fully charged after 10 hours of continuous charging.
Step 1 Step 2
Plug the battery connector securely into Align the cover flat against the
the socket inside the handset battery battery compartment, then slide it
compartment. Insert the supplied battery upwards until it clicks into place.
with the label THIS SIDE UP facing up,
as indicated.
CHARGE light
Step 3
Charge the handset
by placing it face
forward in the
handset charger. The
CHARGE light on the
top of the handset is
on during charging.
Use only the supplied rechargeable battery or replacement battery (model BT183342).
Quick reference guide - handset
CHARGE indicator
• On when the handset is
charging in the charger.
Cordless
CID/VOLUME handset
q
Press qCID to show caller
•
ID history when the handset
is not in use.
• Press to scroll down while
in menus.
• While entering names or
numbers, press to move the
cursor to the left.
• Press to decrease the
listening volume when on
a call, or to decrease the
message playback volume.
MUTE/DELETE
• During a call, press to mute
the microphone.
• When the handset is ringing,
press to mute the ringer
temporarily.
• While reviewing the caller
ID history, the directory or
the redial memory, press to
delete an individual entry.
• While predialing, press to
delete digits.
• During message or
announcement playback,
press to delete the playing
message or the recorded
announcement.
PHONE/FLASH
• Press to make or answer
a call.
. In
• During a call, press to answer
an incoming call when you
receive a call waiting alert.
• During message playback,
press to call back the caller
if the caller's number is
available.
1
• While reviewing a caller ID
log entry, press repeatedly
to add or remove 1 in front
/SPEA�ER SPEA�ER
of the telephone number
before dialing or saving it in
• Press to make or
the directory.
answer a call using
the speakerphone.
• Press and hold to set or dial
your voicemail number.
• Press to switch
between the
TONE
speakerphone and
the handset.
• Press to switch to tone
dialing temporarily during a
call if you have pulse service.
Cordless
handset
side view
PUSH TO TAL�
Press to initiate a one-to-one or
one-to-group broadcast.
Press and hold to broadcast to a group
of system devices.
Quick reference guide - telephone base
pDIR/VOLUME Large tilt display
Press pDIR to show Move the top of the display
•
directory entries when the forward or backward to adjust
handset is not in use. the angle of the screen for
maximum visibility.
• Press to scroll up while in
menus.
• While entering names or
numbers, press to move
the cursor to the right.
• Press to increase the
listening volume when on
a call, or to increase the
message playback volume.
MENU/SELECT
• When the handset is not
in use, press to show the
menu.
• While in the menu, press
to select an item or save
an entry or setting.
OFF/CANCEL
• During a call, press to
hang up.
• While in a menu, press to
cancel an operation, back
up to the previous menu,
or exit the menu display; or
Telephone base
press and hold this button
to exit to idle mode.
/HANDSET LOCATOR
• When the handset is
ringing, press to mute the While the telephone is idle, press to page all
ringer temporarily.
handsets.
• Press and hold while the
CANCEL
telephone is not in use
While in a menu, press to cancel an operation,
to erase the missed call
indicator. back up to the previous menu or exit the menu
display.
# (pound key)
Press and hold to go back to idle mode.
• Press repeatedly to display
When the telephone base is ringing, press to
other dialing options when
mute the ringer temporarily.
reviewing a caller ID log
entry.
q
CID
EQ
Press to display the caller ID history when the
telephone is not in use.
• During an outside call,
intercom call, message or
Press to scroll down while in menus and lists.
announcement playback,
While entering names or numbers, press to
press to change the audio
move the cursor to the left.
quality to best suit your
hearing.
/ANSWER ON/OFF
REDIAL/PAUSE
Press to turn the built-in answering system on or off.
• Press repeatedly to view
/PLAY/STOP
the last 10 numbers dialed.
Press to start or stop message playback.
• While entering numbers,
press and hold to insert a
/REPEAT
dialing pause.
During playback, press to repeat the playing message.
During playback, press twice to play the previous message.
/S�IP
Press to skip a message.
EQ
During an outside call, intercom call, message or announcement playback,
press to change the audio quality to best suit your hearing.
FLASH
During a call, press to answer an incoming call when you receive
a call waiting alert.
q/VOLUME/p
During message playback or call screening, press to adjust the listening
MIC
volume.
Microphone
While in idle mode, press to adjust the base ringer volume.
When on a call, press to adjust the listening volume.
MUTE
During a call, press to mute the microphone.
When the telephone is ringing, press to mute the ringer temporarily.
SPEA�ER
Press to make or answer a call using the speakerphone.
Initial settings
We recommend you program your telephone system before use.
IN USE indicator
The following are a few examples of common features to set before using the
On when the telephone is in use, or when the
telephone. Refer to the Handset and telephone base settings and Answering
answering system is answering an incoming call.
system settings in the Abridged user's manual or the online Complete user's
On when a handset is being registered.
manual for detailed instructions on setting all telephone features.
Flashes when there is an incoming call or
when all handsets are being deregistered.
Set date/time
Flashes when another telephone is in use on
the same line.
Set the date/time before using the answering system.
Using a cordless handset or the telephone base:
PTT 1. MENU -> q or p -> Set date/time -> SELECT.
2. Enter the month, day and year using the dialing keys -> SELECT.
Press to initiate a one-to-one or one-to-
group broadcast. 3. Enter the hour and minute using the dialing keys.
Press and hold to broadcast to a group of 4. q or p to choose AM or PM -> SELECT.
system devices.
Record your own announcement
X/DELETE
Your outgoing announcement plays when calls are answered by the answering
While reviewing the caller ID history, the
system. You can use the preset announcement to answer calls, or replace it
directory or the redial memory, press to
delete an individual entry. with your own recorded announcement.
While predialing, press to delete digits. Using a cordless handset or the telephone base:
During message or announcement
1. MENU -> q or p -> Answering sys -> SELECT.
playback, press to delete the playing
2. SELECT to select Announcement.
message or announcement.
3. q or p -> Record annc -> SELECT.
Press twice to delete all old messages
4. After the tone, speak towards the handset or telephone base to record your
when the telephone is not in use.
announcement. Press 5 to end recording.
MENU/SELECT
Number of rings
When the telephone base is not in use, press to
You can set the answering system to answer an incoming call after two, three,
show the menu.
four, five or six rings, or toll saver. If you choose toll saver, the answering
While in the menu, press to confirm or save an
entry or setting. system answers a call after two rings when you have new messages, or after
four rings when there are no new messages. This enables you to check for
p DIR
new messages and avoid paying unnecessary long distance charges if you are
Press to display the directory when the
calling from out of your local area.
telephone is not in use.
If you want the built-in answering system instead of the voicemail to answer a
Press to scroll up while in menus and lists.
call, you should set the answering system to answer a call at least two rings
While entering names or numbers, press to move
the cursor to the right.
before the voicemail is set to answer. Contact your telephone service provider
REDIAL/PAUSE
for information on your voicemail settings.
Press repeatedly to view the last 10 numbers dialed.
Using a cordless handset or the telephone base:
While entering numbers, press and hold to insert
1. MENU -> q or p -> Answering sys -> SELECT.
a dialing pause.
2. q or p -> Ans sys setup -> SELECT.
3. q or p -> # of rings -> SELECT.
4. q or p -> Choose among 2, 3, 4, 5, 6 or Toll saver -> SELECT.
Ringer volume
You can set the ringer volume level to one of the six levels or turn the
ringer off.
Using a cordless handset or the telephone base:
1. MENU -> q or p -> Ringers -> SELECT.
2. SELECT to select Ringer volume.
3. q or p to choose the desired level -> SELECT.
Reset language to English
If you have accidentally changed the screen display language and want to
switch it back to English, follow the steps.
Using a cordless handset or the telephone base:
• MENU in idle mode -> enter 364#.
