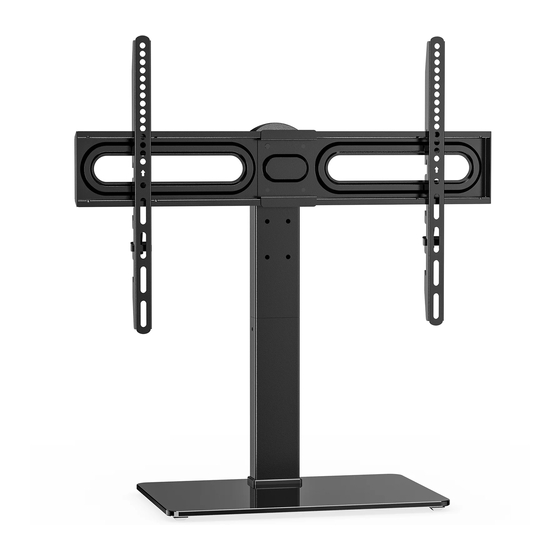

- Page 1 Table Top TV Stand TVDVD-5 30”-70” Min: 150x100mm 40kg Max: 600x400mm 88lbs RATED support@walielectric.com...
- Page 3 Supplied Parts List Base Support Pillar Support Pillar ① (×1) ② (×1) ③ (×1) TV Bracket TV Plate Connecting Plate Angle Adjuster ④ (×2) ⑤ (×2) ⑥ (×1) ⑦ (×1) Bolt M6×30mm Washer M6 Nut Bolt M6×50mm D6 Washer Bolt M6×10mm A (×3) B (×1) C (×4)
- Page 4 Step 1 Tear off the protective paper to attach Foot Pads I near the bottom four corners of the Base ① as image shown. ① ① Step 2 Connect two Support Pillar ② & ③ . Then insert 4pcs Screws E through the holes of Support ②...
- Page 5 Step 3 Put Base ① on the table; put Washer B and M6×30mm Bolts A on the base; put Plastic ① Cover F and Support Pillar ③ under the base. Then tighten the bolts A using Allen Key ③ 4mm J1 . Table ①...
- Page 6 Step 4 2. Connect TV Plate Unit to Support Pillar ② at your desired position (three options) using Bolts D1 ② and Washers D2 . Tighten them using Allen Key 4mm J1 . ② Note: TV Plate should be installed with the ARROW mark pointing UPWARDS.
- Page 7 Step 5 Step 5.1 Step 5.2 Select TV Screws Select Spacers ( if needed ) Step 5.3 Attach the TV Brackets Attach the TV Brackets ④ to the back of TV using TV screws, washers and spacers. ④ M-A M-B ④...
- Page 8 Step 6 Choose the appropriate position (three options) for your TV. Hang your TV with brackets onto the TV plate. Put the Safety Lock G in place and tighten the fixing screw to the TV plate securely. Note: 45mm Three choices for height adjustment.
- Page 9 Step 7 Attach Wire Clips H into the holes of Support Pillar ② & ③ . ② ③ Guide the cable through the Wire Clips H . ② ③...
-
Page 10: Tilt Adjustment
Adjustments Swivel Adjustment Refer to the below illustrations to adjust swivel angle. -20° +20° Note: When the TV Stand is placed against the wall, the actual swivel angle is determined by the Wall screen size. Tilt Adjustment (If necessary) 0° Loosen 4 tilting bolts by MAXIMUM 1 turn using Wrench J2 . -
Page 11: Product Dimensions
Product Dimensions 633mm/24.92" MAX:600mm/24" MIN:150mm/6" MAX: +5° 400mm/16" MAX: MIN: 781mm 100mm/4" /30.75" 110mm MIN: /4.33" 581mm /22.87" 0° 571mm /22.48" 16mm /0.63" 40mm 70mm 139mm /1.57" /2.76" /5.47" 45mm/1.77" 45mm/1.77" 280mm 434mm /11.02" /17.09" 130mm /5.12" +20°/-20° 420mm/16.54"... - Page 12 We support the technology that brings your home to life. We offer high quality products, professional customer service, and extensive technical support. If you have any questions,please contact us. 1-844-SATTLER (18447288537) support@walielectric.com www.walielectric.com...
