1.2 Hardware Overview
The router case preview is shown in Figure 1. A short description of hardware parts of the
router is listed in Table 1, including the links to the chapters with a detailed description.
#
Item/CaptionType
1
LEDs
-
2
RST
-
3
PWR
2-pin
4
ETH0,
RJ45
ETH1
5
WiFi
R-SMA
6
DIN clip
-
7
Grounding
M3
screw
8
SERIAL |
10-pin
I/O
terminal
9
Wall clips
-

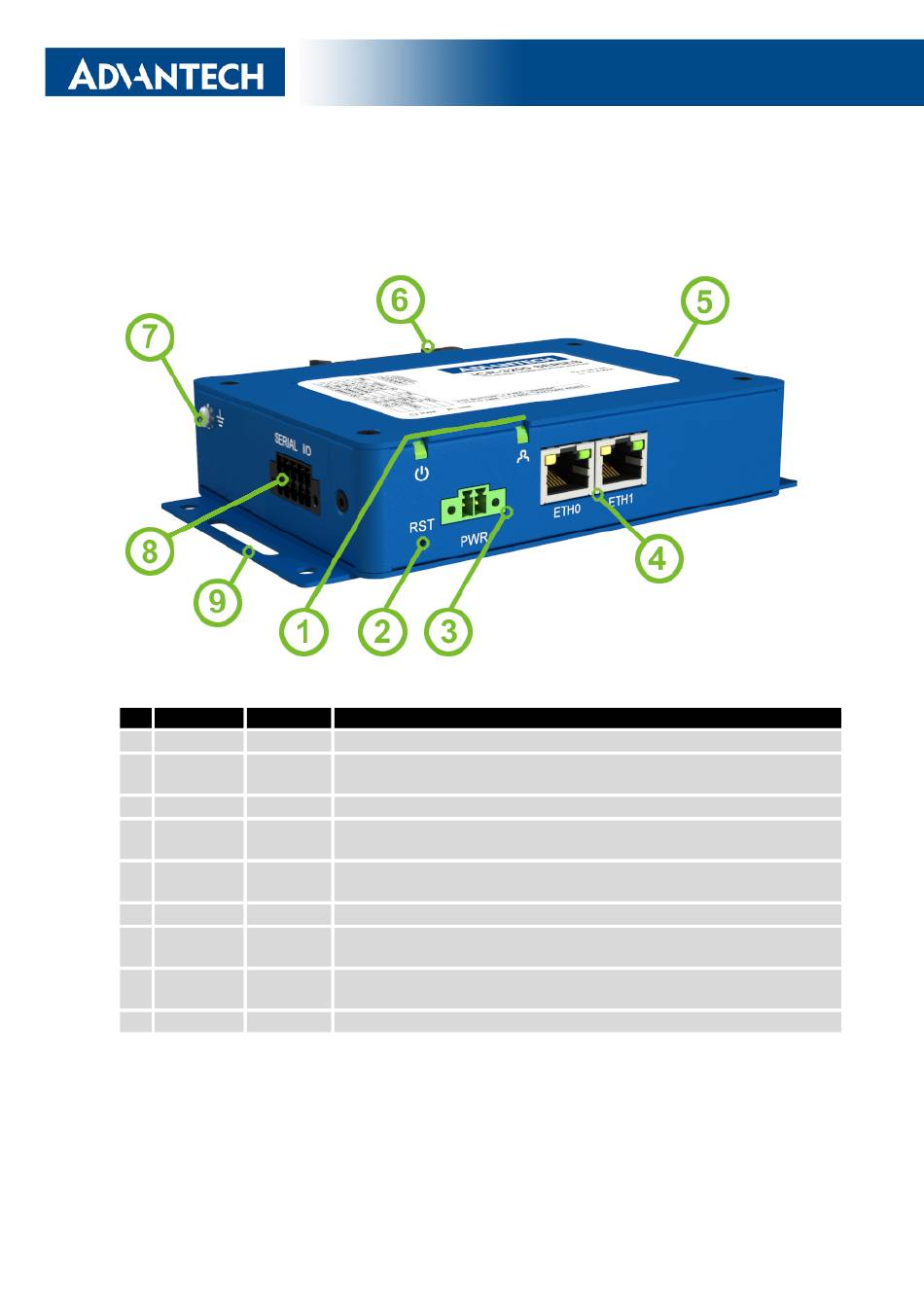

Figure 1: Hardware Overview of the Router
Description
Status LED indication; see Chapter 2.6.
Button to reboot the router or to restore the default
configuration; see Chapter 2.7.
Power supply 2-pin terminal socket; see Chapter 2.3.
100 MB Ethernet connection for the firts and second LAN; see Chap-
ter 2.2.
Two connectors for the WiFi antennas. See Chapter
mation and Chapter
DIN rail clip, included as standard accessories; see Chapter 1.10.
Pay attention to proper grounding; see Chapter 2.3.
RS232, RS485, binary inputs, and binary outputs interfaces. See Chap-
ter
2.5
for more information.
Wall mounting clips, included as standard accessories; see Chapter 1.9.
Table 1: Hardware Overview of the Router
3
4.4
for WiFi parameters.
ICR-3201
2.1
for more infor-
