1. Product Overview

1.3 Hardware Overview

In this chapter, all components of the router case are described, including links to chapters that provide
more details.
# Item/Caption
1 GND Screw
2 LEDs
3 RST
4 PWR
5 ETH0, ETH1
6 USB
7 Serial & I/O
8 ANT, DIV,
GNSS
9 WIFI
ICR-4233 Hardware Manual

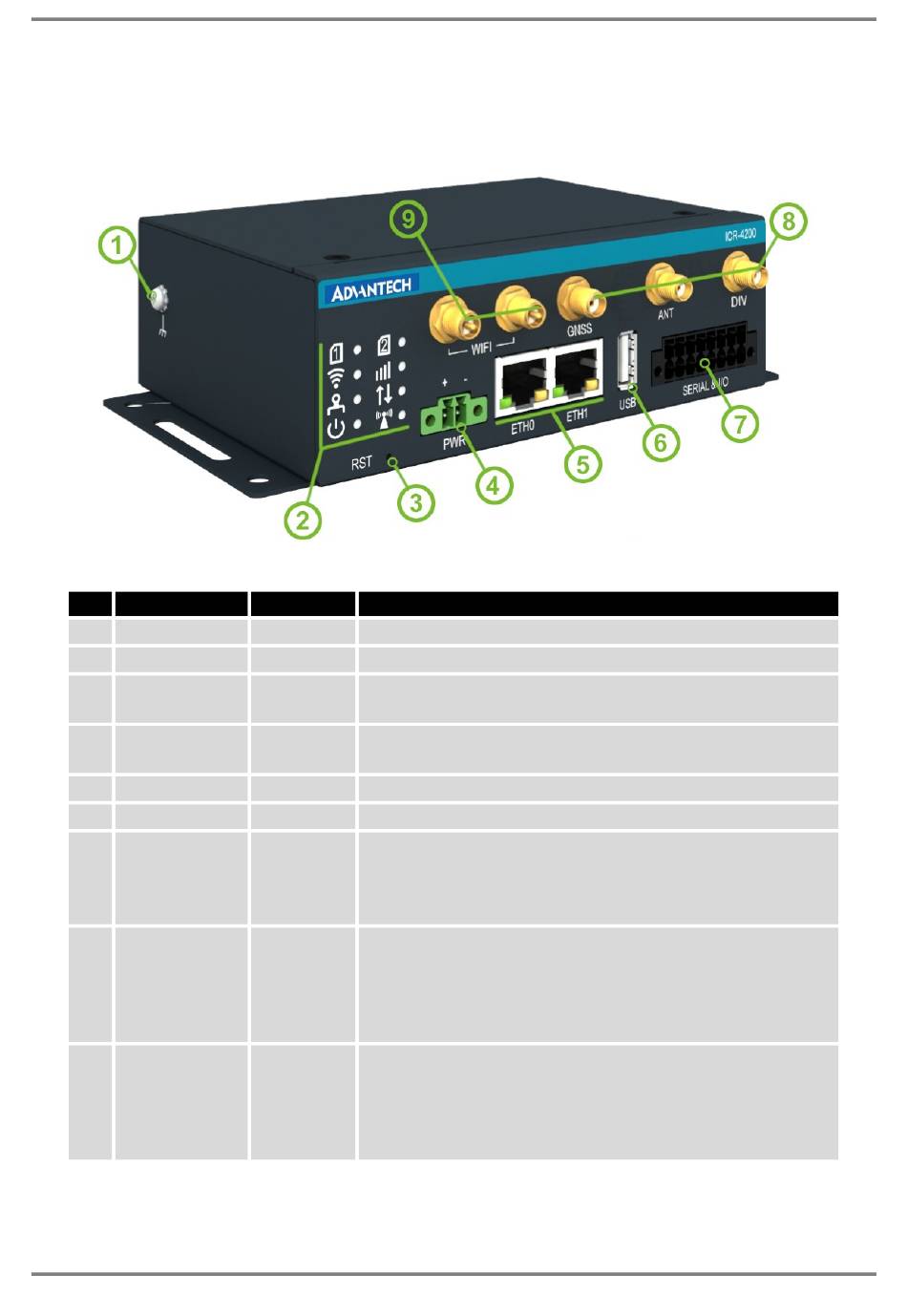

Figure 5: Router Hardware Overview: Front View
Type Description
M3 Ensure proper grounding; refer to Chapter 2.5.
— Status LED indicators; see Chapter 2.11.
— Button to reboot the router or restore default settings; see
Chapter 2.12.
2-pin Power supply socket; see Chapter 2.5.
terminal
RJ45 1 Gb Ethernet LAN interfaces; see Chapter 2.4.
USB-A USB 3.0 host port; see Chapter 2.9.
16-p term. Two switchable RS232/RS485, 4 digital inputs, and 2 dig-
ital outputs interfaces. See Chapter
ter 4.8 for I/O parameters, and Chapter
face settings.
SMA Connectors for both the main and diversity antennas of the
female cellular module, in addition to one connector for the GNSS
antenna. Refer to Chapter
cellular module parameters, and Chapter
parameters.
RP-SMA Connectors for the WiFi antennas. See Chapter
female more information and Chapter
The WiFi connector located on the right-hand side can be
used for a Bluetooth antenna; see Chapter
information and Chapter
Table 1: Router Hardware Overview: Front View
1.3 Hardware Overview
2.8 for details, Chap-
4.9 for serial inter-
2.2 for details, Chapter
4.5
4.6 for WiFi parameters.
2.3
4.7 for Bluetooth parameters.
4.4 for
for GNSS
2.2 for
for more
