Thank you for choosing the Manual Tab-Tension Pro Series projection screen! This tab-tensioned manual
screen utilizes our CineWhte® UHD-B and performs best in light-controlled rooms. It has earned the
renowned ISF Certification for accurate color reproduction in a dark room environment.
In order for the CineWhite® UHD-B to maintain its projection qualities and optimum performance please
refer to the list below for proper maintenance and cleaning.
• Use a dry microfiber cloth to remove dust from the screen's surface.
• When cleaning, use a damp microfiber cloth with warm water to remove any marks.
• Never rub or apply pressure when cleaning the surface.
• Never attempt to use any solutions, chemicals or abrasive cleaners on the screen surface.
• To avoid damaging the screen, avoid touching it directly with your fingers, pens/pencils or any
other sharp or abrasive objects.
Please be sure to read the precautions and operating instructions carefully before operating the screen.
Proper maintenance and handling will ensure a longer lifespan of the product.
Note: Wall screws included with this product are complementary and may not be adequate for all mounting surfaces.
Consult with a professional installer or hardware store for proper mounting screws and anchors.
Regardless of the mounting method, the screen should be securely supported so that the vibration or pulling on the
viewing surface will not cause the screen case to become loose or fall. The installer must ensure that proper
mounting hardware and the fasteners used are of adequate strength and suitable for the mounting surface.

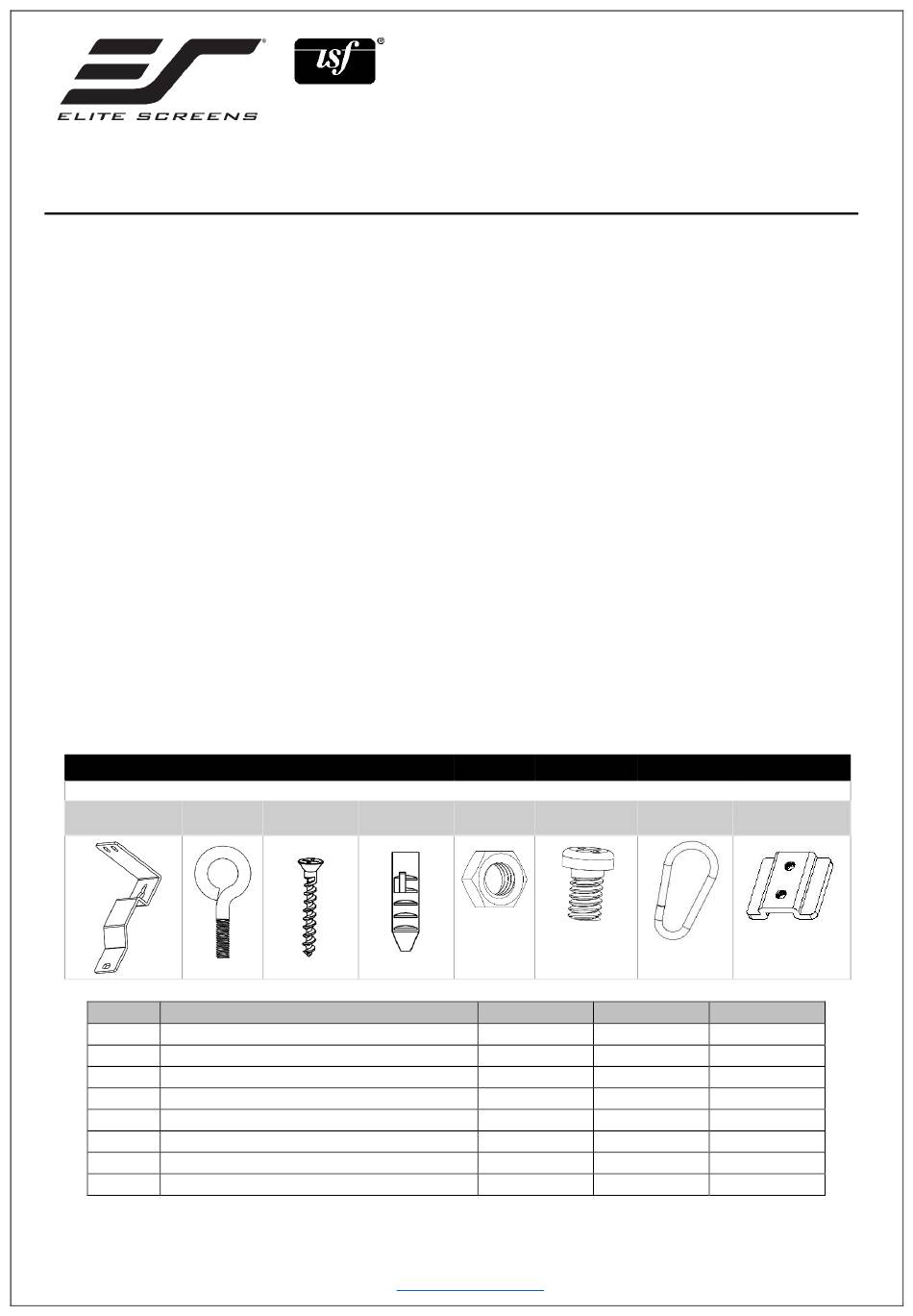

Hardware Parts List
Please make sure all parts listed below are included before proceeding with the installation.
A. Wall Bracket B. Eyebolt C. 5x50 Wall
Item
A
Wall Bracket
B
Eyebolt
C
5x50 Wall screws
D
Drywall anchors
E
M5 Nut
F
M5 Screws
G.
Snap link
H.
Bracket connector (installed on housing)
09142022JA
Matte White Manual Pull-Down Projector Screen
D. Drywall
Screws
anchors
Part List
www.elitescreens.com
Manual Tab-Tension 2 Series |
User's Guide – M Type
E.M5 Nut F. M5 Screws G. Snap link
106" Screen
125" Screen
2
2
4
4
2
4
2
2
CineWhite® UHD-B
H. Bracket
connector
140" Screen
2
3
2
3
4
6
4
9
2
3
4
6
2
3
2
3
U00259
V1.0
