Thank you for choosing the Manual Tab-Tension 2 Series projection screen!
Please be sure to read the precautions and operating instructions carefully before operating
the screen. Proper maintenance and handling will ensure a longer life-span of the product.
Note:
Wall screws included with this product are complementary and may not be adequate for all mounting
surfaces. Consult with a professional installer or hardware store for proper mounting screws and anchors.
Regardless of the mounting method, the screen should be securely supported so that the vibration or pulling
on the viewing surface will not cause the screen case to become loose or fall. The installer must ensure that
proper mounting hardware and the fasteners used are of adequate strength and suitable for the mounting
surface.
Hardware Parts List
Please make sure all parts listed below are included before proceeding with the installation.
A. Mounting Bracket
E. Nut
Item
Part List
A
Mounting Bracket
B
Eyebolt
Drywall Anchor
C
Screw
D
E
Nut
F
Washer
Rev. 070119-BR

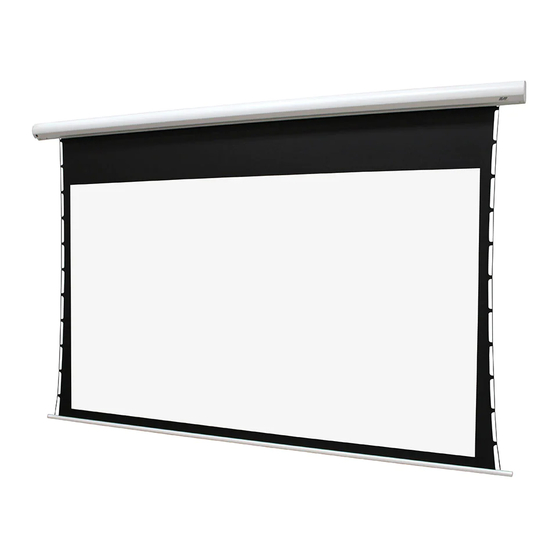

Manual Tab-Tension 2 Series
Tensioned Manual Pull-Down Projector Screen
B. Eyebolt
F. Washer
106" Screen
110" Screen 125" Screen 140" Screen
2
2
2
2
6
6
6
6
4
4
4
4
1
User's Guide
C. Dry-wall Anchor and
D. Screw
2
3
2
3
6
9
6
9
4
6
4
6
www.elitescreens.com
Advertisement
Table of Contents
Related Manuals for Elite Screens Manual Tab-Tension 2 Series
Summary of Contents for Elite Screens Manual Tab-Tension 2 Series
- Page 1 Tensioned Manual Pull-Down Projector Screen User’s Guide Thank you for choosing the Manual Tab-Tension 2 Series projection screen! Please be sure to read the precautions and operating instructions carefully before operating the screen. Proper maintenance and handling will ensure a longer life-span of the product.
- Page 2 Manual Tab-Tension 2 Series Tensioned Manual Pull-Down Projector Screen User’s Guide Installation Instructions For installation assistance, please consult a professional Installer. Elite Screen is not liable for faulty installations. A. Flush Wall Mount 1. Determine where the screen will be installed. Mark the screw hole locations, drill the holes and insert the dry- wall anchor (C).
- Page 3 Manual Tab-Tension 2 Series Tensioned Manual Pull-Down Projector Screen User’s Guide 3. Un-screw the screw on the Bracket, attach the screen into the Mounting Bracket, then screw the screw to make sure the case slot is securely attached to the Mounting Bracket.
- Page 4 Manual Tab-Tension 2 Series Tensioned Manual Pull-Down Projector Screen User’s Guide 1. Pull the screen down from the lanyard or from the handle only in a 90-degree angle. Do not attempt to pull the screen down by the surface or touch the screen, as it will damage the screen and void the warranty.
- Page 5 Turn the Allen Wrench counter clockwise and the screen will lose tension. Please note this adjustment is not necessary as the tension of the screen has been set to its factory setting for best performance. Please contact Elite Screens for assistance to avoid damaging the screen and voiding your warranty.
