  • Page 1 202-09-10 SAUNA REFLECTION Art.nr 2900 4940...

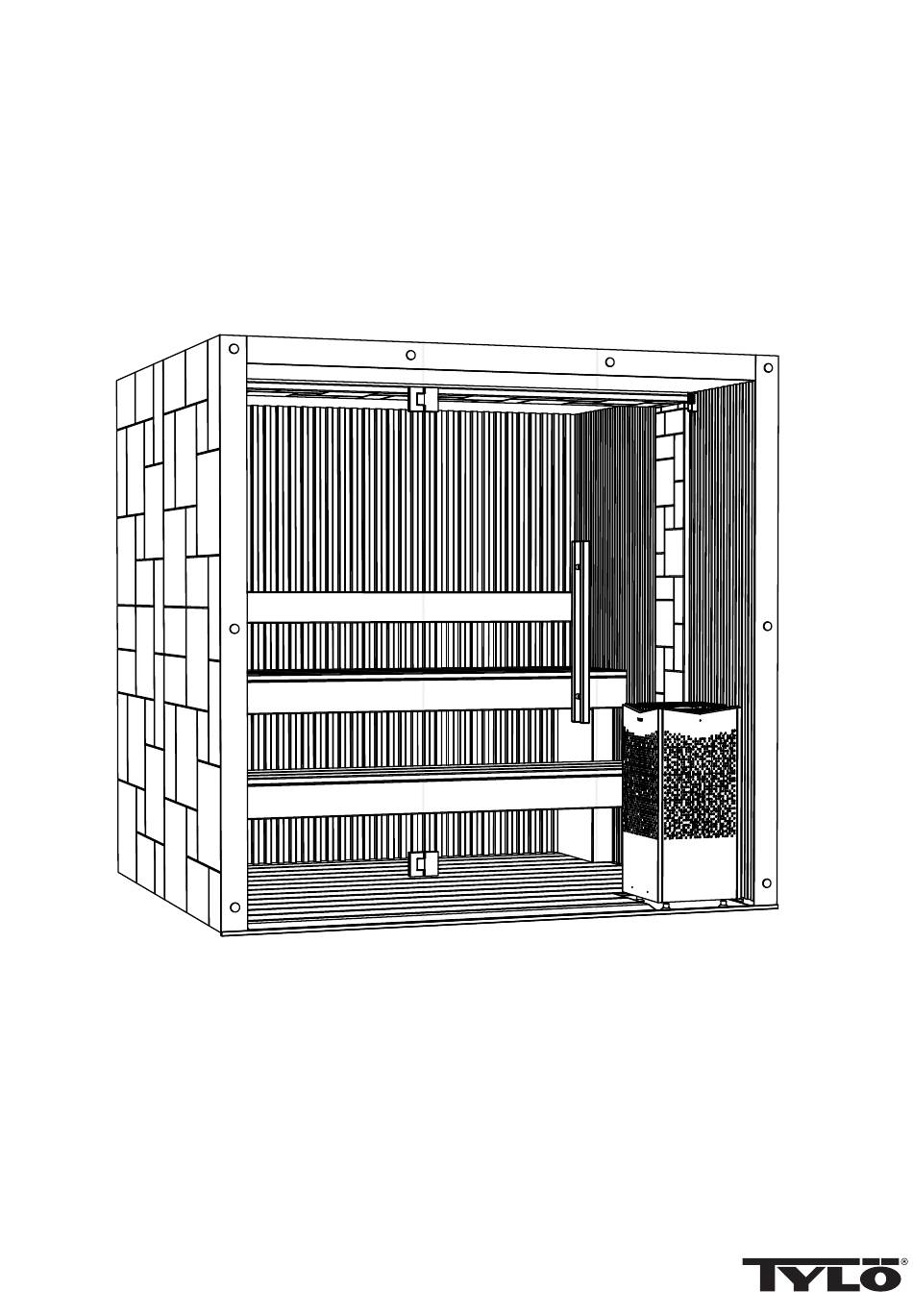

  • Page 2 SAUNA REFLECTION Sauna360® congratulates you on your decision to enjoy the finest sauna available... Welcome to the growing family of Tylö sauna owners. Before you begin reviewing the manual, please take a moment to register your warranty. Doing so will assist us in contacting you for any important notification.
  • Page 3 Information Wall numbering The walls are numbered on the side. The corresponding number is on the layout. Example: Reflection 225x200 CAUTION The walls, ceiling and glass are heavy. Two people are needed to assemble the room..
  • Page 4 Information Warning! Handle with care! Protect edges and corners from knocks and impacts. Tip! Use as a protection when handling the glass wall. Handling and care of Grey boards Dampen a soft cloth with clean water and wipe down the surface. For “difficult”...
  • Page 5 Information 13mm 16mm Tx10 TX20 TX25 30mm 32mm 35mm 1/4" Ø 2 42mm 60mm 80mm Wood profile Green plastic distances EPDM foam pieces Cable Holder Dia. 15 mm 13x5mm...
  • Page 6 Wireset 1 Wireset 2 Front Floor Frame EPDM Foam Strip Floor frame x3 Handle...
  • Page 7 Layout Reflection Rib 225x200 2260 A3.5 2052x598 2052x446...
  • Page 8 Layout Reflection Rib 180x200 1796 1588x598 1588x446...
  • Page 9 Note! The dimensions and illustrations provided in these instructions are based on a 225x200 mm sauna room. Your actual dimensions may vary. Min. 30mm Floor frame Mains Min. 30mm Mains Pay attention to the cut outs NOTE: For best results, ensure the floor is flat and level where the sauna room will be installed.
  • Page 10 Optional floor: Floor height is 35 mm. When installing the floor, make it level. Assemble the two floor parts together and fasten with 4 screws If not using the floor, jump to step 6. 19mm 25mm 30mm 30mm...
  • Page 11 Roll out the vinyl floor centered in the middle, in the front, edge to edge. NOTE: The smoother surface up. The vinyl is a little shorter and should not stick out outside the floor frame.
  • Page 12 Mount the front profile edge to edge with the front of the floor and on the sides. Fasten with 3 screws in the 3 holes Inside Front 19mm...
  • Page 13 Assemble the floor frame (see page 7). Put it centered on the floor, push it against the front profile. This will give perfectly perpendicular angles for the room assembly. Screw through the top oblong holes from above into the frame and through the vinyl mat. This will give a water barrier as well as hold the vinyl in place.
  • Page 16 The wall must be placed edge to edge with the floor frame profile.
  • Page 17 Note: Wall 3.5 only in Reflection 225x200.
  • Page 18 The wall must be placed edge to edge with the floor frame profile.
  • Page 19 The ceiling should lie against the mdf which is on the back of the Ceiling walls. Wall...
  • Page 20 Place the front ceiling so that it lines up with the front wall. Ceiling Wall...
  • Page 21 35mm Screw the two ceilings together in the space for the ceiling portal. Back ceiling Front ceiling...
  • Page 22 32mm Check that the front roof and front walls line up with each other. Ceiling Wall Screw the fastening plate with 4 screws between the front ceiling and wall. Do it on both sides.
  • Page 23 Put first the upper large bench in place. Put the lower smaller bench in place.
  • Page 24 Screw on the spacer behind 80mm the backrest Light cord on the right hand side Put the wood profiles in place on the left and right wall. View under the bench...
  • Page 25 Put the backrest in place and route the cable in the wood profile on the right side. Center the backrest. Hold it down while securing with the 60 mm screw. Hold down while securing with the 60 mm screw. 60mm...
  • Page 26 Assemble the top portal in the ceiling. Use the support if needed. Place a piece of cardboard or similar in between to protect the portal. Align the roof portal so that it is centered on both sides. 32mm...
  • Page 27 TIP! Fold up the benches and put both high. This will make the electrical installation easier.
  • Page 28 Connection scematic Low voltage 0. Control Box CB-23 5. Control Panel 0. RJ45 Heater LED 6. LED in Heater 1. Light Splitter 8-port 7. High Limit Heater 2. Bluetooth BT-6 8. Temp Sensor 3. T-splitter Right Portal LED 4. T-splitter Left Portal LED Left Portal Backrest Right Portal...
  • Page 29 Mount the plate with the control box, push it upwards, screw the four screws in the corners. Lay out the two subsets of wiring on the floor, in the corners of the walls/floor. Long subset (CB-box and left portal) Short subset (between CB-box, Right portal and heater. 32mm Note: Use the small EPDM foam pieces to temporarily...
  • Page 30 Connect the RGBW Backrest, RGBW from the left and right Portal into the 8-port splitter marked #1 (Rj45) Speaker cables into the BT-6 box marked #2 Connect RBGW from heater to the Rj45 adaptor. 0 - CB-Box 1 - 8-port splitter 2 - BT-6 Bluetooth RGBW Backrest RGBW Heater...
  • Page 31 Open the the lid to the CB-box with the four screws. Connect cables into the CB-box marked #0 Control panel cable (RJ11) into CN1 High limit cable (2-pin) into CN5 Temp sensor cable (4-pin) into CN4 Use the rubber grommet to the right side to route the three cables. CB 23-1 Box 208-240 VAC 1 Phase Connection T1 T2 GND...
  • Page 32 Un snap the the cover from the tempsensor with a flat-tiped screw driver. Connect the sensor cable from wire set 2 on the PCB sensor (4-pin)(#8) Use the two provided screws to mount the sensor on the bracket, then snap the cover back in place.
  • Page 33 Place the right portal (no control panel) close to the right trench. Connect the speakers (#2). Connect the RGBW (#3). Cables to heater 13mm (high limit and RGBW) TIP! Screw a cable holder to secure the cables in the trench before hanging the portal.
  • Page 34 Place the left portal (control panel) close to the left trench. Connect the speakers (#2) (click contact). Connect the RGBW (#4) (RJ45). Connect the control panel (#5) (RJ11). 13mm TIP! Screw a cable holder or two, to secure the cables in the trench before hanging the portal.
  • Page 35 Place the grey foam gaskets on both sides of the ceiling portal.. Black gasket downwards 42mm...
  • Page 36 Take away the small EPDM foam pieces, that was used temporarily and replace it with the long strips. Start in a corner and then cut to the right lenght. This to protect and hide the wire harness and get a water barrier. Let the two cables to the heater stick up.
  • Page 37 NOTE! It is important that walls and ceiling are perpendicular, 90 . It is also important that the dimensions are the same between the side walls both at the top and bottom. L1=L2 D1=D2 100x5mm 30mm (Use 5-6 on each side) Hide the nail head with a black marker pen Tip! Use a nail gun if available.
  • Page 38 Edge to edge with ceiling top Floor Edge to edge with ceiling top...
  • Page 39 Put the black U-profile (if not already in place on the optional floor) so it is flush with the black front trims. Inside...
  • Page 40 The door can be mounted right- or left-hung. Glass placement Warning! Alt. 1 Alt. 2 Glass - handle with care! Hinges-right Hinges-left The edges of the glass should be protected from knocks and impacts. Polish the inside of the glass where the glass meets the wall before mounting.
  • Page 41 The glass should be mounted edge to edge with the black frame. Put two thin green plastic layers into the profile to protect the glass. If needed put in more green thin plastic layers in the profile to get the glass in position. Glass Edge to edge with black frame Floor...
  • Page 42 32mm Ø 2...
  • Page 43 70 6m m 32mm Measure between the side glasses both top and bottom so that the measurements are the same. The opening must be 6mm wider than the door glass.The glass can be adjusted a few millimeters vertically and laterally if you loosen the screws a little.
  • Page 44 32mm Repeat steps 1-5 on the previous page.
  • Page 45 HINGES GLASS-GLASS Side glass Mount the hinges on the side glass Flush fitting Outside Inside Gasket Gasket Gasket hard - black Gasket Gasket Plastic edge gasket Gasket hard - black Glass Add more gaskets if necessary to make sure that the screws tighten enough.
  • Page 46 Tip! Distance block Height approx. 26mm Door glass Add gaskets on the hinges and put the door glass on the hinges. Then put the plastic gasket into Plastic gasket place. IMPORTANT!! Close the door slowly and make sure the doorglass doesn’t hit the side glass. Door glass Side glass Ca: 26mm...
  • Page 47 Adjust the hinges if the door doesn’t close entirely use the Allen wrench to adjust the door For more information - scan the QR code on the hinge box. Counter Clock Wise Outside Clock Wise Side glass Door Inside Clock Wise Outside Counter Clock Wise Door...
  • Page 48 13x5mm Tip! Use soap water or something similar. Fill the threshhold with the EPDM foam tube Inside Dia. 15 mm...
  • Page 49 Mount the handle Door glass Outside Inside...
  • Page 50 Exterior Cladding There are claddings for both sides of the room. If the room is placed close tona corner, it is difficult to manage to mount the inner cladding.
  • Page 51 Regardless of which side of the room the exterior cladding is to be on, the board with a groove along the entire edge is placed towards the front (groove in the middle). 13mm 140mm 140mm Mount the plates on the exterior cladding Back side...
  • Page 52 Hang the exterior cladding in place. The bracket should fit in the groove in the ceiling. Place the front panel against the wall flush with the front Secure it with extra screws if needed to get the panel flush to the glas 13mm Ceiling Ceiling...
  • Page 53 Fasten with a few screws in the traces of the exterior cladding. Make sure that the screw ends up in a wooden plank, see drawing below. 42mm 30mm 35mm 20mm 60mm Back side Front side 50mm Meeting exterior cladding...
  • Page 54 Put the ventilation board in place...
  • Page 55 Field wiring. Route the mains to the CB-box through the back floor frame. Route the mains cable from the CB-box to the heater in the right side floor frame. If needed loose the EPDM-foam so the mains cables route nicely. Mains Power Cable Heater Power Cable...
  • Page 56 Connect the mains cable into the CB-box. See more details in the instruction manual from the CB-box. CB 23-1 Box 240 VAC 1 Phase Connection T1 T2 GND 208-240 VAC Power Supply (RJ11) 12 VDC CN10o CN7o CN5o CN4o CN11o 1 2 3 4 L1 L2 GND Ext.
  • Page 57 Open first the back, un screw the two hidden screws (torx 20). Or use a flat tipped (3.5 mm) screw driver. Tilt the panel and lift it off. Warning plate on right side Back...
  • Page 58 Open the lower hatch, (tx 20). Connect the heater, see heater installation instructions for detailed information.
  • Page 59 Connect the heater Mains, cut open the strain relief and secure the cable. Click in the Rj45 cable into no. 6, use the rubber grommet. Connect the high limit into Terminal no. 7, use the strain relief on the back. Crown UB Heaters 1804-60-1902, 1804-83-1902 High Limit...
  • Page 60 Close the hatch and put back the back panel. Unscrew the two black screws on the sides. Fill the rock compartment. Secure the rock guard with the screws. Put the heater in position. Center it and minimum 50 mm from the back wall. Push back the EPDM foam strips, if needed cut out an opening to fit the mains cable.
  • Page 61 Put the floor grating i place. Start with piece a middle piece. Tilt it down behind the portal and slide it under the portal. Order to lay in the floor gratings...
  • Page 62 Take the inner piece (no support that is sticking out) and push it to the back. Take one more middle piece and fill the gap. Last put down the front piece around the heater. Order to lay in the floor gratings...
  • Page 63 Mount the magnets to the cover with the two screws and hang it into place. Fold down the benches.
  • Page 64 Enjoy your Sauna and stay hydrated.
