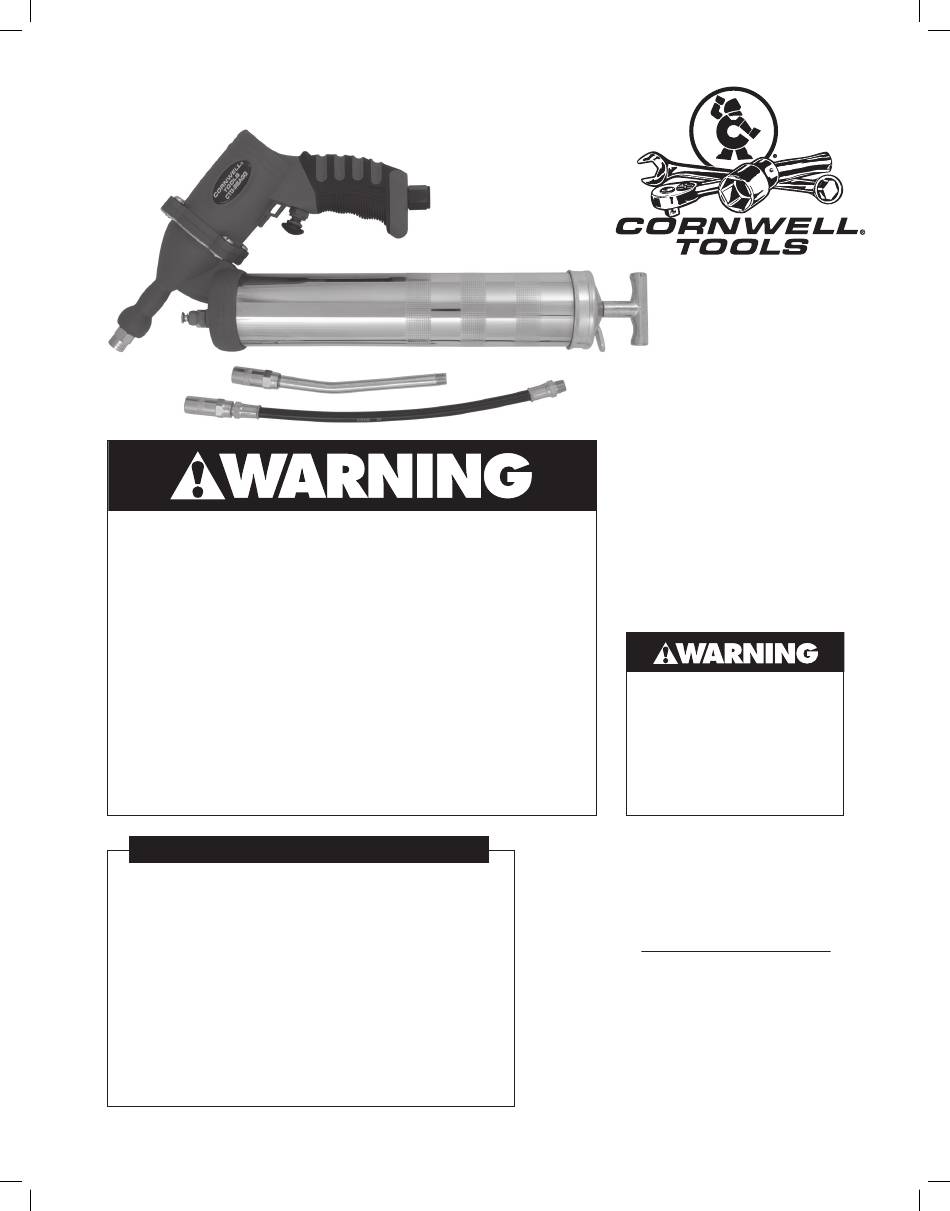

Cornwell Tools CTG-SSAGG Operating Instructions

Operating Instructions • Warning Information
FOR YOUR SAFETY AND TO PREVENT INJURY:
EXTREME PRESSURE MAY CAUSE WHIP HOSE TO BURST. USE ONLY APPROVED HOSES AND
FOLLOW THE HOSE INSTRUCTIONS AND WARNINGS.
THIS AIR OPERATED GREASE GUN CAN DEVELOP HIGH PRESSURES - UP TO 3,600 PSIG.
USE SAFETY GLASSES AND GLOVES WHILE OPERATING THE GUN. KEEP HANDS CLEAR
OF THE EXPOSED RUBBER PORTION OF THE HOSE WHILE OPERATING THE GUN WITH HOSE.
IF FLUID APPEARS TO PENETRATE THE SKIN, SEEK IMMEDIATE MEDICAL ATTENTION.
DO NOT TREAT AS A SIMPLE CUT.
BE SURE THE TRIGGER IS NOT DEPRESSED WHEN ATTACHING THE GUN TO AN AIR INLET HOSE.
AVOID ACCIDENTAL STARTING.
HOLD THE HOSE ONLY BY THE METAL SPRING GUARDS ON THE END.
DO NOT ALLOW THE HOSE TO KINK. DO NOT BEND THE HOSE IN A TIGHT RADIUS.
REPLACE THE HOSE AT FIRST SIGN OF WEAR, KINK OR DAMAGE TO THE OUTSIDE JACKET.
USE ONLY HIGH PRESSURE GREASE GUN HOSE AS A REPLACEMENT.
Pump Ratio (max): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40:1
Output per Stroke: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 ml
Pneumatic Inlet Pressure (min): . . . . . . . . . . . . . . . . . 40 PSIG
Pneumatic Inlet Pressure (max): . . . . . . . . . . . . . . . . 100 PSIG
Grease Output Pressure: . . . . . . . . . . . . . . . . . . . . . .3,600 PSIG
Grease Reservoir Capacity: . . . . . . . . . . . . . . . . . . . . . . . 14 oz
Operating Temperature Range: . . . . . . . . . . . . . . . . . . 14˚-104˚
Weight (empty): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2 lbs
Lubricant up to NLGI: . . . . . . . . . . . . . . . . . . . . . . . . #2 Grease
Pneumatic Port Inlet: . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" NPT
Grease Port Outlet: . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/8" NPT
CTG-SSAGG
CTG_SSAGG_manual_061507.indd 1
• Parts Breakdown

SPECIFICATIONS

The pistol-style, Single
Shot Air Grease Gun is a
specially designed, high
quality, professional air
tool for automotive, truck
and industrial applications.
High pressure hazard.
Wear safety goggles.
Do not exceed 60 psi with hose or
90 psi with solid extension. To do
so may cause personal injury.
CTG-SSAGG
Single Shot Air

FOR YOUR SAFETY
AND TO PREVENT INJURY:
Grease Gun
06/5/07
