Advantech 98910770500 Startup Manual

98910770500 4x GbE PoE Advanced Flex I/O
Startup Manual

Packing List

Before you begin installing your card, please make sure that
the following items have been shipped:
1. 98910770500 Flex I/O
2. 4 x M3 screw
3. 1x 4x GbE PoE FIO cover
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe)

Software Installation

The driver of 98910770500 is provided on 98910770500
product page. Please download it and install.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://advt.ch/MIC7FIO000
This manual is for the 98910770500 Series Rev. A1.
Part No. 2041077020
Printed in China
P/N: 1930005673-11
PN: 1960094142N001
1st Edition,
July 2020

Specifications

General

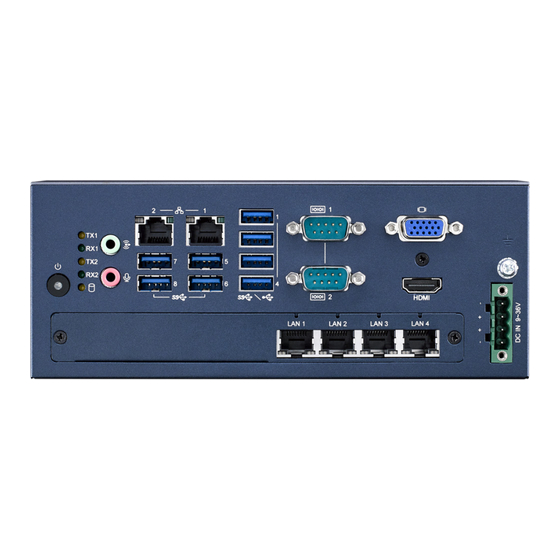

98910770500: 4x GbE PoE Flex I/O
• Support 4x GbE PoE
• Chipset: 1x Intel i350 Ethernet controller
• Interface : B/B connector, 1x PCIe x4 for Intel i350
• LAN speed: 10/100/1000 Mbps
• PoE Output Power: Max. 10W per port (Total Max. 40W),
802.3.af PoE Compliant
• Support PoE on/off control
• PoE LED Status Indicators:
- PoE power on, status normal: LED On
- PoE power status abnormal (port over load, port short
circuit, port failed at startup): LED 0.8Hz Blink
- PoE power off: LED Off
Supports Model: MIC-770
* Q SKU only.
• Operating Temperature: -10 ~ 40° C with 0.7 m/sec air flow:
with Industrial SSD
• Storage Temperature: - 40 ~ 85° C (-40 ~185° F)
• Relative Humidity: 95% @ 40° C (non-condensing)

Mechanical and Environmental

• Dimensions (L x W): 169 x 156 mm
• Net Weight: 0.09 Kg

Connectors

P/N Connector
98910770500 RJ45

Declaration of Conformity

This device complies with the requirements in Part 15 of
the FCC rules. Operation is subject to the following two
conditons:
1. This device may not cause harmful interference;
2. This device must accept any interference received,
including interference that may cause undesired opera-
tion.
98910770500 Startup Manual 1
Function
CH1~4
