Advantech WISE-4210 Startup Manual

WISE-4210
Industrial LPWAN SUB-G Wireless I/O Module
Startup Manual
Overview
Thank you for purchasing the WISE-4210 module. This
quick start guide is intended to help you deploy your new
module. The guide contains basic information on the power
and application wiring.
Should you require additional instructions, please refer to
the user manual.
Input Power Requirements
The WISE-4210 is designed for a standard industrial
unregulated 24 V power supply. For some applications,
DC
it can also accept +10 to +50 V
peak-to-peak power ripple. The immediate ripple voltage
should be between +10 and +50 V
used as an alternative power source.
Packaging List
• 1 x WISE-4210 module
• 1 x Mounting bracket
• 1 x Quick start manual
• 1 x China RoHS declaration (UA series only)
• 1 x Antenna (UA series only)*
*For NA series, antennas should be ordered respectively
per required frequency range
** WISE-S200 I/O module should be ordered respectively

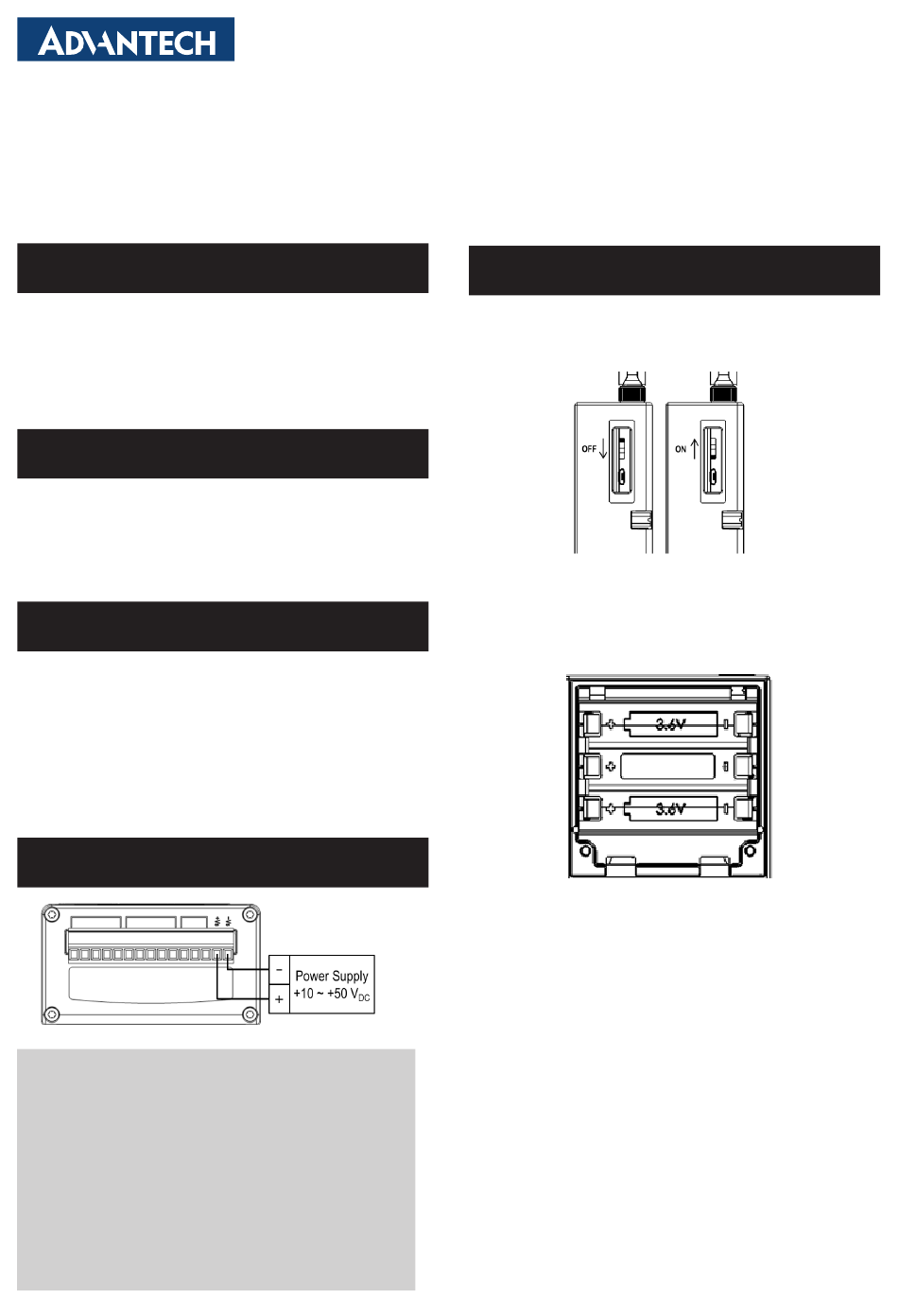

Power Supply Wiring
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service:
https://www.advantech.com/support/
This startup manual is for WISE-4210.
Part No. 2003421052
Printed in Taiwan
power input with 200 mV
DC
. Batteries may also be
DC
Edition 3
October 2019
Battery
Open the rubber cover on the side of WISE-4210 nodes,
there is a battery switch to turn on or turn off the battery
power supply.
The module accepts 3 x AA, 3.6 V lithium battery. The bat-
teries should be installed facing the same direction.
WISE-4210 Startup Manual 1
